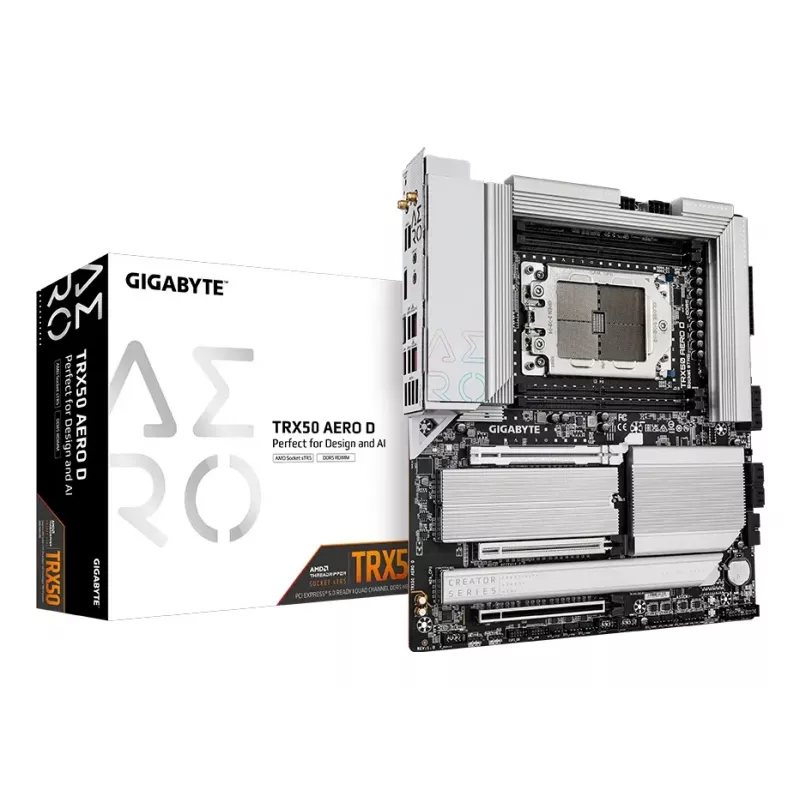

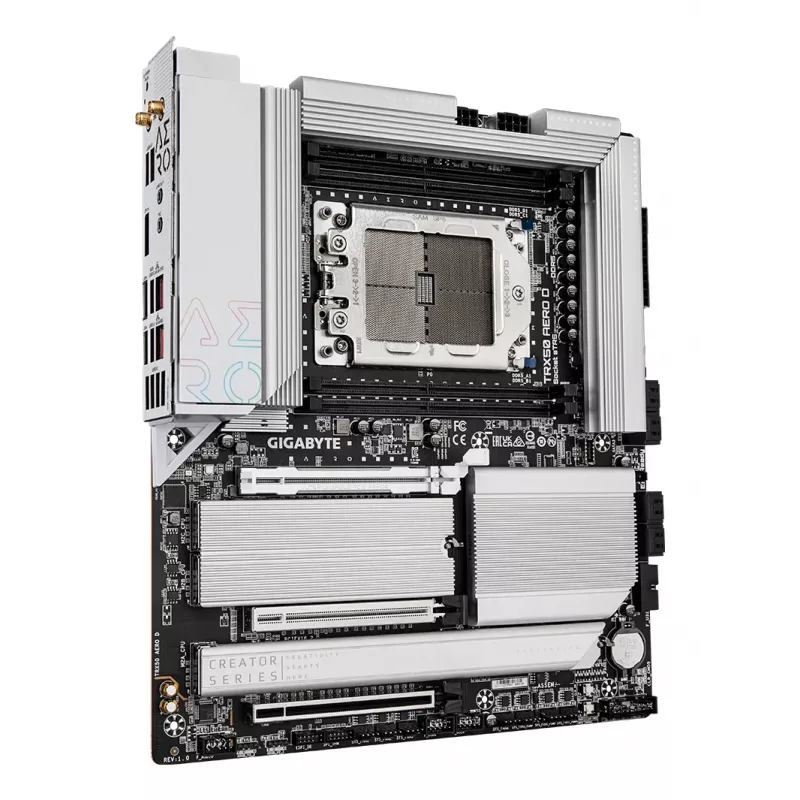

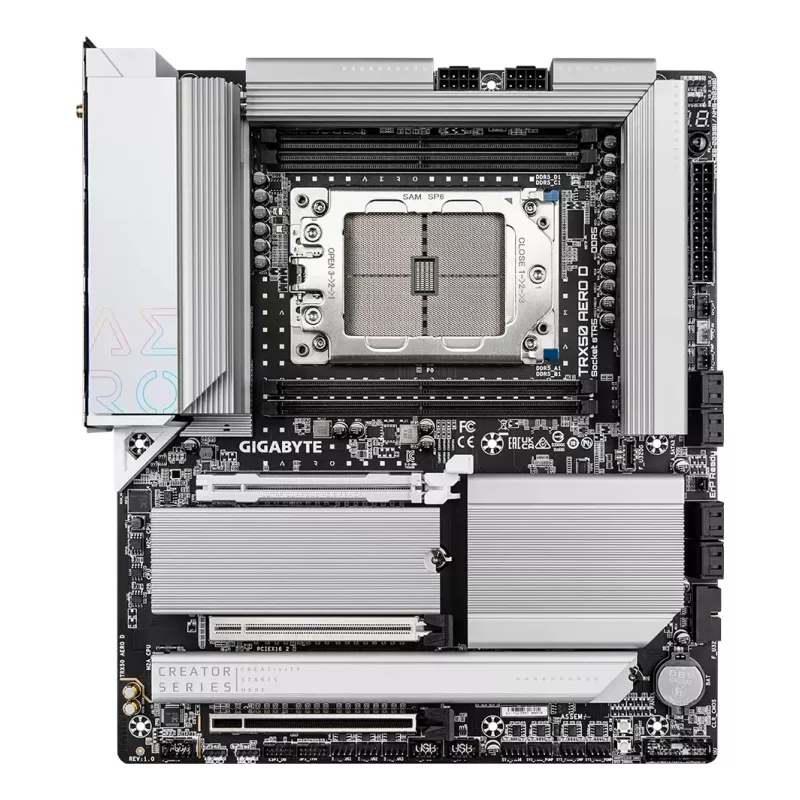

GIGABYTE TRX50 AERO D Motherboard - Supports AMD Ryzen Threadripper 9000 Series CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB4

GIGABYTE TRX50 AERO D Motherboard - Supports AMD Ryzen Threadripper 9000 Series CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB4
GIGABYTE TRX50 AERO D Motherboard - Supports AMD Ryzen Threadripper 9000 Series CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB4
GIGABYTE TRX50 AERO D Motherboard - Supports AMD Ryzen Threadripper 9000 Series CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB4
36 mo.
GIGABYTE TRX50 AERO D Motherboard - Supports AMD Ryzen Threadripper 9000 Series CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB4
GIGABYTE TRX50 AERO D Motherboard - Supports AMD Ryzen Threadripper 9000 Series CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB4
GIGABYTE TRX50 AERO D Motherboard - Supports AMD Ryzen Threadripper 9000 Series CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB4
R12,473
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your... Read More
Stock 1 Code 130080 Brand GIGABYTE Model TRX50 AERO D Warranty 3 Years

Shipping & Returns

Estimated delivery Thursday, October 8
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

GIGABYTE TRX50 AERO D Motherboard - Supports AMD Ryzen Threadripper 9000 Series CPUs, 16+8+4 Phases Digital VRM, up to 7800MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0 M.2, Wi-Fi 7, 10GbE LAN, USB4. Processor manufacturer: AMD, Processor socket: Socket sTR5, Compatible processor series: AMD Ryzen Threadripper 1000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 1 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: SSD, RAID levels: 0, 1, 10. Ethernet interface type: 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7.... Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD

Key Highlights
  • Supports AMD Ryzen Threadripper PRO 7000 series/ Ryzen Threadripper 7000 series Processors
  • Breakthrough Performance:16+8+4 Phases Digital VRM Solution
  • Quad Channel DDR5:4*SMD R-DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • Reinforced Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Ultimate Scalibility: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
  • Next-gen Connectivity: Dual USB4 Type-C ports
  • Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
  • PCIe UD Slot X:PCIe 5.0 x16 slot with 10X strength for graphics card
  • EZ-Latch Click:M.2 heatsinks with screwless design
  • EZ-Latch Plus:M.2 slots with quick release design
  • Hi-Fi Audio with DTS:X Ultra:ALC4080+ALC897 CODEC
  • UC BIOS:User-Centred intuitive UX with Quick Access function
  • AMD Socket sTR5 AMD Ryzen Threadripper 1000 Series
  • PC Extended ATX AMD TRX50 Realtek ALC4080 2.0 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 1 TB
  • SSD M.2, SATA RAID support Number of storage drives supported: 12
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
  • 10 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.3
Specifications
ACPI version
5.0
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC4080
Audio connector
Yes
Audio output channels
2.0 channels
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.3
Bundled software
Norton Internet Security (OEM version), LAN bandwidth management software
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Compatible processor series
AMD Ryzen Threadripper 1000 Series
Component for
PC
Country of origin
China
CPU fan connector
Yes
Depth
264 mm
Desktop Management Interface (DMI) version
2.7
DirectX version
12.0
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
ECC
EPS power connector (8-pin)
Yes
Ethernet interface type
10 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
HDMI ports quantity
0
Headphone outputs
2
Height
35 mm
Lithium weight per battery
0.07 g
Maximum internal memory
1 TB
Maximum internal memory supported by processor
1 TB
Maximum number of SMP processors
1
Memory channels
Quad-channel
Memory slots type
DIMM
Motherboard chipset
AMD TRX50
Motherboard chipset family
AMD
Motherboard form factor
Extended ATX
Number of battery cells
1
Number of chassis fan connectors
10
Number of HDDs supported
8
Number of M.2 (M) slots
4
Number of memory slots
4
Number of SATA III connectors
8
Number of storage drives supported
12
Package depth
294 mm
Package height
80 mm
Package weight
3.04 kg
Package width
345 mm
PC health monitoring
Fan, Temperature, Voltage, Water cooling
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
2
PCI Express x16 slots
3
Processor manufacturer
AMD
Processor socket
Socket sTR5
Product colour
Black
Products per shipping (inner) case
1 pc(s)
RAID levels
0, 1, 10
RAID support
Yes
RGB LED pin header
Yes
Supported memory clock speed (max)
7800 MHz
Supported memory clock speeds
4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB, 64GB, 128GB, 128MB, 256MB
Supported memory types
DDR5-SDRAM
Supported storage drive interfaces
M.2, SATA
Supported storage drive types
SSD
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Total number of SATA connectors
8
USB 2.0 connectors
2
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB 3.2 Gen 2x2 connectors
1
VGA (D-Sub) ports quantity
0
Warranty period
3 year(s)
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Width
305 mm
Windows operating systems supported
Windows 11 x64

Manual

Open Manual

Leaflet

Open Leaflet
