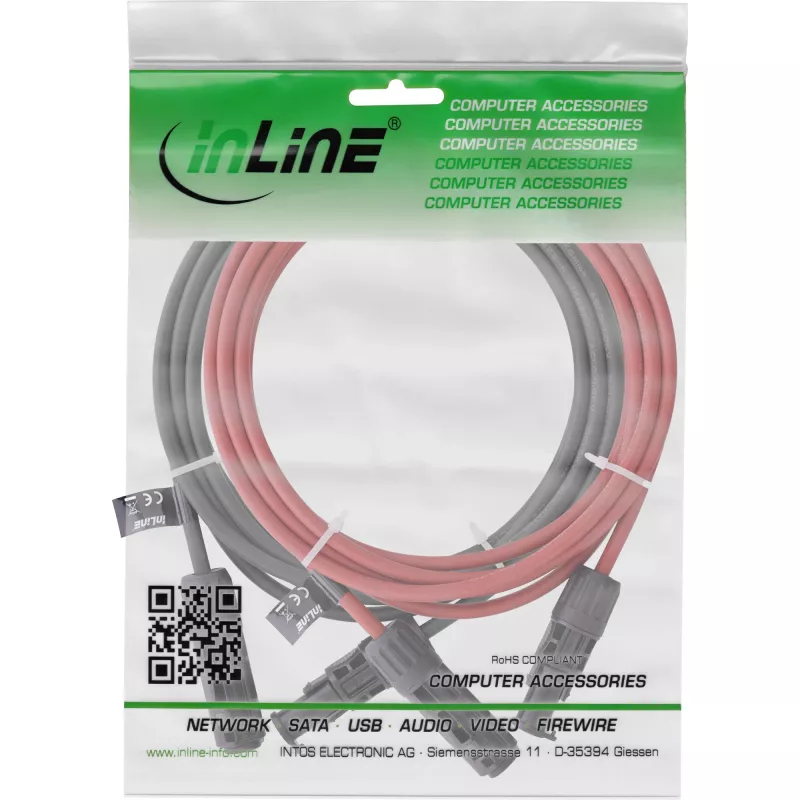

Medium voltage cable InLine 95610 Red Black 1500V 1m 0.7mm

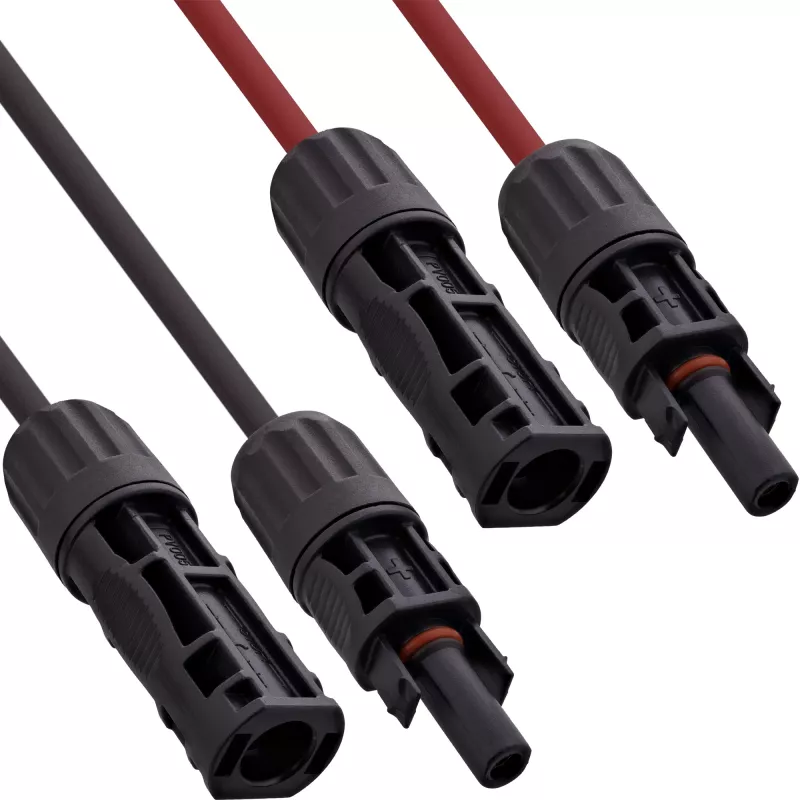

The InLine 95610 medium voltage solar cable, 6mm² with integrated solar plug set (red and black), is designed for reliable cabling of photovoltaic systems and for applications up to 1500V. Constructed with a 0.7mm thickness and durable insulation, this 1 m cable provides stable power transmission and long-term mechanical resistance. It is intended for use where a robust, weather-resistant connection between PV modules and inverters or junction boxes is required. Note on wire cross-section: the required cross-section depends on current and cable length; consult a solar technician if unsure.

Advantages

The cable combines a solid conductor size (6mm²) with a compact diameter to deliver efficient current flow while minimizing voltage drop. Its durable insulation and integrated solar plugs ensure safe, polarity-marked connections (red/black) suitable for outdoor PV installations. The product meets requirements for medium-voltage PV applications up to 1500V and offers consistent mechanical and weather resistance for prolonged service life.

Suitable for

• Cabling of photovoltaic (PV) modules and strings
• Connections between PV arrays and inverters or combiner/junction boxes
• Short runs and installations requiring 1 m pre-assembled leads

Key specifications

• Manufacturer: InLine
• Model / MPN: 95610
• Conductor cross-section: 6 mm²
• Voltage rating: up to 1500 V
• Length: 1 m
• Insulation thickness: 0.7 mm
• Colours: red and black (set)
• EAN: 4043718334728

How to use

Install the InLine 95610 cable by connecting the red and black solar plugs to the corresponding positive and negative PV terminals, ensuring correct polarity. Route the cable to avoid sharp edges and excessive bending; secure it with appropriate clamps or cable ties. Make all connections with the system powered down and follow local electrical codes. Verify voltage rating compatibility and conductor sizing for the intended string length and current before energising the system.

Recommendations

Choose the correct wire cross-section based on expected current and cable run length; for complex or long runs consult a qualified solar technician. For outdoor installations, periodically inspect connectors and insulation for wear or degradation and replace components as needed.
