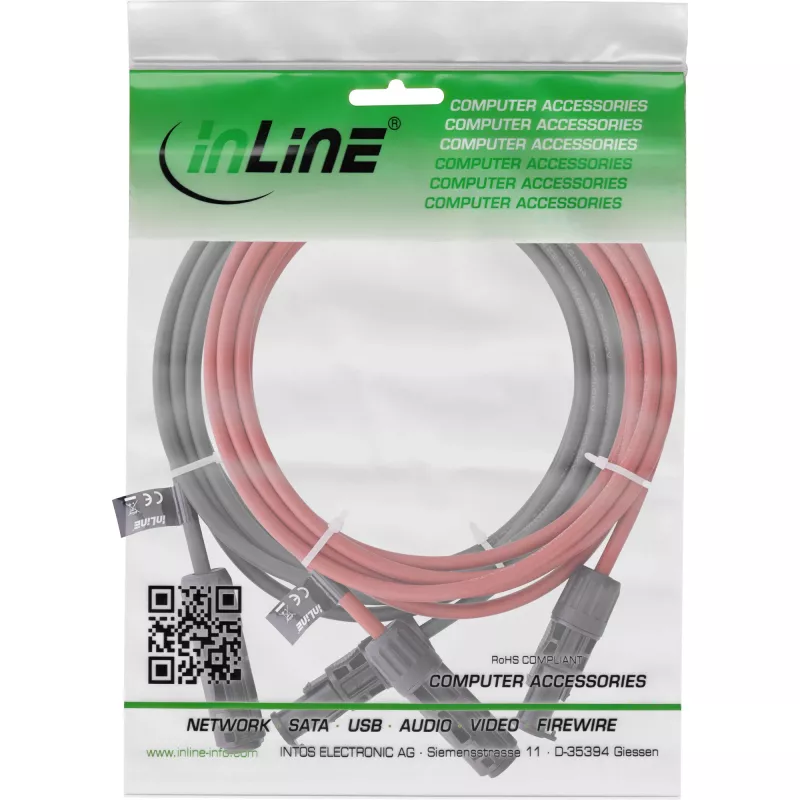

Medium voltage cable InLine 95405 Red Black 1500V 1m

The InLine 95405 solar cable H1Z2Z2-K, 4 mm², supplied as a pair with solar plugs (red and black), is designed for wiring photovoltaic systems and for reliable medium-voltage connections up to 1500 V. With a conductor cross-section of 4 mm², insulation thickness of 0.7 mm and an overall diameter of approximately 5.5 mm, the cable provides robust construction and long-term electrical performance for PV installations and related power transmission tasks.

Advantages

The cable combines a standardized H1Z2Z2-K solar cable design with InLine build quality for durability and safe operation. It is supplied as a matched red/black pair with pre-attached solar plugs for straightforward polarity identification and quick, secure connections. The 1500 V rating and suitable insulation thickness support use in modern photovoltaic arrays while the 4 mm² conductor cross-section balances current capacity and flexibility.

Suitable for

• Wiring photovoltaic (PV) modules and string connections
• Medium-voltage DC connections within solar arrays (up to 1500 V)
• Short runs and interconnections where a 1 m cable length is required

Key specifications

• Model: InLine 95405 (H1Z2Z2-K)
• Conductor cross-section: 4 mm²
• Rated voltage: 1500 V DC
• Length: 1 m
• Insulation thickness: 0.7 mm
• Outer diameter: approx. 5.5 mm

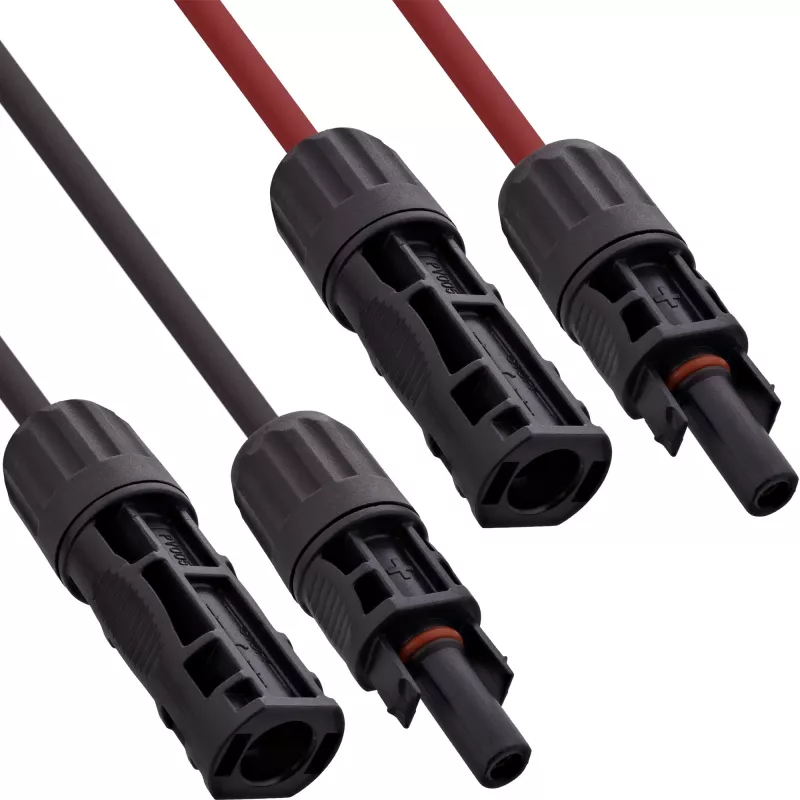

• Colours: Red and Black (pair with solar plugs)
• Weight: 0.301 kg

How to use

Verify required conductor cross-section and cable length for your installation based on system current and run distance. Connect the red and black cable ends to the positive and negative terminals of PV modules or combiner boxes, observing correct polarity. Use the supplied solar plugs to make secure, weather-resistant connections. Route the cable following local electrical codes and secure it to avoid mechanical strain or abrasion. For installations involving longer runs or higher currents, calculate voltage drop and select an appropriate cross-section accordingly.

Recommendations

Choose the wire cross-section according to current and cable length; if unsure, consult a qualified solar technician to confirm the correct sizing and installation practice.
