Medium voltage cable InLine 95601 Red Black 1500V 1m 0.7mm

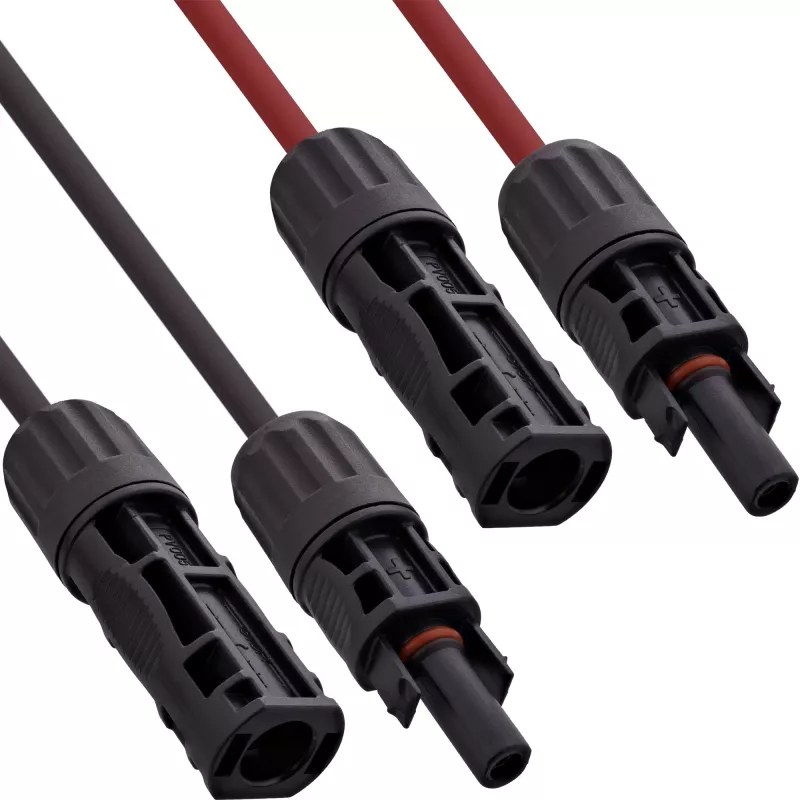

The InLine 95601 medium voltage cable (6mm²) with an integrated solar plug set (red and black) is designed specifically for cabling photovoltaic systems. It supports a maximum operating voltage of 1500 V and has robust insulation to ensure long-term reliable power transmission for PV installations. The 1 m length and 0.7 mm insulation thickness provide a compact, durable connection solution for solar modules and inverters.

Advantages

The cable offers a durable construction and technical properties suited for photovoltaic applications, including a high maximum operating voltage of 1500 V, colour-coded red and black conductors for easy polarity identification, and compact dimensions that facilitate installation. Its design focuses on safe and efficient power transmission to help maintain system performance over time.

Suitable for

• Cabling between solar panels and combiners or inverters
• Short-run DC connections within rooftop photovoltaic installations
• Repair or replacement of existing PV connector leads

Key specifications

• Manufacturer: InLine, model 95601
• Cross-section: 6 mm²
• Maximum operating voltage: 1500 V
• Length: 1 m
• Insulation thickness: 0.7 mm
• Colours: Red and Black
• Diameter: 6.3 mm; Width: 21 mm
• Weight: 0.104 kg
• EAN: 4043718334674

How to use

Connect the red and black cable ends to the corresponding positive and negative terminals of the solar modules, combiners or inverters using the supplied solar plugs, ensuring correct polarity. Route the cable to avoid sharp edges, excessive bending or heat sources and secure it with appropriate clamps or ties. Observe local electrical codes and the manufacturer's installation instructions when integrating the cable into the PV system.

Recommendations

Choose the wire cross-section and cable routing according to the current and cable length for your installation; if in doubt, consult a qualified solar technician to confirm the correct cross-section and to ensure compliance with safety standards.
