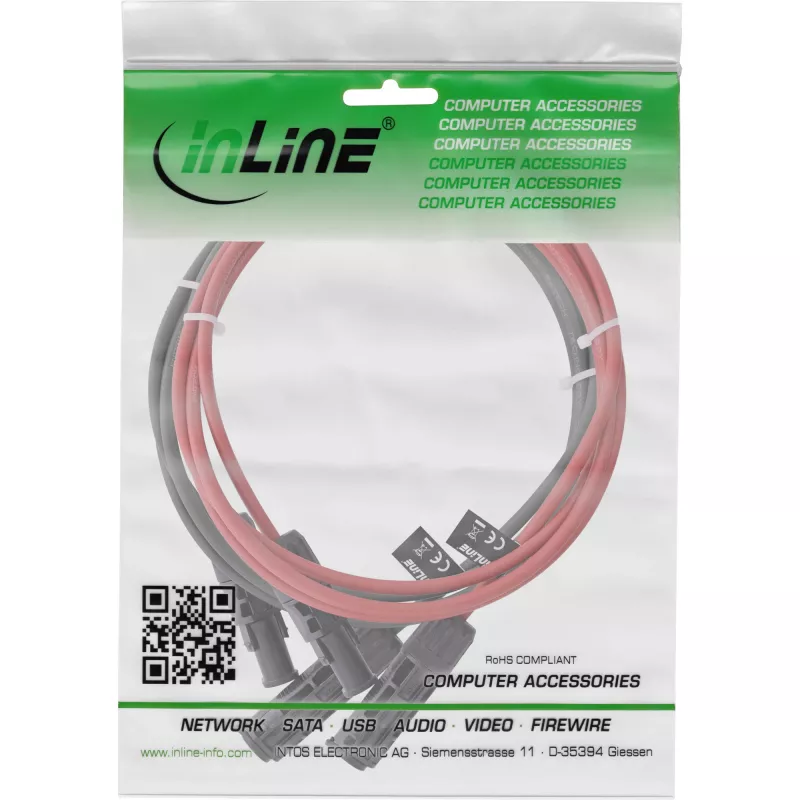

Medium voltage cable InLine 95402 Red Black 1500V 2m

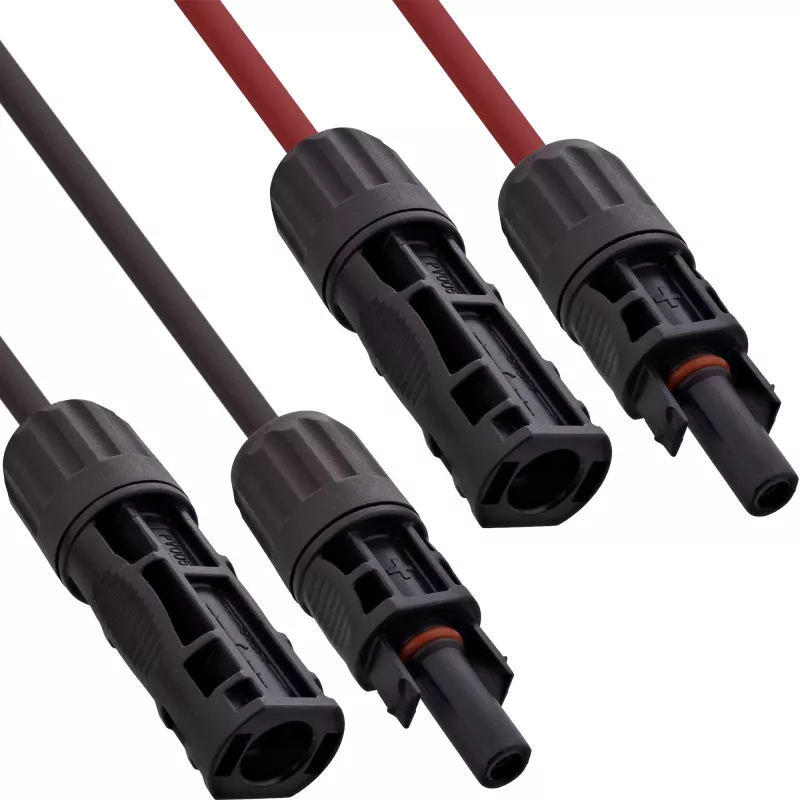

The InLine 95402 solar cable H1Z2Z2-K, 4 mm², supplied with a pair of solar plugs (red and black), is developed for wiring photovoltaic systems and for medium-voltage DC applications up to 1500 V. Its construction and materials provide durable, low-smoke, halogen-free insulation and reliable power transmission for PV arrays and related equipment. The required conductor cross-section depends on current and cable length; consult a solar technician if unsure.

Advantages

The cable meets EN 50618 for a DC operating voltage of 1.5 kV and offers high nominal/working voltages for safe PV use. It has a compact outer diameter of 5.5 mm with robust insulation and jacket thicknesses, tinned copper fine-stranded conductors for good conductivity and corrosion resistance, and proven resistance to ozone, weathering and UV. The insulation is cross-linked polyolefin (XLPO), low-smoke and halogen-free, and the cable is flame-retardant per EN 60332-1-2.

Suitable for

• Photovoltaic array wiring and DC string connections
• Medium-voltage DC connections up to 1500 V in solar installations
• Roof-mounted and ground-mounted PV systems where UV and weather resistance are required
• Short to moderate cable runs where a 4 mm² conductor is appropriate

Key specifications

• Conductor cross-section: 4 mm², fine-wired
• Conductor material: tinned copper
• Nominal/working voltage: 1.0/1.0 kV AC; operating voltage: 1.5 kV DC (EN 50618)
• DC line resistance: 5.09 Ohm/km
• Insulation thickness (nominal): 0.7 mm; jacket thickness (nominal): 0.8 mm
• Outer diameter: 5.5 mm
• Voltage test: AC 6.5 kV, DC 15 kV
• Flame resistance: EN 60332-1-2; LS0H (low smoke, zero halogen)
• Insulation material: XLPO (cross-linked polyolefin), halogen-free, low smoke
• Temperature range: -40 °C to +90 °C
• Minimum bending radius: 22 mm
• Length per set: 2 m (red and black), brand: InLine, MPN: 95402, EAN: 4043718334605

How to use

Install the cable following local electrical codes and the PV system designer’s instructions. Use the provided red and black solar plugs for correct polarity and secure, weatherproof connections. Ensure cable runs avoid sharp edges and excessive bending; maintain a minimum bending radius of 22 mm. Select cable cross-section and routing according to current, distance and temperature considerations; if in doubt, have a qualified solar technician verify the sizing and installation.

Recommendations

For safe and long-lasting operation, route cables away from concentrated heat sources and mechanical damage, fix them to supports to prevent strain on connections, and perform regular inspections for insulation damage and connector integrity. Follow EN 50618 and local regulations when installing and testing PV cabling.
