Managed Switch PLANET IP30 Industrial L3 16-Port Gigabit Ethernet

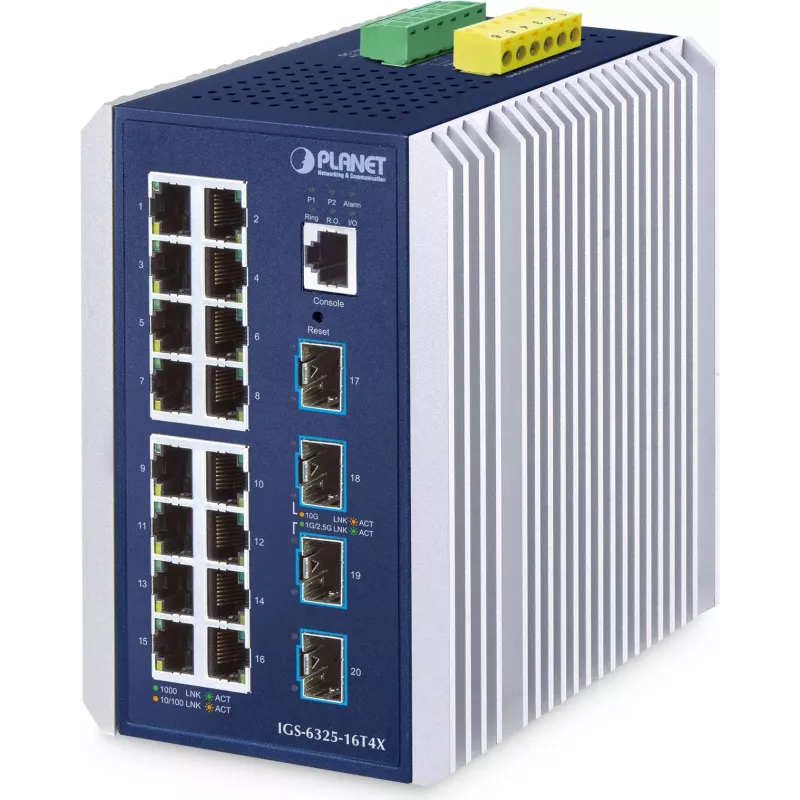

PLANET IGS-6325-16T4X is an industrial Layer 3 managed switch with 16 10/100/1000BASE-T RJ45 ports and 4 10GBASE-SR/LR SFP+ ports, delivering a switching capacity of up to 112 Gbps. Housed in an IP30 metal case with DIN-rail compatibility, the switch supports redundant DC 9–48 V and AC 24 V inputs and operates in temperatures from -40 to 75 °C. It provides 10Gbps uplinks, triple-speed SFP/SFP+ compatibility, SFP-DDM diagnostics, and advanced Layer 2/Layer 3 features for industrial Ethernet deployments.

Advantages

The IGS-6325-16T4X combines high-density Gigabit copper ports with multiple 10Gb fiber uplinks for scalable bandwidth and non-blocking wire-speed throughput. Its hardened IP30 aluminum housing, wide operating temperature range and redundant power inputs ensure continuous operation in harsh environments. Built-in cybersecurity (SSHv2, TLS 1.2), Modbus TCP support, IEEE 1588 timing and comprehensive Layer 2–4 ACLs provide secure, manageable connectivity for industrial and carrier applications.

Suitable for (tasks / use cases)

• Industrial automation networks and factory floor connectivity
• Edge aggregation for data centers, campus and telecom networks
• IP surveillance, VoIP and wireless service delivery
• SCADA and HMI integration via Modbus TCP
• Environments requiring hardened, temperature-tolerant switching

Key specifications

• Ports: 16 × 10/100/1000BASE-T RJ45, 4 × 10G SFP+ (supports 10G/2.5G/1G transceivers)
• Switching capacity: 112 Gbps (wire-speed)
• Power input: Dual DC 9–48 V and AC 24 V (redundant)
• Operating temperature: -40 to 75 °C
• Form factor: IP30 metal (DIN-rail compatible)
• Management: Console, Web, SNMPv3; Layer 3 IPv4/IPv6 routing, OSPFv2
• Security: SSHv2, TLS 1.2, ACLs, 802.1X, DHCP Snooping, IP Source Guard, DAI
• Standards: IEEE 802.1Q, 802.1p, 802.3ad, 802.3ae, IEEE 1588 support

How to use

Install the switch on a DIN-rail or in a suitable industrial enclosure and connect redundant power supplies (DC and/or AC). Populate the SFP+ sockets with appropriate transceivers (10G, 2.5G or 1G) according to required distance and speed. Use the Web GUI, console or SNMPv3 for initial configuration: set VLANs, Layer 3 routing (IPv4/IPv6), security policies (ACLs, 802.1X) and ring/ERPS settings for fast recovery. Enable Modbus TCP if integration with SCADA/HMI systems is required and monitor SFP status with DDM for optical diagnostics.

Recommendations

For reliable long-term operation, deploy the IGS-6325-16T4X with redundant power sources, use temperature-rated transceivers and enable ring protection (G.8032 ERPS) in critical topologies. Regularly monitor SFP-DDM parameters and alarm inputs to detect faults early, and use SNMPv3 or UNI-NMS/CloudViewerPro for centralized remote management.
