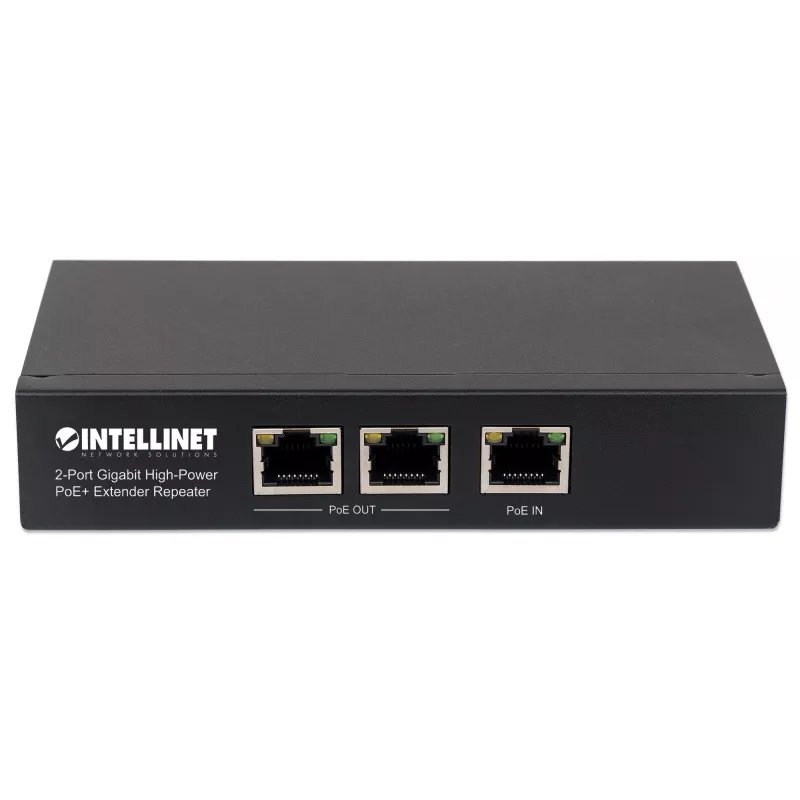

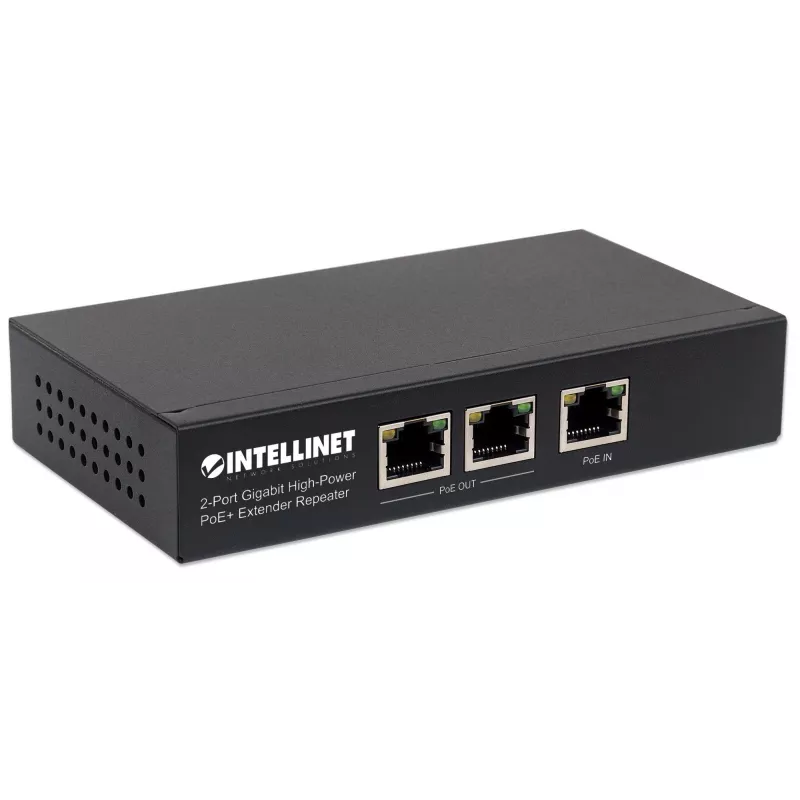

Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), metal

The Intellinet PoE+ Extender Repeater 2-Port Gigabit High-Power extends a Power-over-Ethernet connection, allowing you to increase the reach of PoE sources to remote devices without additional power supplies. The compact unmanaged device provides three Gigabit Ethernet ports, supports IEEE 802.3af/at standards and draws operating power from the PoE input to feed two output ports.

Advantages

This PoE+ extender enables longer cable runs by repeating PoE and data over Cat5e/Cat6 up to 100 m per segment, effectively doubling the distance between a PoE source and a powered device. It complies with IEEE 802.3at, supplies up to 30 W to connected devices, offers Gigabit data throughput and requires no external AC power, which simplifies installation and reduces wiring costs.

Suitable for

• Extending PoE connections for IP cameras
• Powering and connecting VoIP phones at extended distances
• Connecting wireless access points where AC power is not available

Key specifications

• Manufacturer: INTELLINET
• Model / MPN: 561266
• Ports: 3 × Gigabit Ethernet (10/100/1000) – 1 PoE In, 2 PoE Out
• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
• PoE power: up to 30 W to connected devices (IEEE 802.3at compliant)
• Cable distance: up to 100 m per segment (Cat5e/Cat6), total up to 200 m between PoE source and device
• Switching capacity: 6 Gbit/s
• MAC address table: 2048 entries
• Weight: 0.24 kg
• Color: Black
• Switch type: Unmanaged

How to use

Connect the PoE In port of the extender to a PoE switch or PoE injector using Cat5e/Cat6 cable. Then connect up to two PoE devices to the PoE Out ports with Cat5e/Cat6 cables. Ensure each cable run does not exceed 100 m; the extender draws power from the PoE input and forwards data and power to the outputs automatically without configuration.

Recommendations

For reliable operation, use quality Cat5e or Cat6 cables and verify that the upstream PoE source can supply sufficient power for the connected devices. Observe the 100 m maximum cable length per segment to maintain Gigabit performance and PoE delivery.
