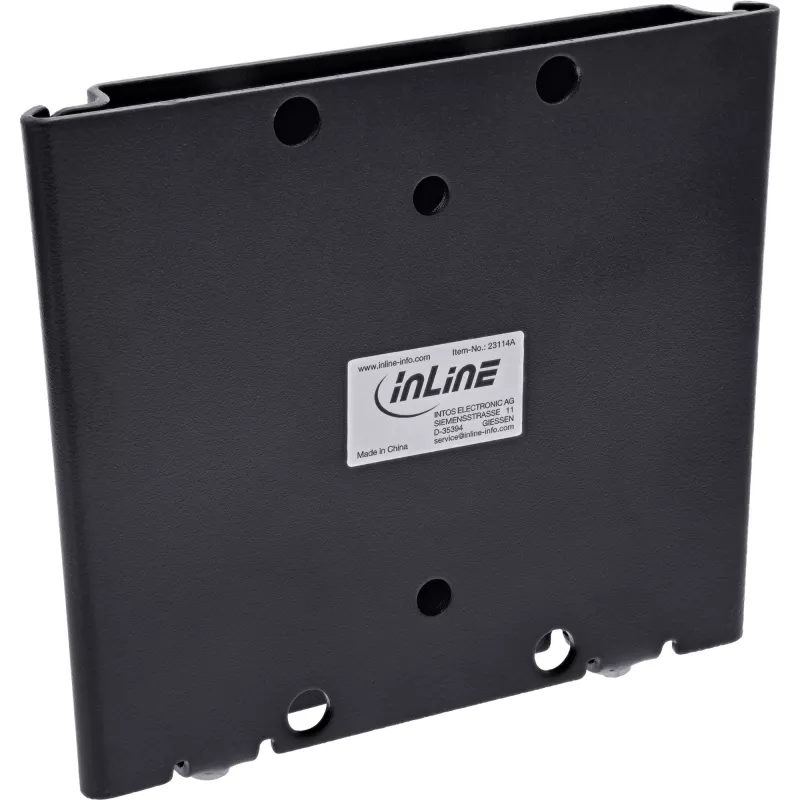

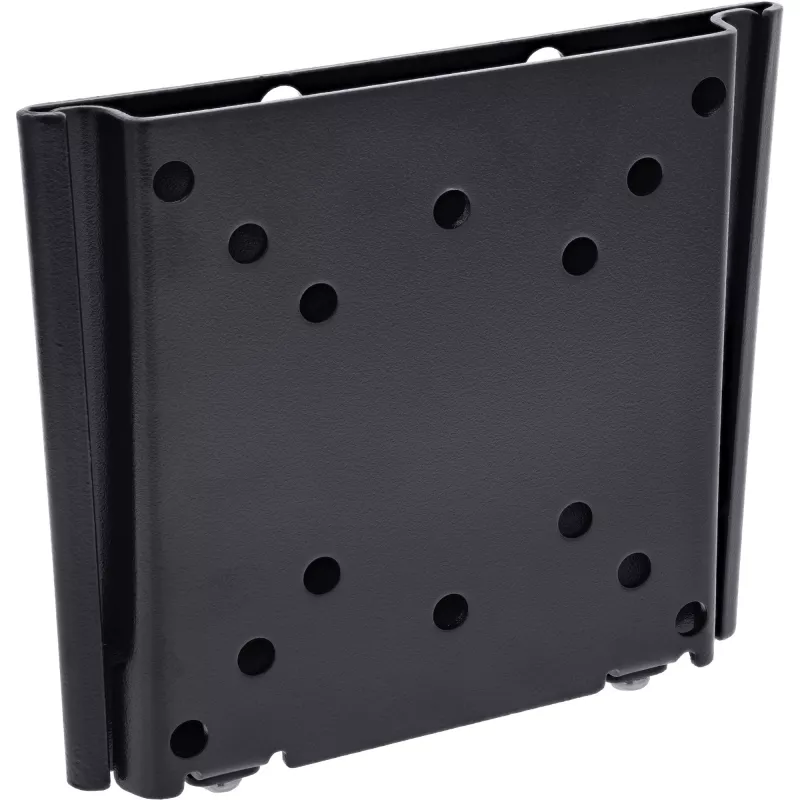

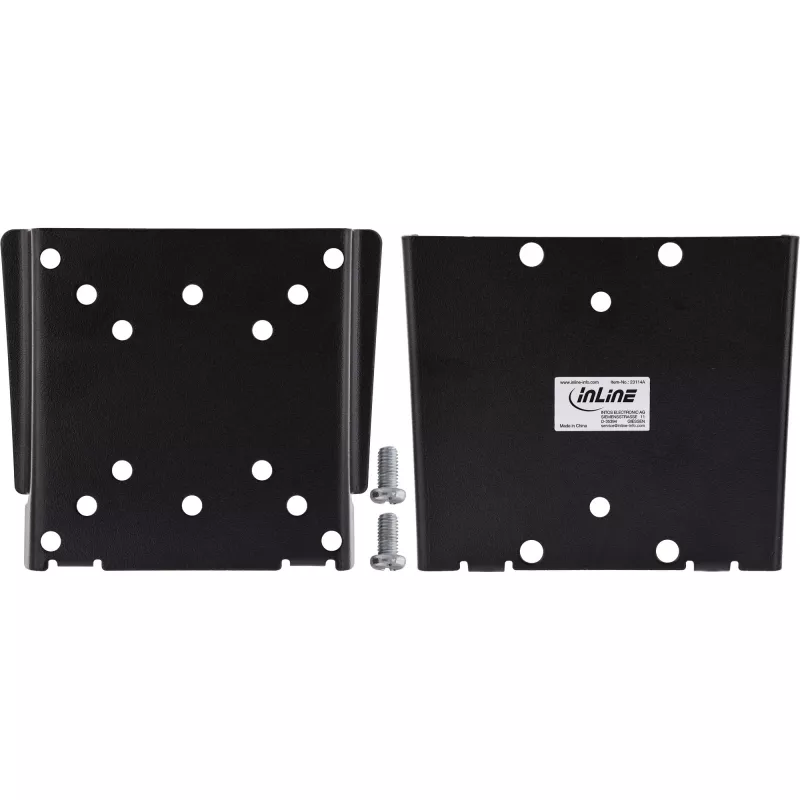

InLine Wall Bracket for TFT 33-69cm 13-27 inch max. 30kg

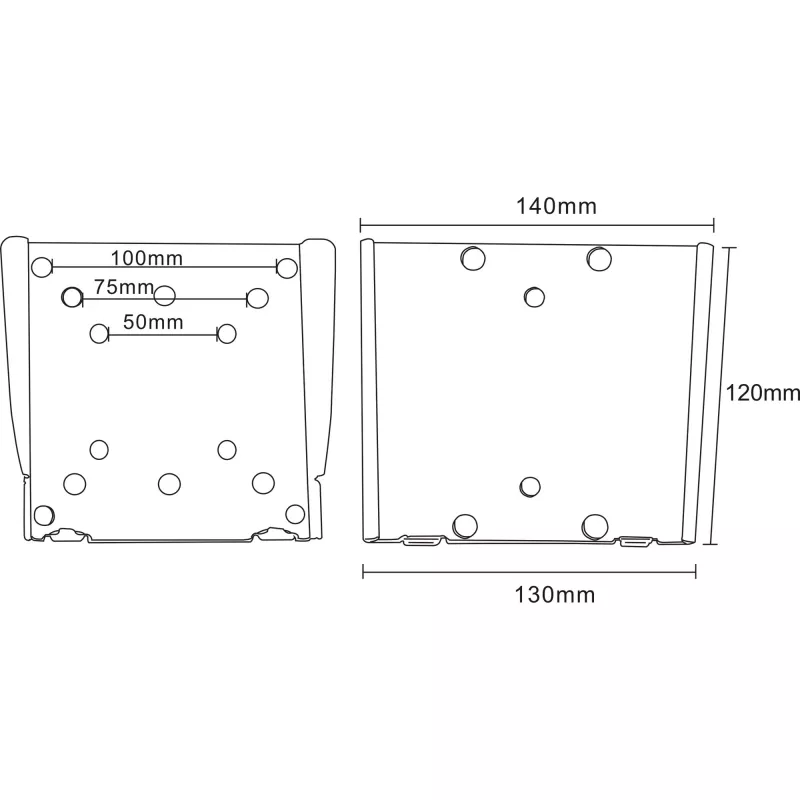

The InLine Wall Bracket TFT 33-69cm 13-27" max. 30kg is a slim fixed wall mount designed for TFT and LCD monitors with screen sizes from 33 cm (13") up to 69 cm (27"). It supports common VESA patterns from 50 x 50 mm to 100 x 100 mm and holds displays up to 30 kg. The bracket's low-profile design allows the screen to sit as close as 1.5 cm from the wall, giving a neat and space-saving installation suitable for home offices, workplaces and public displays. The matte black finish provides a neutral appearance that blends with most monitors and interiors.

Advantages

The bracket's compact construction ensures a minimal distance to the wall while maintaining stable support for screens up to 30 kg. Compatibility with a range of VESA mounting patterns (50 x 50 mm to 100 x 100 mm) covers most small-to-medium TFT monitors. Its simple design and black finish make it unobtrusive and easy to integrate into different environments. The mount is engineered for straightforward assembly and a secure attachment to standard solid walls.

Suitable for

Key specifications

How to use

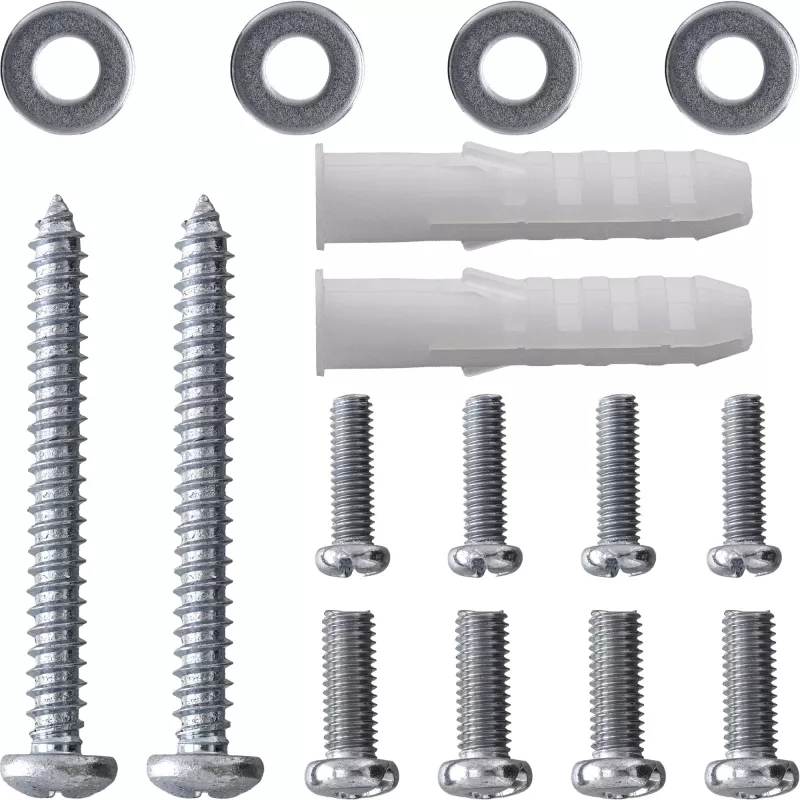

Select a suitable mounting location on a solid wall and verify the monitor's VESA pattern matches one of the supported sizes. Mark and drill the wall holes according to the bracket template, insert appropriate anchors for your wall type and secure the bracket to the wall with the supplied or recommended fasteners. Attach the monitor to the mounting plate using screws that fit the device's VESA mounting holes, tighten securely and check the level. Ensure cable routing is arranged before final tightening to avoid strain on connectors.

Recommendations

Use wall anchors appropriate to the wall material (concrete, brick, plasterboard) and check the total weight of the screen and any accessories so it does not exceed the 30 kg limit. If unsure about wall strength or installation, consult a qualified fitter. Periodically inspect mounting screws and anchoring for tightness and wear.
