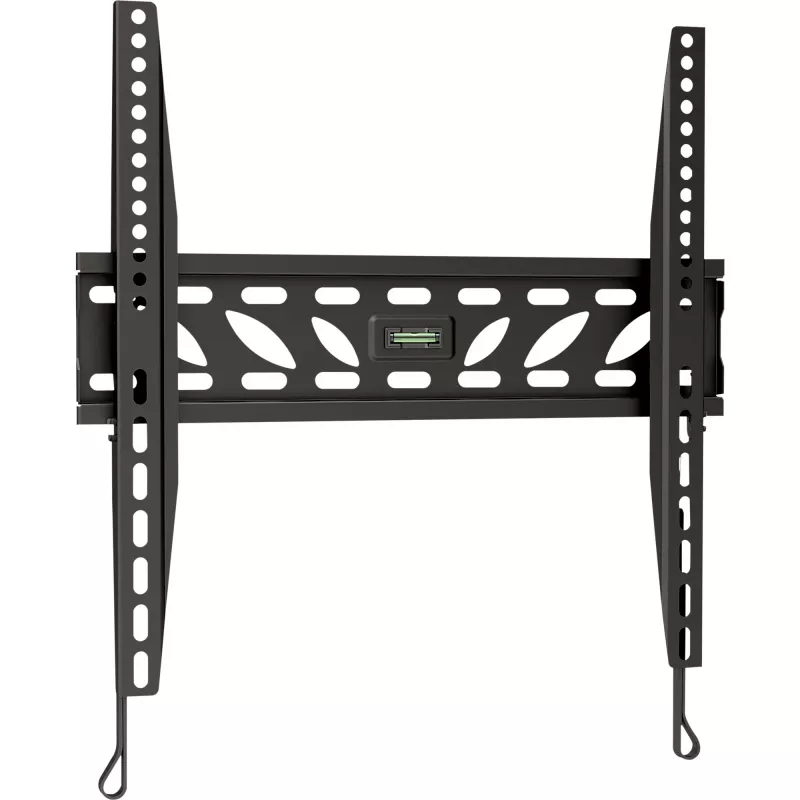

InLine Wall Bracket for TFT / LED / Plasma 81-140cm 32 inch-55 inch max. 50kg

The InLine Wall Bracket is designed for secure wall installation of TFT, LCD, LED and Plasma screens from 32" to 55" (81–140 cm) with a maximum load of 50 kg. It supports VESA mounting patterns up to 400 x 400 mm and keeps the screen at a slim distance of 2.6 cm from the wall, offering a low-profile, stable fixing suitable for home entertainment, theatre setups, video conferencing and digital signage.

Advantages

This wall bracket provides a compact, space-saving mount with a 2.6 cm wall offset and robust support for displays up to 50 kg. It is compatible with common VESA standards (up to 400 x 400 mm) and comes in a neutral black finish to fit a variety of interior styles. The design focuses on stable, secure attachment and easy integration with different screen types including TFT, LED and Plasma.

Suitable for

• Home and theatre entertainment systems
• Video conferencing displays in offices or meeting rooms
• Digital signage in retail, hospitality or public spaces

Key specifications

• Compatible screen size: 32"–55" (81–140 cm)
• Maximum weight capacity: 50 kg

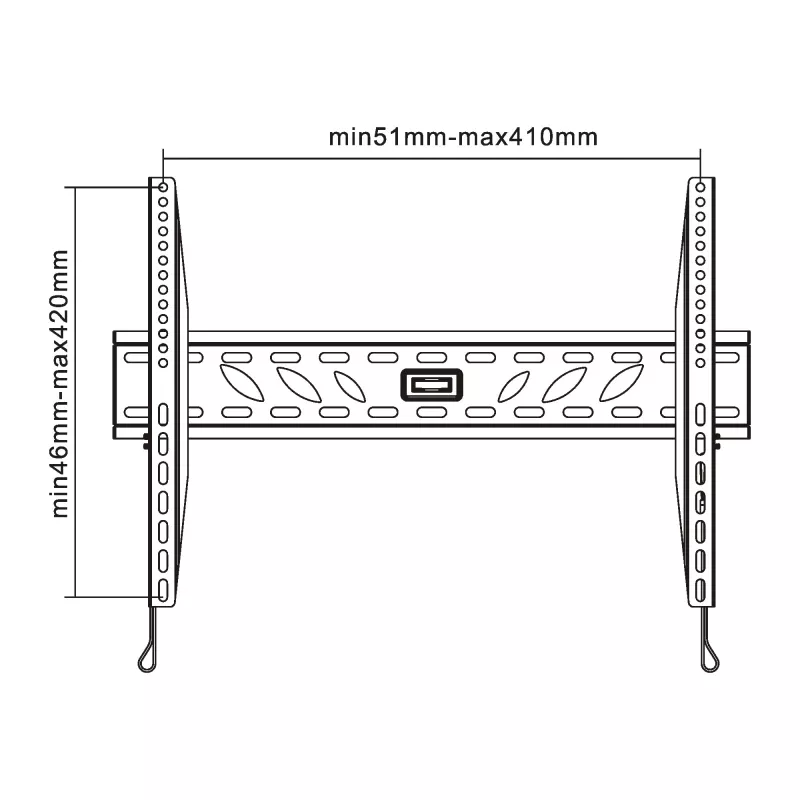

• Maximum VESA: 400 x 400 mm
• Distance from wall: 2.6 cm
• Colour: Black
• Brand: InLine, MPN: 23119B, EAN: 4043718172238

How to use

Select a suitable mounting location on a load-bearing wall and verify that the chosen wall type and fixings can support the combined weight of the screen and bracket. Attach the bracket to the wall using appropriate anchors and screws for your wall material, then fix the VESA plate to the display using the matching VESA holes. Lift the screen and secure it onto the wall bracket according to the bracket’s installation points, ensuring all fasteners are tightened and the screen is level.

Recommendations

Use appropriate wall anchors for the specific wall material and, if in doubt, consult a professional installer. Verify VESA pattern and screen weight before installation and periodically check fasteners for safety.
