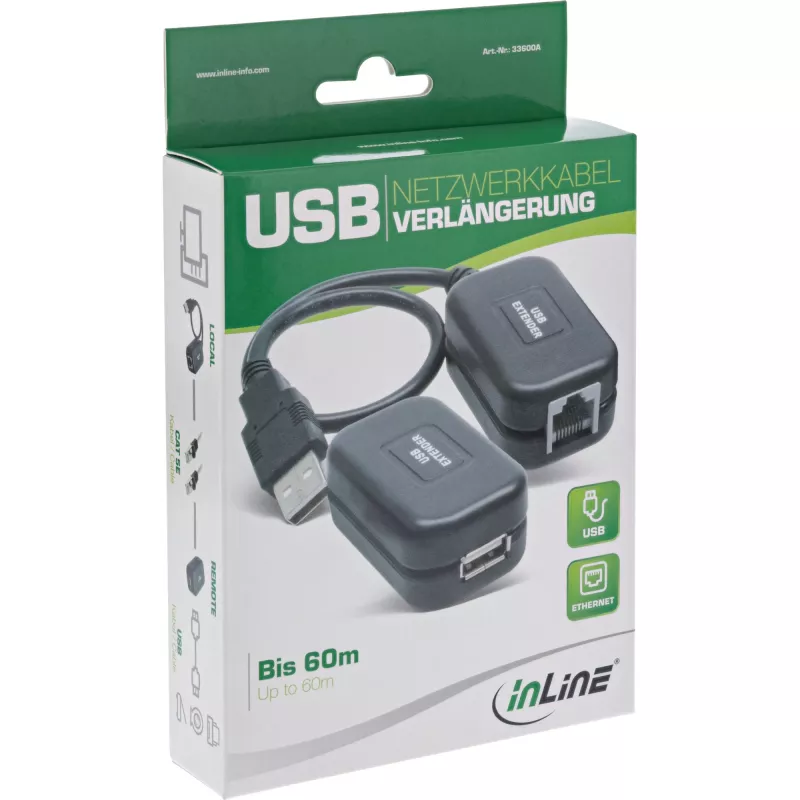

InLine USB Extender up to 60m over RJ45 Patch Cable Cat.5e or better

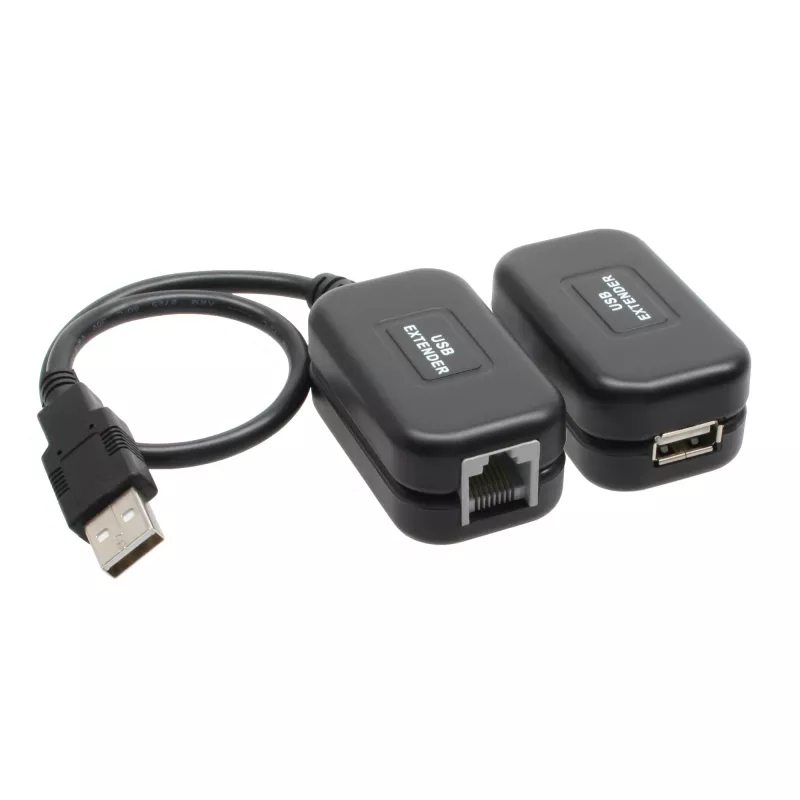

This USB 1.1 converter extends the distance between a PC and a USB device up to 60 metres using a standard RJ45 Cat.5 / 5e / 6 cable. The compact black InLine 33600A unit enables reliable USB connection over longer runs without additional signal boosters when used as recommended.

Advantages

The InLine 33600A supports USB 1.1 signalling over a single Cat.5e (or better) cable, allowing stable data transfer to devices located far from the host. Its compact black housing is unobtrusive and easy to install. Using it with an active USB hub at the PC end reduces load on the host USB port and improves overall stability.

Suitable for

• Extending keyboards and mice up to 60 m
• Connecting USB printers or scanners placed far from the PC
• Remote connection of USB audio interfaces or other low-speed USB 1.1 devices
• Office or home installations where a long, low‑cost cable run is needed

Key specifications

• Standard: USB 1.1
• Maximum extension distance: up to 60 m over RJ45 Cat.5 / 5e / 6
• Model: InLine 33600A
• Colour: Black
• Brand: InLine
• MPN: 33600A
• EAN: 4043718091768

How to use

Connect one converter unit to the PC USB port and the second unit to the USB device. Link the two units with a Cat.5, Cat.5e or Cat.6 patch cable up to 60 metres long. For best results, place an active USB hub between the PC and the converter to avoid overloading the PC USB port. Ensure both units have reliable power if the connected USB device requires external power.

Recommendations

Use high-quality Cat.5e or Cat.6 cabling and keep cable runs away from strong electromagnetic interference sources. Verify device compatibility with USB 1.1 speeds; high-speed USB 2.0 devices may not operate at full performance over this extender.
