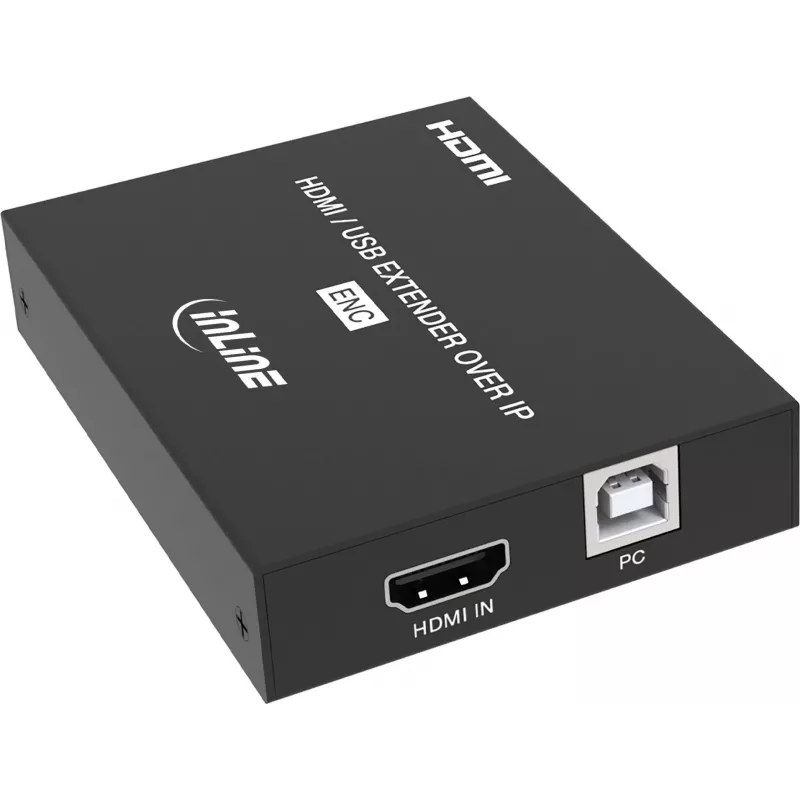

InLine® KVM Extender over IP, HDMI Full HD, 150m, Transmitter (TX)

Unlike conventional USB or HDMI extenders that rely on direct copper runs or proprietary protocols, this InLine KVM over IP transmitter turns your keyboard, mouse, and Full HD display into a network-accessible resource. It encodes HDMI video and USB HID signals into standard Ethernet packets, so you can operate a PC or server from up to 150 metres away over ordinary Cat5e/6/7 cabling—or even across a managed network switch for point-to-multipoint and multipoint-to-multipoint configurations.

Highlights

• Transmits 1920x1080p @ 60Hz HDMI video with stereo audio and HDCP 1.4 over IP
• Local HDMI loop-out for monitoring the source directly at the transmitter
• Two USB Type-A ports for keyboard and mouse, plus USB Type-B host connection
• Gigabit Ethernet RJ45 port supports distances up to 150 m over Cat5e/6/7
• EDID pass-through ensures correct resolution and refresh rate negotiation
• Low-latency operation, wall-mountable metal housing, DC 5V/2A adapter included

In daily use

Place the transmitter near the computer or media player you need to control. Connect the HDMI output of the source to the transmitter's HDMI input, attach the USB Type-B cable to a free USB port on the source, and plug your keyboard and mouse into the two USB Type-A ports. A local HDMI monitor can be connected to the loop-out port for direct verification. Run a Cat5e/6/7 cable from the RJ45 port to a network switch or directly to a compatible receiver (sold separately). The transmitter is powered by the included 5V/2A adapter and can be mounted on a wall or placed on a shelf thanks to its sturdy metal enclosure.

Full specifications

• Product type: KVM Extender Transmitter (Sender)
• Transmission technology: IP (Ethernet)
• Video input: 1x HDMI Type A Female
• Video output (local loop-out): 1x HDMI Type A Female
• USB host connection: 1x USB Type B Female
• USB device ports: 2x USB Type A Female (for keyboard/mouse)
• Network interface: 1x RJ45 Female (Gigabit Ethernet recommended)
• Maximum video resolution: 1920x1080p @ 60Hz (Full HD)
• Maximum transmission distance: 150 m
• Transmission cable types: Cat.5e/6/7
• KVM support: Yes (USB keyboard & mouse)
• Audio support: Stereo audio (via HDMI)
• HDCP support: HDCP 1.4
• EDID support: EDID pass-through
• Power supply: DC 5V/2A (adapter included)
• Housing material: Metal
• Colour: Black
• Operating modes: Point-to-point, point-to-multipoint, multipoint-to-multipoint (via network switch)
• Latency: Low latency
• Mounting: Wall-mountable

Final note

This transmitter is the core of a flexible KVM-over-IP setup. Pair it with a compatible InLine receiver to extend control of a workstation, server, or media source across a room, floor, or building without sacrificing Full HD clarity or USB responsiveness.
