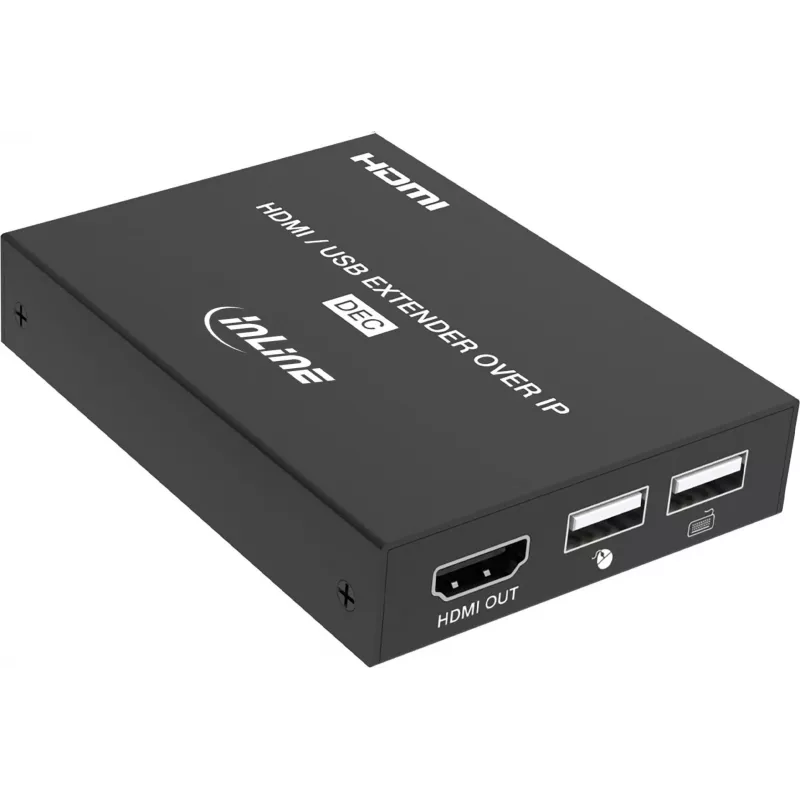

InLine® KVM Extender over IP, HDMI Full HD, 150m, Receiver (RX)

In control rooms, server rooms, and industrial workspaces, operators often need to access computers from a distance without sacrificing responsiveness or video quality. The InLine® KVM Extender over IP Receiver (RX) pairs with a compatible transmitter to extend HDMI video, USB keyboard, and USB mouse signals up to 150 metres over standard Cat5e/6/7 Ethernet cabling. This receiver delivers crisp Full HD 1080p at 60 Hz with HDCP 1.2 support, making it ideal for digital signage, remote workstation access, and secure server management.

Key specifications

• Transmission technology: IP over Ethernet (Cat5e/6/7, Gigabit recommended)
• Maximum distance: 150 m
• Video output: 1x HDMI Type A female, up to 1920x1080 @ 60 Hz
• USB ports: 2x USB Type A female, USB 2.0 for keyboard and mouse
• HDCP version: 1.2
• Power supply: DC 5V/2A (adapter included)
• Housing: Metal, wall-mountable with included brackets
• Colour: Black

Why choose it

This receiver is built for reliable, low-latency KVM extension over IP. With support for point-to-point and point-to-multipoint configurations, it scales from a single remote workstation to a distributed KVM matrix. The metal enclosure and included mounting ears allow secure installation in racks, under desks, or on walls, while the HDMI output ensures compatibility with modern displays and projectors.

Ideal use cases

• Remote access to servers in data centres or secure rooms
• Digital signage and information displays in public areas
• Industrial control stations where the computer must be isolated from harsh environments
• Extending a workstation to a quieter, cooler location

Good to know

The receiver requires a compatible InLine® KVM Extender over IP transmitter (sold separately). For best performance, use solid-core Cat6 or Cat7 cable and ensure your network switch supports IGMP snooping if deploying multiple receivers. The unit is powered by the included 5V/2A adapter and features LED indicators for power and link status.
