InLine 92501H wire connector Terminal block / D-Sub 9 Black

Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to mounting thread:The D-Sub-9 receptacle is equipped with a mounting thread (UNC #4-40) for connector locking and enables secure screw connection with matching plugs.
Versatile use in industry:Ideal for test benches, prototyping, commissioning, and mobile service and diagnostic applications.

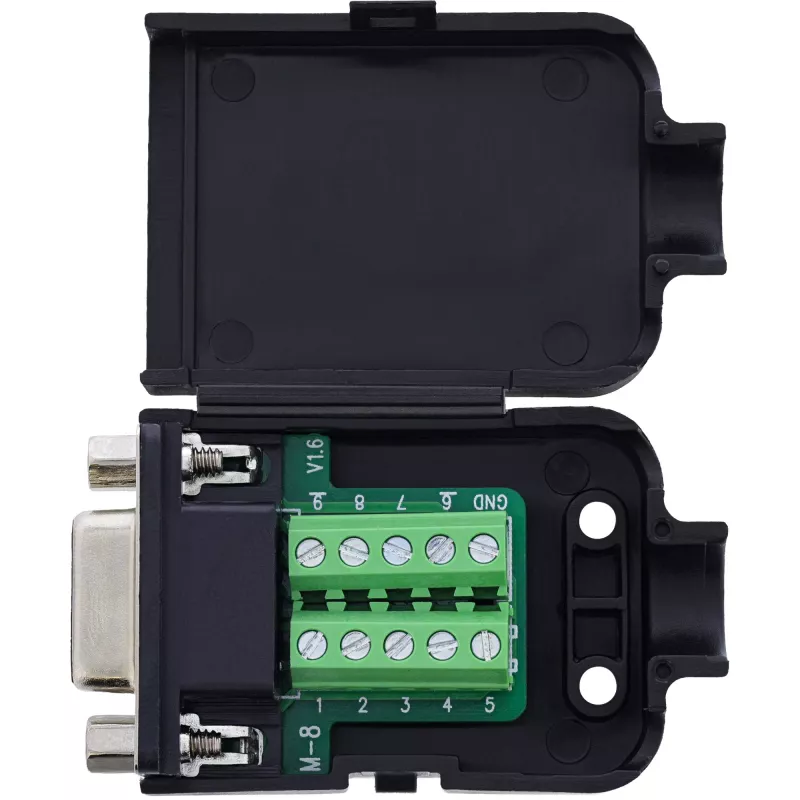

Breakout design with open design: Side-accessible screw terminals enable flexible, temporary signal wiring – without housing mounting.
High signal quality:An insulation resistance ≥ 10 MΩ at 300 V DC and a rated current of 0.8 A per pin ensure reliable signal transmission in professional use.

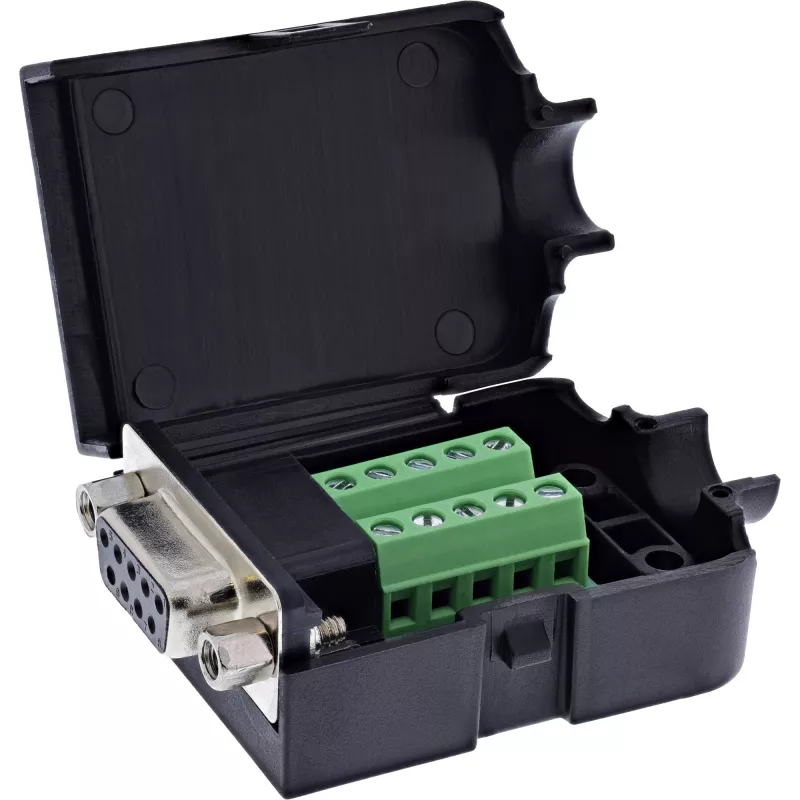

The InLine® D-Sub 9 breakout terminal block with socket is specially designed for use in test setups, control systems, or field commissioning. The open design with side screw terminals allows for quick wiring of individual wires in the range of 18–26 AWG – without soldering or housing mounting. Actuation is tool-assisted with a flat-blade screwdriver with a blade width ≤ 2.5 mm.
Thanks to the integrated mounting thread (UNC #4-40), the connector can be securely screwed in place. An EVA insulating layer on the underside provides additional protection when mounting on conductive surfaces. The robust, compact design is ideal for test stations, signal diagnostics, and temporary control solutions in mobile applications.

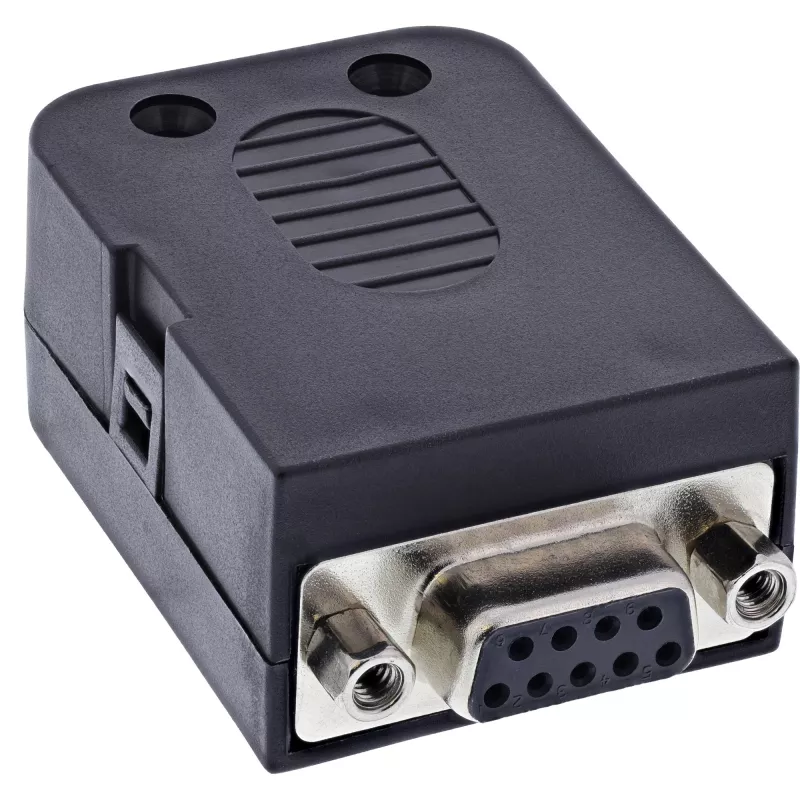

D-Sub 9 female connector:Breakout design, with mounting thread for connector locking (UNC #4-40)
Connection technology:Screw terminal with pressure plate
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:0.8 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside
Dimensions: approx. 57.7 × 34.4 × 21 mm (L × W × H)

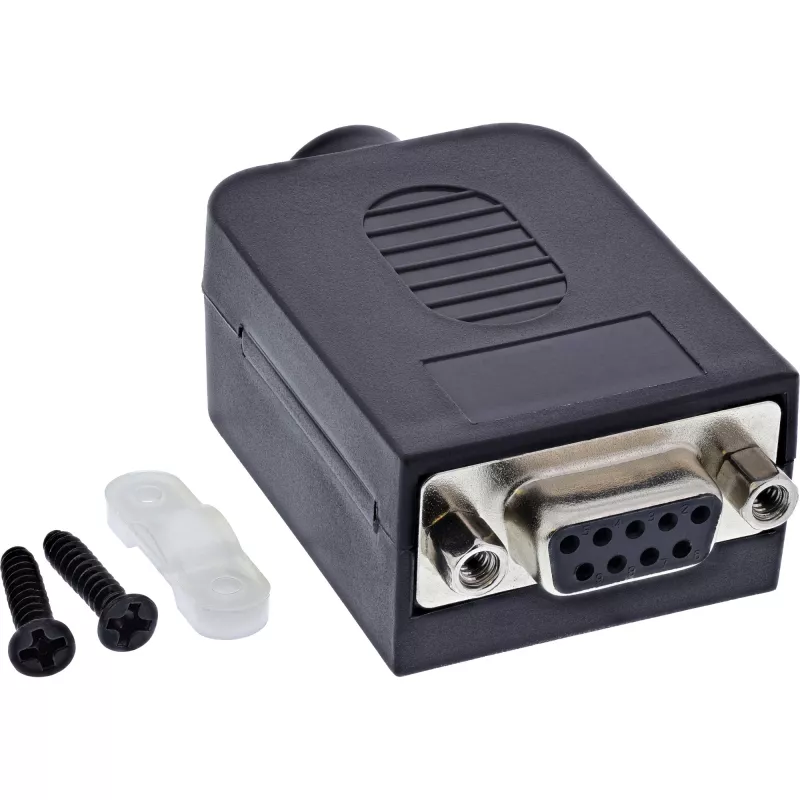

Accessories: 1× pressure plate, 2× screws

InLine 92501H. Connector(s): Terminal block / D-Sub 9, Product colour: Black, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 34 x 57 x 21 mm, Weight: 25 g, Width: 34 mm. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan
