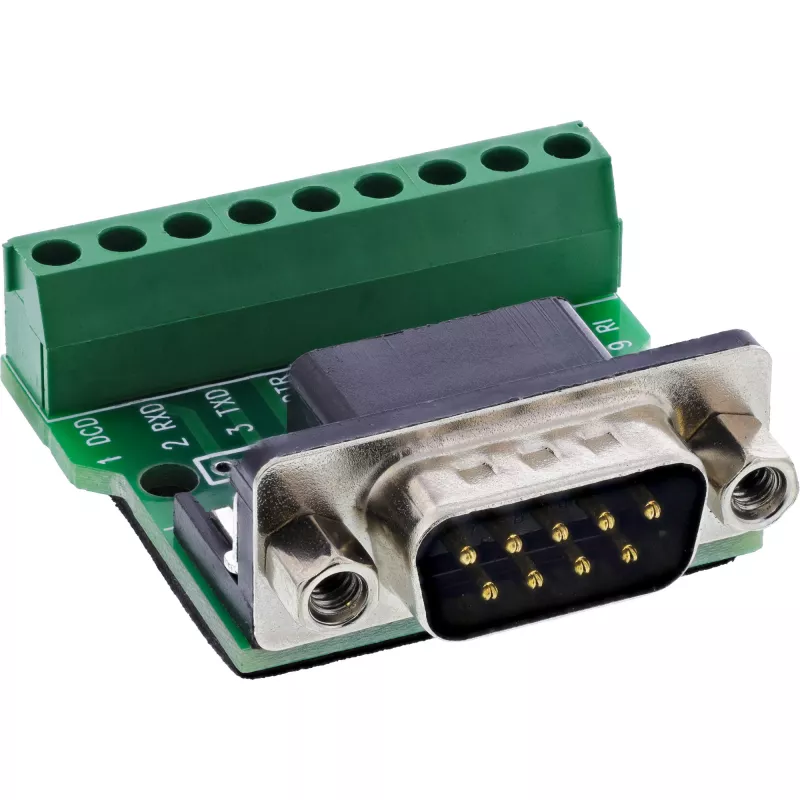

InLine 92501D wire connector Terminal block / D-Sub 9 Black, Green

Time savings during installation:Fast wiring via screw terminals for 18–24 AWG – tool-assisted with flat-head screwdriver ≤ 2 mm.
Stable connection thanks to screw lock:The D-Sub-9 connector is equipped with an integrated screw lock and ensures a secure mechanical connection to the matching socket – even in the event of vibration or movement.
Versatile use in industry:Ideal for automation, machine and plant engineering, control cabinet installations, and mobile test and service applications.
Compact design: The terminal block can be easily integrated even in limited space – whether on a DIN rail or in mobile units.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 1 A per pin ensure reliable signal transmission – even in continuous industrial applications.

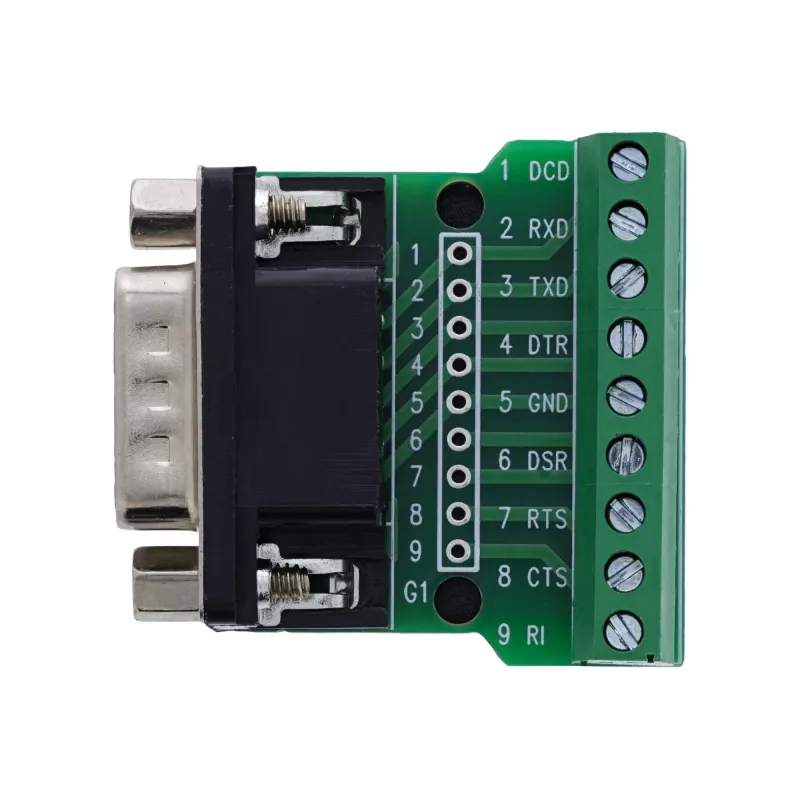

The InLine® terminal block with D-Sub 9 connector and screw terminal connections was developed for professional use in serial signal wiring. The screw terminals with a 3.96 mm pitch enable secure connection of single wires in the 18–24 AWG range. They are operated using a standard flat-blade screwdriver with a blade width ≤ 2 mm.
The integrated screw lock ensures a stable connection to matching D-Sub sockets – even with vibration or frequent plugging. The EVA insulation layer on the underside provides additional protection when mounting on conductive surfaces. The compact design makes this terminal block a practical, durable solution for industrial applications where reliability, flexibility, and ease of use are required.

D-Sub 9 connector:With integrated screw lock
Connection technology: Screw terminal, pitch 3.96 mm
Connection range:18–24 AWG
Actuation:With flat-blade screwdriver ≤ 2 mm
Rated current: 1 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–10°C to +70°C
Insulation layer:EVA insulation on underside
Dimensions:approx. 38 × 37 × 16 mm (L × W × H)

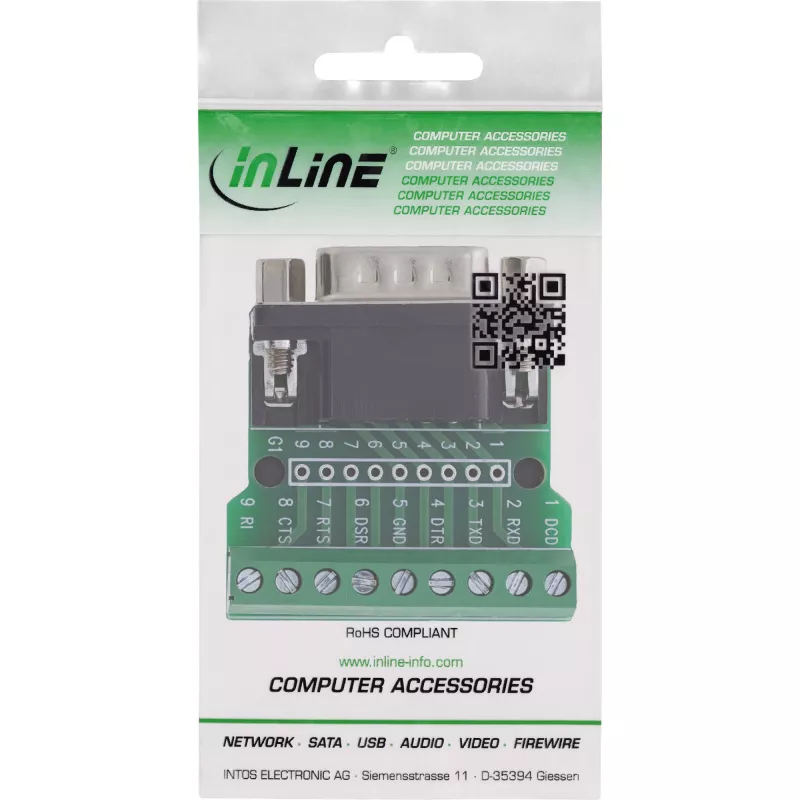

InLine 92501D. Connector(s): Terminal block / D-Sub 9, Product colour: Black, Green, Connector gender: Male/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 37 x 38 x 16 mm, Weight: 15 g, Width: 37 mm. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan
