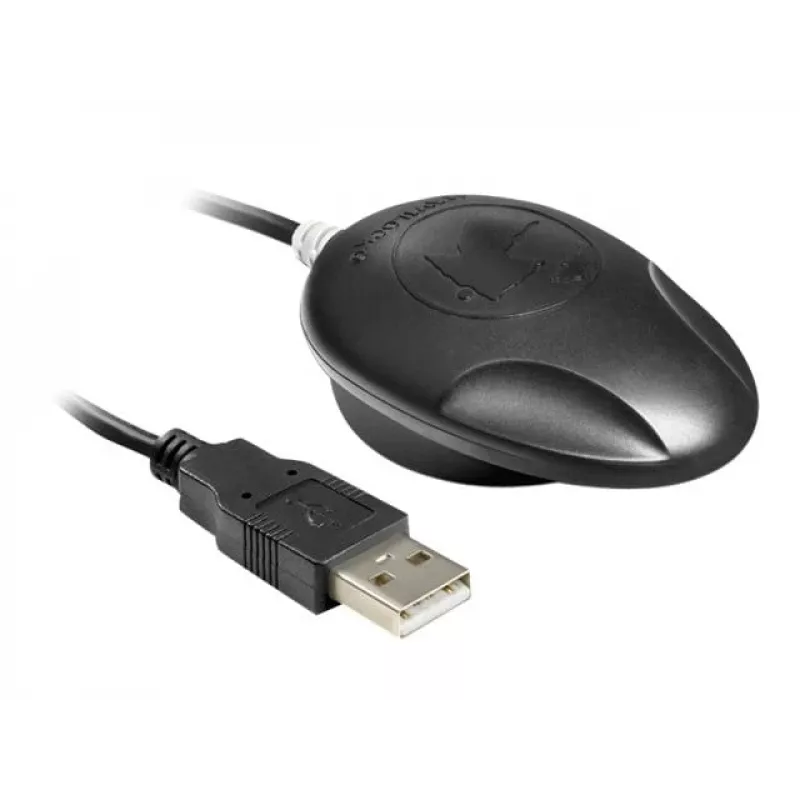

GPS receiver module USB Navilock NL-8002U Black

The Navilock NL-8002U is a compact USB GNSS receiver module that uses a u-blox 8 chipset and a built-in antenna to deliver high-sensitivity satellite positioning. With a USB Type-A connector and LED status indicators, the NL-8002U connects directly to notebooks and PCs and works with compatible routing or navigation software for accurate GPS data.

Advantages

The device offers high sensitivity (down to -167 dBmW) thanks to the u-blox 8 chipset and integrated antenna, ensuring reliable satellite reception in a small form factor. Its USB 2.0 Type-A interface enables plug-and-play connectivity to laptops and desktop computers, while LED indicators provide clear status information. Compact dimensions (45 × 65 × 22 mm) make it easy to transport and position for optimal reception.

Suitable for

• Adding GPS capability to notebooks and desktop PCs
• Navigation with routing software on laptops
• Location-aware applications and development work

Key specifications

• Brand: Navilock
• Model: NL-8002U (Black)
• Chipset: u-blox 8
• GNSS sensitivity: -167 dBmW
• Interface: USB 2.0, Type-A connector
• Dimensions: 45 mm × 65 mm × 22 mm
• Indicators: LED status lights
• MPN: 62523
• EAN: 4043619625239

How to use

Connect the NL-8002U to a computer using the USB Type-A connector. Install or launch compatible routing or navigation software and, if required by your operating system, install the device driver provided by the software or manufacturer. Place the receiver so the built-in antenna has a clear view of the sky to improve satellite reception and wait for the LED indicators to show an active satellite fix before starting navigation or logging position data.

Recommendations

For best performance, position the receiver near a window or outdoors with an unobstructed view of the sky. Ensure your navigation software is configured to use the connected USB GNSS device and keep drivers up to date for compatibility and stability.
