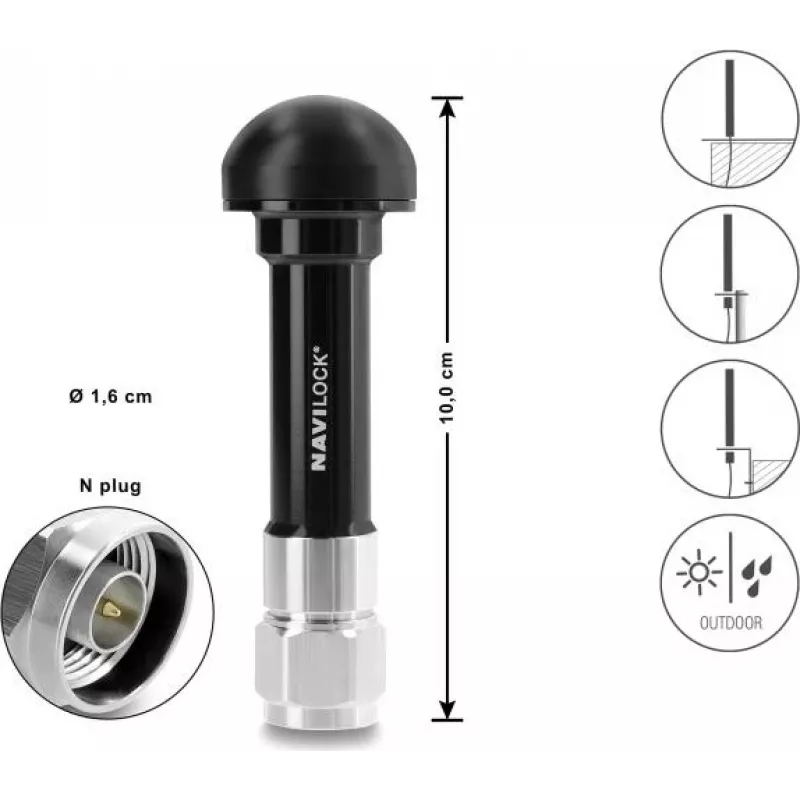

Navilock GNSS Antenna N Connector 28 dB Active Outdoor Black 10 cm (60763)

Weak or intermittent satellite reception can cripple navigation and timing systems, especially in challenging outdoor environments. The Navilock GNSS Antenna 60763 solves this by combining a high-gain active design with rugged weatherproof construction, ensuring reliable multi-constellation positioning for professional and recreational use.

Who is it for

This antenna is ideal for fleet managers, surveyors, marine electronics installers, and outdoor enthusiasts who need dependable GNSS reception in all conditions. It works with GPS, GLONASS, Galileo, and BeiDou receivers that have an N-type female connector and provide DC power over the coax.

Main features

• Active GNSS antenna with 28 dB LNA gain for weak-signal areas
• Supports GPS L1, GLONASS L1, Galileo E1, and BeiDou B1 bands
• Right-hand circular polarization for optimal satellite signal capture
• N-type female connector for low-loss, secure RF connection
• IPX7 waterproof rating – withstands heavy rain and temporary immersion
• UV-resistant ABS housing for long outdoor life
• M18 threaded screw mount for secure installation

Specifications

• Frequency range: 1559–1606 MHz
• LNA gain: 28 dB (typical)
• Noise figure: < 1.5 dB
• VSWR: < 2.0
• Impedance: 50 Ohm
• Operating voltage: 3.0–5.0 V DC
• Current consumption: 10–20 mA
• Operating temperature: -40 °C to 85 °C
• Antenna diameter: 100 mm
• Antenna height: 42 mm
• Cable length: 10 cm
• Colour: Black

Tips

Mount the antenna with a clear view of the sky, away from large metal objects. Use low-loss coaxial cable for longer runs to minimize signal attenuation. Ensure your receiver provides the required DC bias voltage to power the built-in LNA.
