GPS receiver module Navilock 60326 M8 99 channels Black

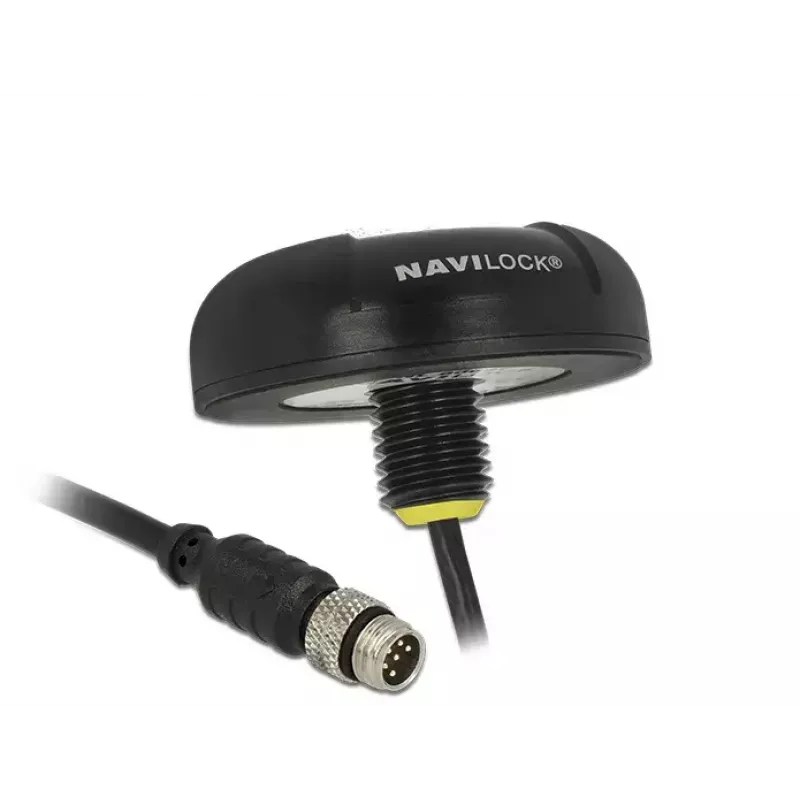

The Navilock 60326 M8 GPS receiver module is a compact, roof-mountable GNSS antenna unit with an integrated antenna and M8 waterproof connector. Based on the MT3333 chipset and providing up to 99 channels with high sensitivity (–165 dBmW), it operates from a 5 V input and is IPX7 rated, making it suitable for vehicle-mounted navigation and positioning tasks in demanding environments.

Advantages

The receiver combines a built-in high-sensitivity antenna with a multi-GNSS MT3333 chipset to deliver reliable satellite tracking across up to 99 channels. Its compact dimensions (62 × 62 × 21 mm), IPX7 protection and universal waterproof M8 connector allow straightforward installation on car, truck or bus roofs and offer compatibility with optional connecting cables. The included installation material simplifies mounting and helps integrate the unit into vehicle setups.

Suitable for

• Vehicle navigation and routing with laptop-based software
• Fleet tracking and vehicle positioning
• Mobile GNSS data logging and surveying applications
• Outdoor installations requiring IPX7-rated GNSS reception

Key specifications

• Model: Navilock 60326 (DELOCK / MPN 60326, EAN 4043619603268)
• Chipset: MT3333 multi-GNSS
• Channels: up to 99 channels
• Sensitivity: –165 dBmW
• Input voltage: 5 V
• Dimensions: 62 × 62 × 21 mm
• Connector: universal waterproof M8
• Protection rating: IPX7

How to use

Mount the Navilock 60326 on a suitable vehicle roof using the supplied installation material, ensuring the antenna has a clear view of the sky. Connect the unit to a laptop or navigation device using an appropriate cable for the M8 connector and start your routing or logging software. Provide a stable 5 V power supply and verify communication in the software to begin GNSS tracking.

Recommendations

For best performance, install the receiver on a flat, elevated part of the roof away from large metallic obstructions. Use recommended or OEM-compatible M8 cables and ensure connections are sealed to maintain IPX7 protection. Periodically check mounting hardware and cable condition for secure, reliable operation.
