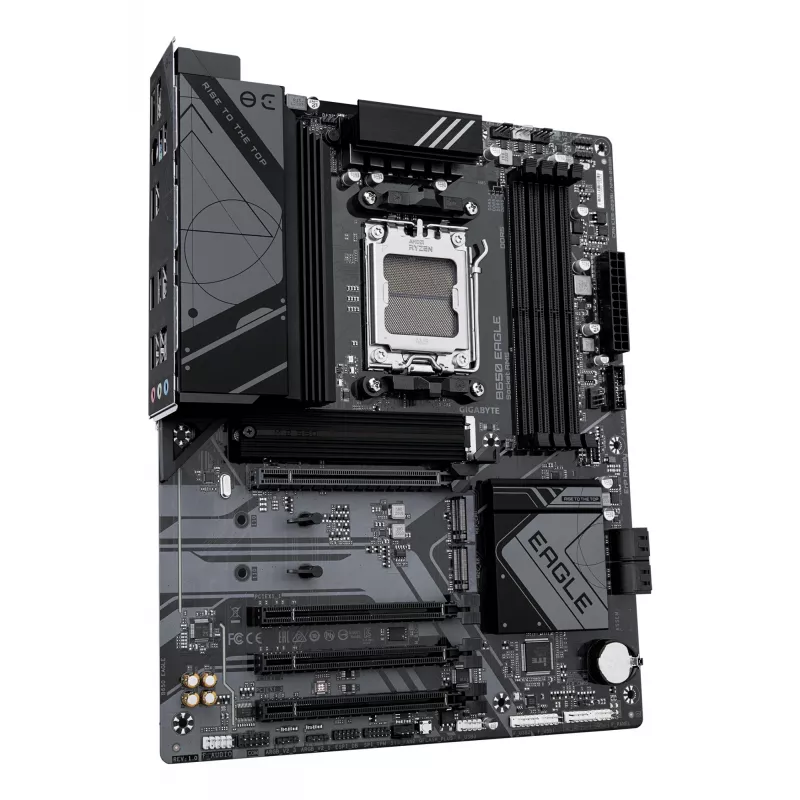

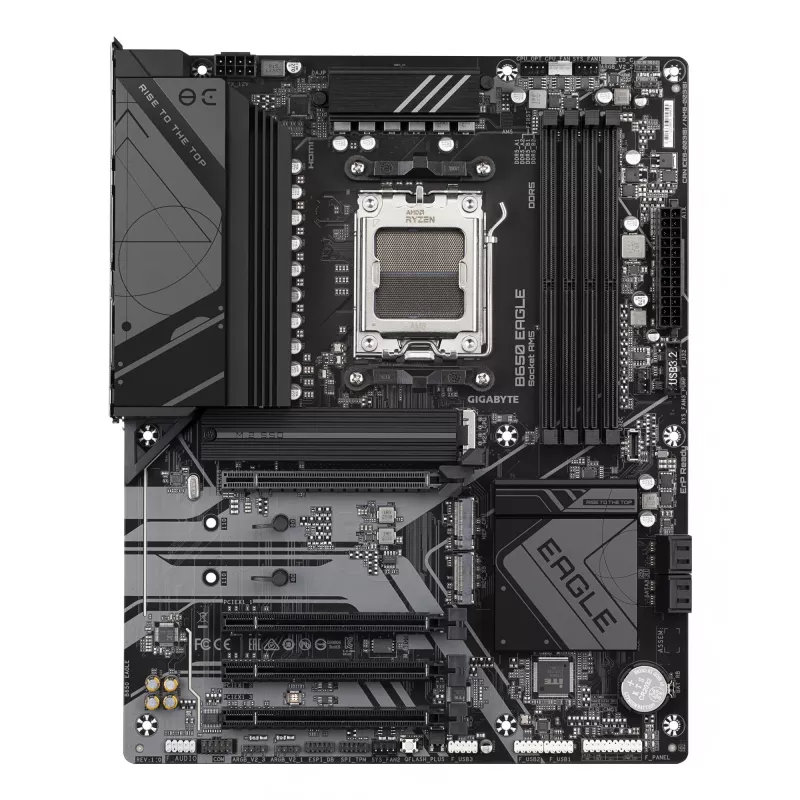

Motherboard GIGABYTE B650 EAGLE ATX, AMD B650 chipset, Socket AM5, DDR5, 4x DIMM, 3x M.2, PCIe 5.0 x16

The GIGABYTE B650 EAGLE motherboard is an ATX board based on the AMD B650 chipset designed for Socket AM5 processors. It supports AMD Ryzen 9000 Series CPUs and up to 256 GB of DDR5 memory across four slots (up to 7600 MHz OC). The board includes a 12+2+2 phases VRM design for stable power delivery, one PCIe 5.0 x16 slot, three PCIe x16 (Gen3.x) physical slots, two PCIe 4.0 M.2 slots, GbE LAN and multiple USB 3.2 Gen 2 ports, and RAID support for levels 0, 1 and 10.

Advantages

The B650 EAGLE offers a robust VRM configuration that supports high-performance AMD Ryzen 9000 CPUs and sustained workloads. Native DDR5 support and high memory overclocking capability enable improved bandwidth and responsiveness. Modern connectivity including PCIe 5.0 for next-generation graphics or expansion, dual M.2 PCIe 4.0 storage slots, GbE LAN and USB 3.2 Gen 2 ports ensures versatile system configurations and fast data transfer. ATX form factor provides multiple expansion options for add-in cards and storage.

Suitable for

• Gaming systems using AMD Ryzen 9000 Series processors
• Content creation workstations requiring fast DDR5 memory and NVMe storage
• General-purpose or professional PCs needing multiple expansion slots and RAID support

Key specifications

• Form factor: ATX
• Chipset: AMD B650
• Socket: Socket AM5
• Memory: 4 × DDR5 slots, up to 256 GB, up to 7600 MHz (OC)
• VRM design: 12+2+2 phases
• PCIe: 1 × PCIe 5.0 x16, 3 × PCIe x16 (Gen3.x) physical slots
• M.2: 2 × PCIe 4.0 M.2 slots
• Storage RAID: RAID 0, 1, 10 support
• Network: GbE LAN
• USB: USB 3.2 Gen 2 ports

How to use

Install the motherboard into a compatible ATX case and secure it on standoffs. Fit a supported Socket AM5 AMD Ryzen 9000 Series CPU following the socket manufacturer's installation steps, apply thermal paste, and install a compatible cooler. Populate DDR5 memory modules in the recommended slots for dual- or quad-channel operation, and connect storage devices to SATA or the M.2 slots as required. Install graphics cards or expansion cards into the PCIe slots, connect front-panel headers, power supply connectors (24-pin ATX and CPU power), and peripherals. Configure BIOS/UEFI settings to verify memory frequency, storage mode (including RAID if used), and boot order.

Recommendations

Use high-quality DDR5 memory modules and a capable CPU cooler to maintain system stability under load. When enabling memory overclocking or RAID arrays, back up important data and update the motherboard BIOS to the latest version for best compatibility with Ryzen 9000 Series processors and NVMe drives.
