ASRock Motherboard B650M-H/M.2+ AM5 AMD B650 2 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX

ASRock Motherboard B650M-H/M.2+ AM5 AMD B650 2 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX
ASRock Motherboard B650M-H/M.2+ AM5 AMD B650 2 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX
ASRock Motherboard B650M-H/M.2+ AM5 AMD B650 2 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX
ASRock Motherboard B650M-H/M.2+ AM5 AMD B650 2 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX
ASRock Motherboard B650M-H/M.2+ AM5 AMD B650 2 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX
36 mo.
ASRock Motherboard B650M-H/M.2+ AM5 AMD B650 2 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX
ASRock Motherboard B650M-H/M.2+ AM5 AMD B650 2 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX
ASRock Motherboard B650M-H/M.2+ AM5 AMD B650 2 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX
ASRock Motherboard B650M-H/M.2+ AM5 AMD B650 2 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX
ASRock Motherboard B650M-H/M.2+ AM5 AMD B650 2 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX
R1,916

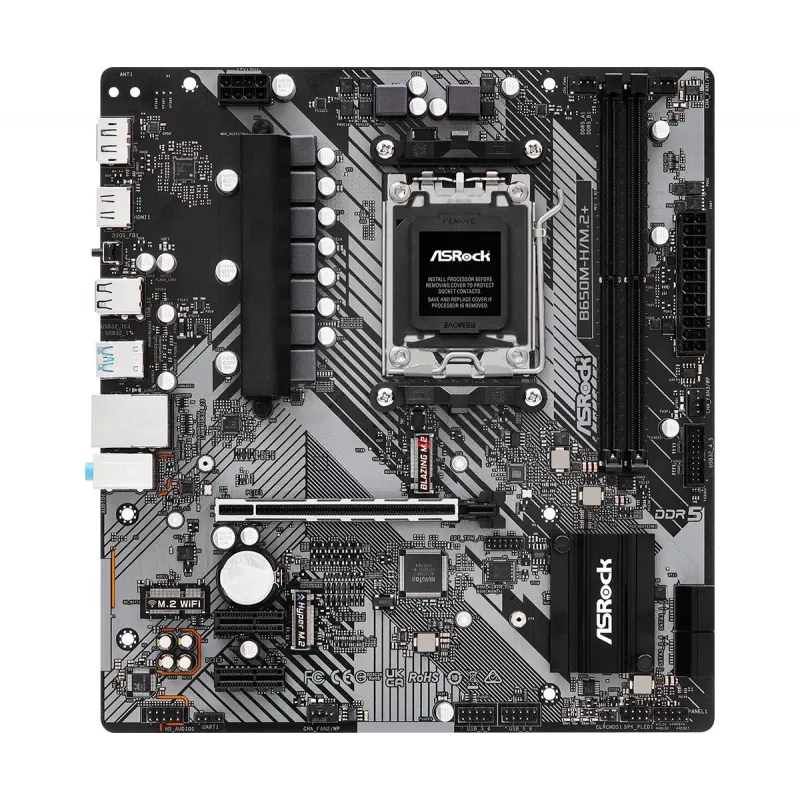

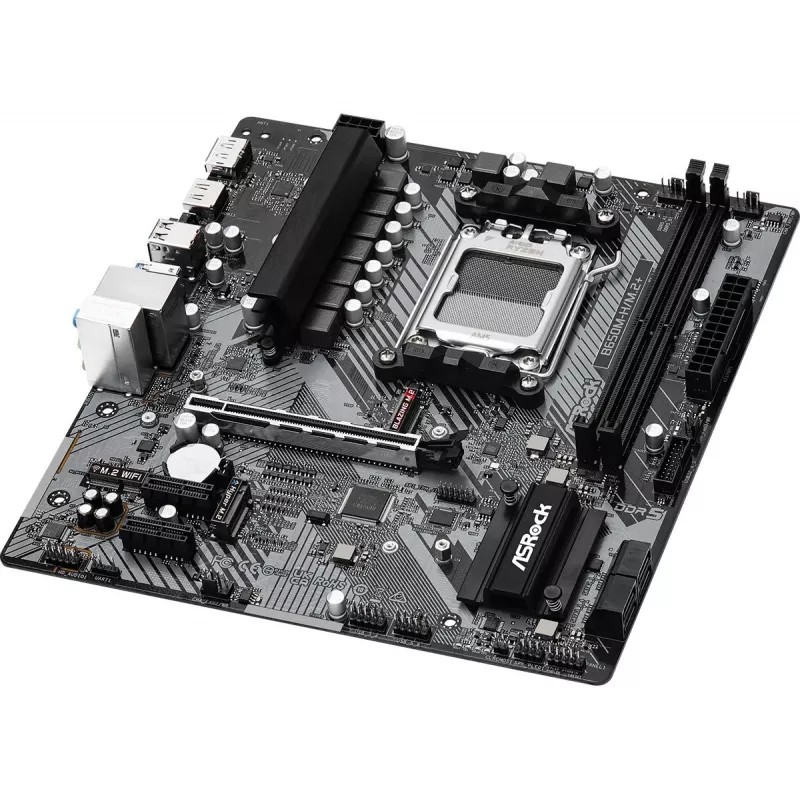

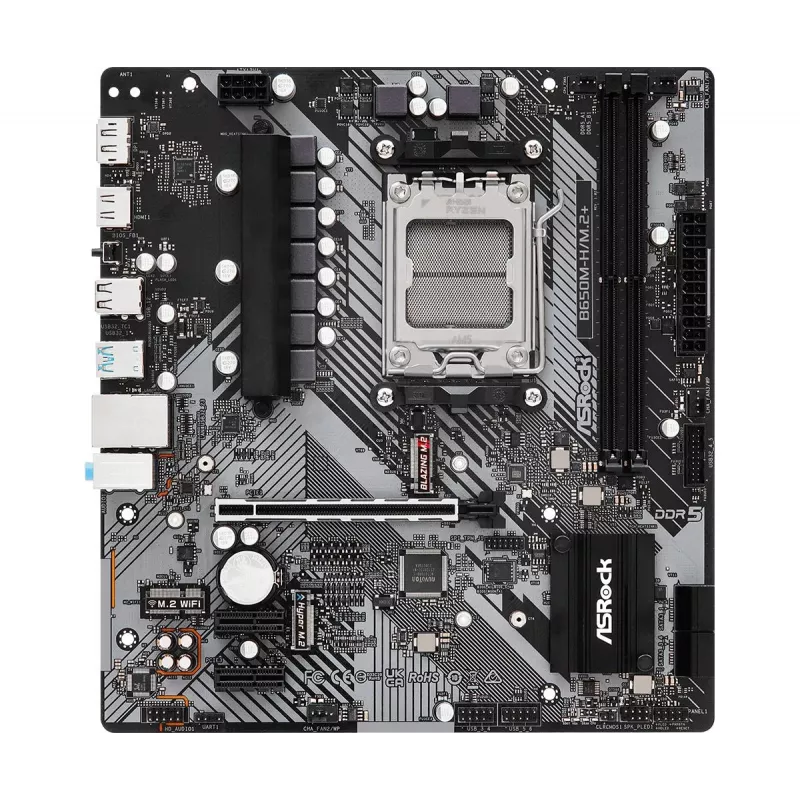

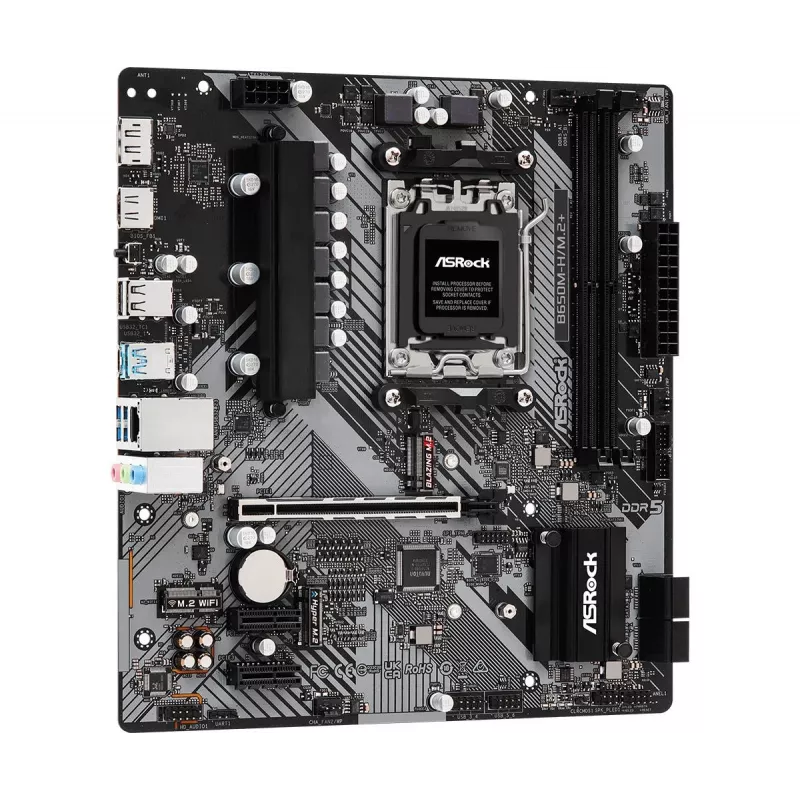

The ASRock B650M-H/M.2+ motherboard is built for the AMD Socket AM5 platform, supporting Ryzen 7000, 8000, and 9000 series processors. It features a robust 6+1+1 power phase design with Dr.MOS for stable performance, dual DDR5 memory slots with overclocking support up to 6400MHz, and integrated AMD ... Read More
Stock 18 Code 28715 Brand ASROCK Model B650M-H/M.2+ Warranty 3 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The ASRock B650M-H/M.2+ motherboard is built for the AMD Socket AM5 platform, supporting Ryzen 7000, 8000, and 9000 series processors. It features a robust 6+1+1 power phase design with Dr.MOS for stable performance, dual DDR5 memory slots with overclocking support up to 6400MHz, and integrated AMD RDNA 2 graphics for visual output. This micro ATX board offers a balanced mix of modern connectivity and expansion options, making it a solid foundation for a versatile desktop build.

Key features

  • Supports AMD Socket AM5 Ryzen 7000, 8000, and 9000 series processors
  • 2 x DDR5 DIMMs, support up to 6400MHz (OC) with a maximum capacity of 96GB
  • 1 x Blazing M.2 (PCIe Gen5 x4) and 1 x Hyper M.2 (PCIe Gen4 x4) for ultra-fast storage
  • Integrated AMD RDNA 2 graphics with HDMI 2.1 (TMDS/FRL 8G compatible) and DisplayPort 1.4 with DSC
  • Realtek ALC897 7.1 CH HD audio codec with Nahimic sound for immersive audio
  • 6 USB 3.2 Gen1 ports (3 rear, 1 rear Type-C, 2 front) and Realtek gigabit LAN
  • Supports ASRock automatic driver installer and BIOS Flashback for easy maintenance
Key Highlights
  • Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors
  • 6+1+1 Power Phase Dr.MOS, Supports up to 120W CPU
  • 2 x DDR5 DIMMs, supports up to 6400+(OC)
  • 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
  • Integrated AMD RDNA™ 2 Graphics *
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4)

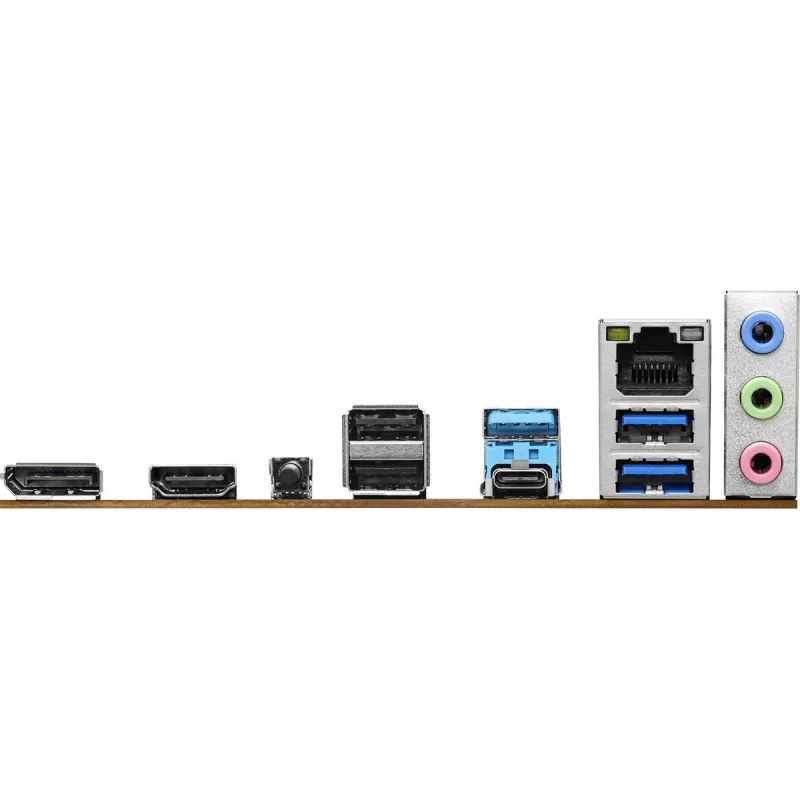

  • 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
  • Realtek Gigabit LAN
Specifications
ATX Power connector (24-pin)
Yes
Audio output channels
7.1 channels
BIOS type
UEFI AMI
Component for
PC
CPU fan connector
Yes
Depth
226 mm
DisplayPort version
1.4
DisplayPorts quantity
1
ECC ?ompatibility
ECC & Non-ECC
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Graphics card family
AMD
HDMI ports quantity
1
LAN controller
Realtek RTL8111H
Line-in
Yes
Maximum internal memory
96 GB
Maximum number of SMP processors
1
Memory channels
Dual-channel
Memory slots type
DIMM
Microphone in
Yes
Motherboard chipset
AMD B650
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
Number of M.2 (M) slots
1
Number of memory slots
2
Number of SATA III connectors
4
Number of storage drives supported
6
PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
Processor manufacturer
AMD
Processor socket
Socket AM5
RAID levels
0, 1, 10
RAID support
Yes
Supported memory types
DDR5-SDRAM
Supported storage drive interfaces
M.2, SATA III
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Wi-Fi
No
Width
244 mm
Windows operating systems supported
Windows 10 x64, Windows 11 x64
