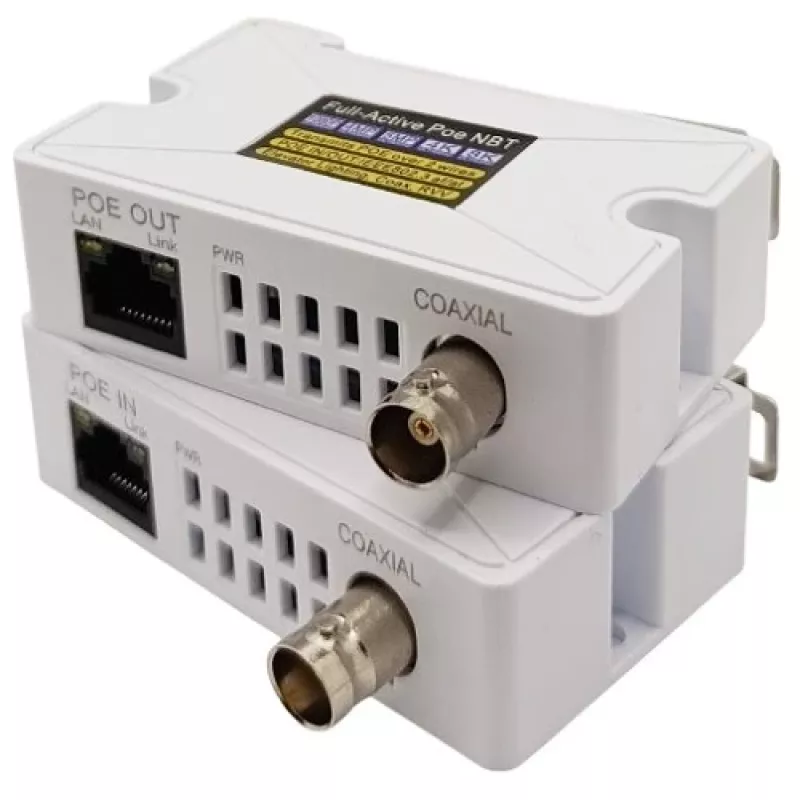

EXTRA DIGITAL PoE 10/100M Extender over Coaxial Cable, up to 500 m, Kit

Running Ethernet cables beyond 100 meters often leads to signal degradation or costly infrastructure upgrades. This PoE extender kit leverages existing coaxial cabling to extend both network connectivity and power delivery up to 500 meters, making it an ideal solution for surveillance systems, remote devices, or retrofitting older buildings without the need for new wiring.

Who is it for

Installers and IT technicians who need to connect IP cameras, access points, or other PoE-powered devices in locations far from the main switch. It is also perfect for upgrading analog CCTV systems to IP using the same coax runs.

Main features

• Extends 10/100 Mbps Ethernet and PoE power up to 500 m over RG59, RG6, or RG11 coaxial cable
• Supports IEEE 802.3af/at PoE, delivering up to 30 W to remote devices
• Plug-and-play installation with BNC connectors and durable metal housing
• Includes transmitter, receiver, and power adapters for a complete point-to-point link

Specifications

• Transmission technology: Ethernet over Coax (EoC)
• Ethernet standard: IEEE 802.3u 10/100Base-TX
• PoE standard: IEEE 802.3af/at (PoE/PoE+)
• Max data rate: 100 Mbps
• Max distance: 500 m
• Coax compatibility: RG59, RG6, RG11
• Coax connector: BNC female
• Ethernet port: 1x RJ45 per unit
• Power input: DC 12 V or PoE
• LED indicators: Power, Link/Activity, PoE status
• Operating temperature: -10°C to 55°C
• Certifications: CE, FCC, RoHS

Tips

For best performance, use high-quality coaxial cable and ensure connectors are properly crimped. If the remote device requires more than 30 W, consider a local power source.
