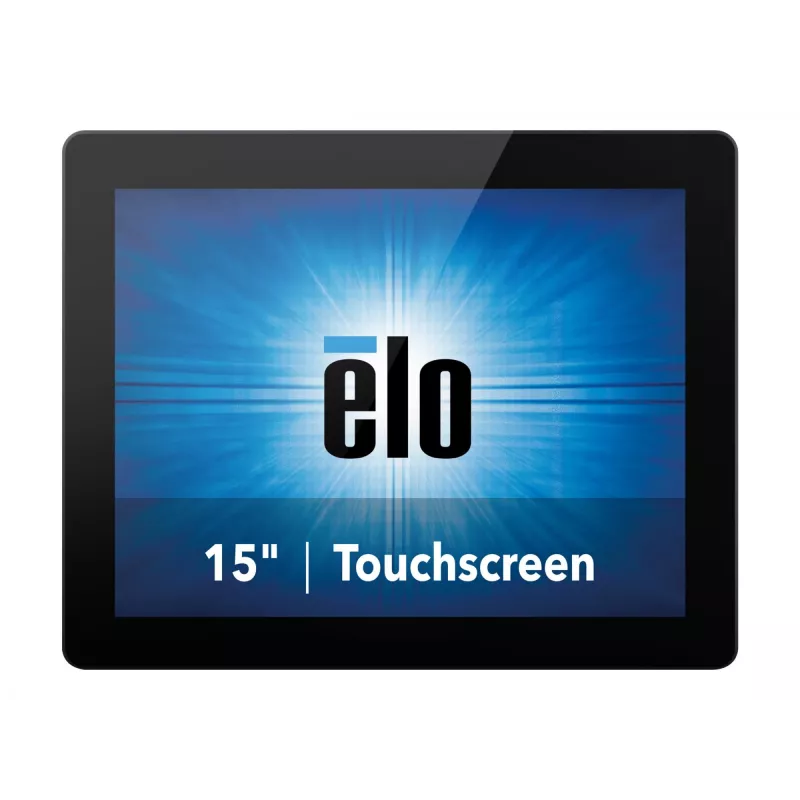

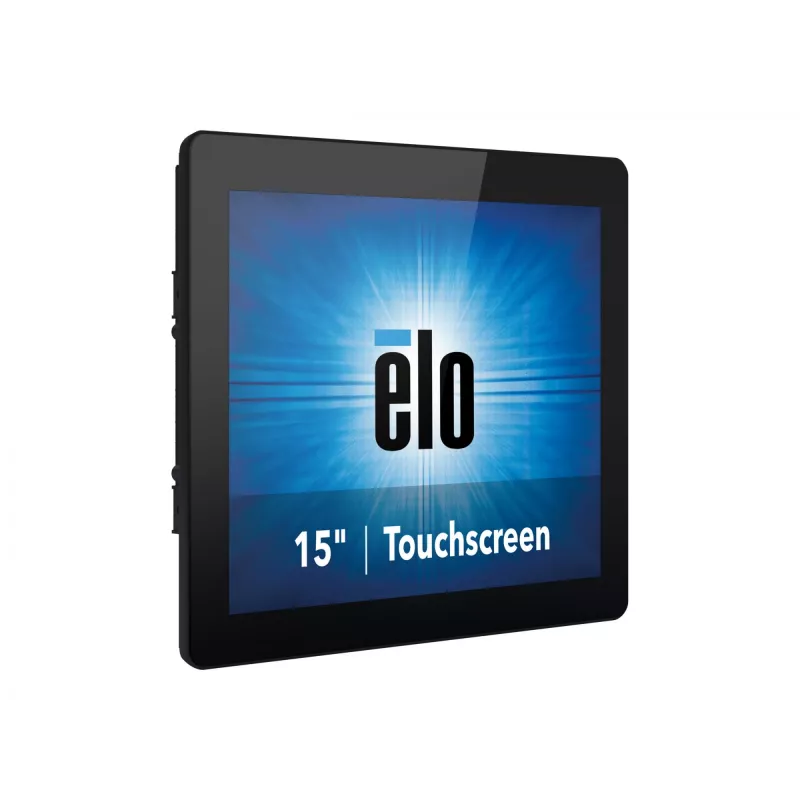

LCD monitors 1590L 15 inch Touchscreen HDMI VGA USB Zero-Bezel

The Elo 1590L 15-inch open-frame LCD touch display combines a slim, zero-bezel design with an energy-saving LED backlight and proven Elo touchscreen technology. With a 15-inch diagonal and 1024 x 768 resolution, the display delivers clear images and accurate touch responses. It includes HDMI and VGA video inputs and USB for touch/data connection, and is designed for integration into kiosks, retail self-service, casino/amusement terminals and industrial automation applications.

Advantages

The 1590L uses an efficient LED backlight for reduced power consumption and lower heat generation while maintaining strong contrast (700:1) and good light transmission. The touch sensor provides stable, drift-free operation for accurate touch detection. Projected capacitive (PCAP) variants offer a seamless two-glass multi-touch surface with up to 10-touch capability and thru-glass two-touch support for use with latex or cloth gloves; single-touch options include AccuTouch five-wire resistive, IntelliTouch SAW or anti-vandal SecureTouch SAW. The unit is sealed against dust, dirt and liquids and can achieve front-side IP65 protection when the PCAP option is sealed into an enclosure. Elo’s control of design and tooling supports long-term product availability and the display is backed by a three-year standard warranty.

Suitable for

• Kiosks and information terminals
• Retail self-service and point-of-sale displays
• Casino and amusement interactive displays
• Industrial automation and control panels

Key specifications

• Display diagonal: 15" (38.1 cm)
• Resolution: 1024 x 768
• Display technology: LCD with LED backlight
• Touch technologies: PCAP multi-touch (TouchPro 2GS), AccuTouch resistive, IntelliTouch SAW, SecureTouch SAW
• Inputs: HDMI, VGA; Touch/data: USB
• Response time: 16 ms
• Contrast ratio (typical): 700:1
• Aspect ratio: 4:3
• VESA mounting: Yes
• Colour: Black

How to use

Mount the open-frame 1590L into the final enclosure or terminal using the provided VESA-compatible mounting points. Connect video using HDMI or VGA and connect the USB cable for touch functionality and data. If using a PCAP sealed variant, install the touchscreen so the front surface is sealed to meet IP65 front protection. Power the display and adjust brightness/contrast via the on-screen menu to match ambient lighting. Install Elo drivers and any required software on the host system to enable multi-touch gestures and full touch functionality.

Recommendations

Use the PCAP TouchPro 2GS option when multi-touch and glove-through capability are required; choose AccuTouch, IntelliTouch or SecureTouch for single-touch or vandal-resistant installations. Seal the front of the display into the enclosure to achieve IP65 protection when needed, and follow Elo’s driver and lifecycle guidance for long-term reliability.
