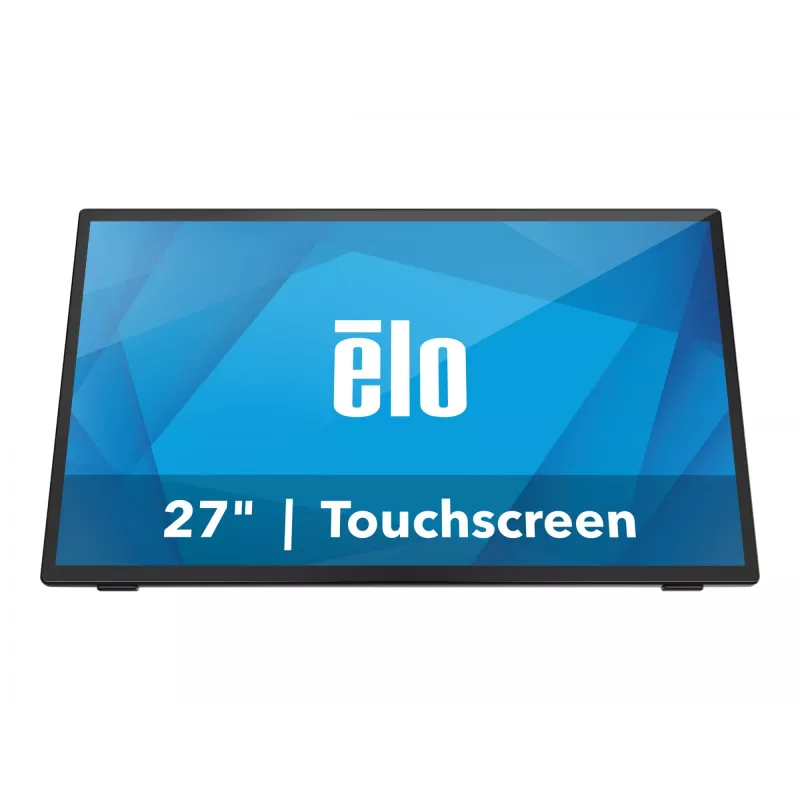

Monitor Elo Touch Solutions Elo 2770L 27 inch Touchscreen LED 1920 x 1080

The Elo Touch Solutions 2770L is a 27" touchscreen LED monitor with Full HD (1920 x 1080) resolution and a 16:9 aspect ratio. Designed for interactive environments, it offers wide 178° viewing angles, a 14 ms response time and a flat TFT panel. The display integrates built-in speakers and a USB 2.0 hub, and supports VESA mounting for desktop or wall installation.

Advantages

The 2770L reduces bezel width by up to 70% compared with similar models, providing a more compact visible area. Its surface is scratch-resistant and rated IK07 for impact resistance. Energy efficiency meets ES8.0 standards and the monitor delivers typical brightness of 270 cd/m² with a 1000:1 contrast ratio. On-screen display (OSD) controls can be operated directly via the touchscreen or using the rear-mounted controls.

Suitable for

• Interactive kiosks and self-service terminals
• Point-of-sale and retail displays
• Reception desks and information points
• Education and training environments
• Workstations requiring touch input with integrated audio

Key specifications

• Display size: 27" (diagonal)
• Resolution: 1920 x 1080 (Full HD)
• Panel type: TFT, LED backlight
• Aspect ratio: 16:9
• Viewing angles: 178° horizontal / 178° vertical
• Response time: 14 ms
• Contrast ratio (typical): 1000:1
• Brightness (typical): 270 cd/m²
• Built-in speakers and USB 2.0 hub
• VESA-compatible mounting
• Scratch-resistant glass, IK07 impact rating
• Energy class (SDR): E; consumption approx. 18 kWh/1000 h
• Colour: Black

How to use

Connect the monitor to a computer or compatible device using the supplied video and USB cables; use the USB hub for touch data and peripheral connections. Mount on a desk or attach to a VESA wall bracket as needed. Operate touchscreen functionality directly on the glass surface for pointer and gesture input, and access OSD settings either by touching the screen controls or using the rear-mounted buttons.

Recommendations

For reliable touch performance, keep the screen surface clean and avoid abrasive cleaners; use a soft, lint-free cloth and manufacturer-recommended cleaning solution. When wall-mounting, ensure the VESA mount supports the monitor weight and follow local installation guidelines.
