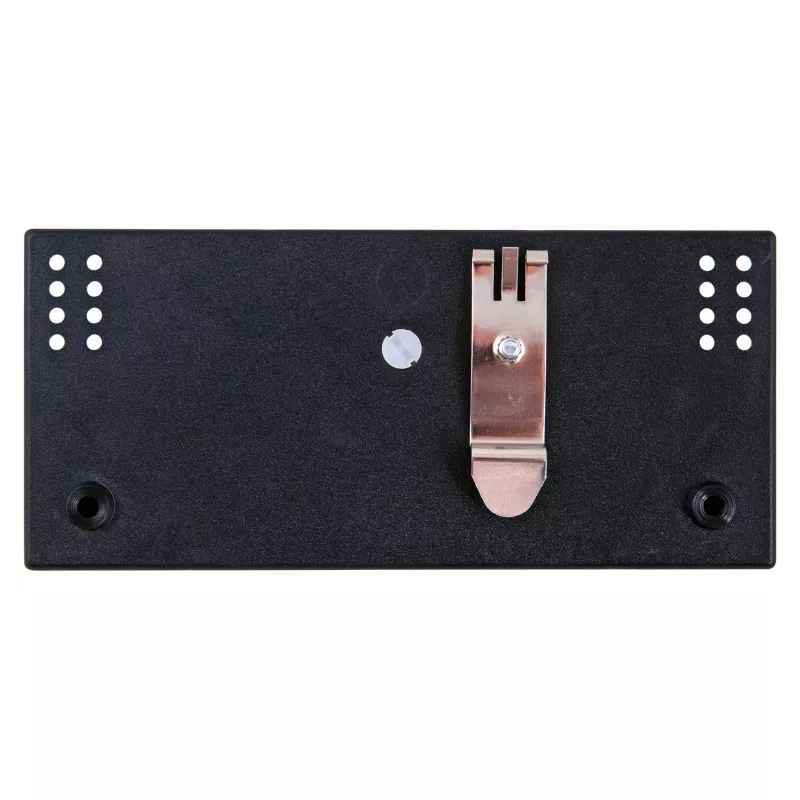

EFB-Elektronik LWL Mini Splice Distributor Plastic (53704.1)

The EFB-Elektronik LWL Mini Splice Distributor (model 53704.1) is a compact and robust fiber optic distribution solution designed for FTTH, FTTD, LAN, and small office applications. Manufactured by EFB-Elektronik, this plastic enclosure provides reliable splice management and cable termination in a space-saving wall-mount design.

Advantages

This mini splice distributor offers easy installation and maintenance with its wall-mountable design and included mounting accessories. The IP40-rated housing protects internal components from dust and light moisture, while the light grey (RAL 7035) color blends seamlessly into professional environments. With a capacity for up to 4 simplex fibers and compatibility with SC Simplex and LC Duplex adapters, it provides flexibility for various fiber optic networks.

Suitable for

• FTTH (Fiber to the Home) installations
• FTTD (Fiber to the Desk) networks
• Local Area Networks (LAN)
• Small office and home office fiber terminations

Key specifications

• Product Type: Fiber Optic Mini Splice Distributor
• Enclosure Material: Plastic
• Mounting Type: Wall Mount
• Max. Fiber Capacity: 4 Fibers (Simplex)
• Compatible Adapter Types: SC Simplex, LC Duplex
• Number of Adapter Cutouts: 2
• Splice Holder Capacity: 4 Splices
• Ingress Protection: IP40
• Color: Light Grey (RAL 7035)
• Number of Cable Entries: 2
• Cable Entry Diameter (Max.): 16 mm
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -20°C to +70°C
• Humidity Range: 10% to 90% non-condensing
• Certifications: RoHS Compliant

Recommendations

For optimal performance, use with compatible SC Simplex or LC Duplex adapters and crimp or shrink splice protectors. Ensure proper cable entry sealing for environments requiring IP40 protection.
