EFB Electronics FTTX Compact Box Pre-assembled 2xLC/APC Duplex G.657.A2 50m

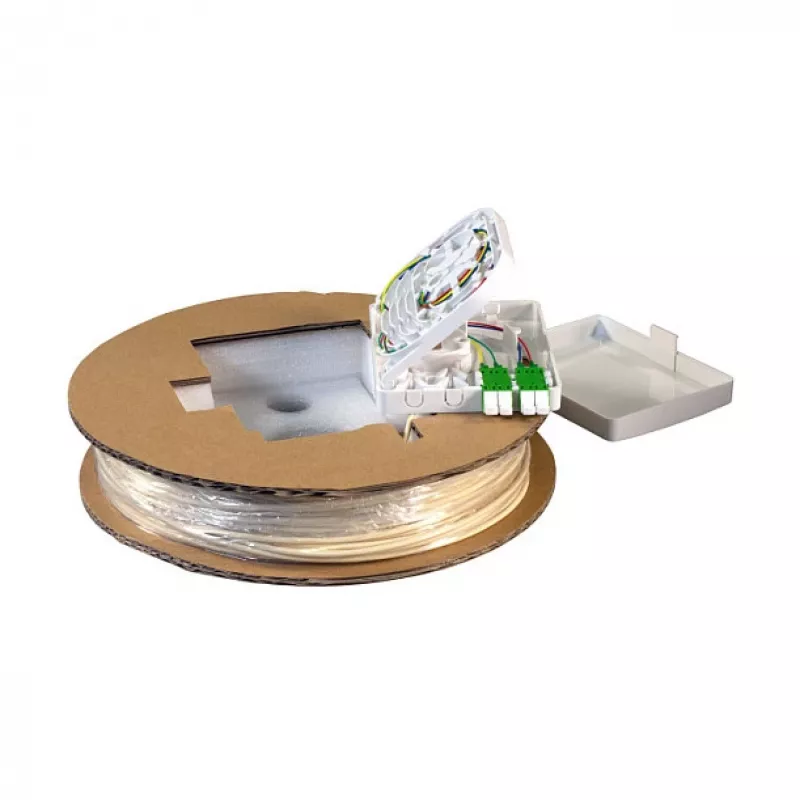

The EFB Electronics FTTX Compact Box is a pre-assembled fiber optic termination box designed for FTTX, FTTH, and FTTB applications. It features 2xLC/APC Duplex connectors and a 50-meter pre-terminated drop cable with bend-insensitive G.657.A2 fiber. The compact, wall-mountable housing is made of ABS plastic with IP54 protection, ensuring reliable performance in indoor and outdoor environments.

Advantages

Pre-assembled for quick installation, reducing on-site splicing time. Bend-insensitive fiber allows for tight bends without signal loss. High return loss (>60 dB) and low insertion loss (<0.3 dB) ensure excellent signal quality. LSZH cable jacket provides safety in case of fire.

Suitable for

• FTTX network deployments
• FTTH (Fiber to the Home) installations
• FTTB (Fiber to the Building) connections
• Indoor and outdoor wall-mounted termination points

Key specifications

• Product Type: Fiber Optic FTTX Compact Box
• Pre-termination: Yes
• Fiber Optic Connector Type: LC/APC Duplex
• Number of Duplex Ports: 2
• Total Fiber Count: 4
• Fiber Mode: Single-mode (SM)
• Fiber Standard: ITU-T G.657.A2 (Bend-Insensitive)
• Cable Length: 50 m
• Cable Type: Pre-terminated Drop Cable
• Insertion Loss (Max.): < 0.3 dB
• Return Loss (Min.): > 60 dB
• Housing Material: ABS Plastic
• Mounting: Wall Mountable
• Protection Class: IP54
• Color: White
• Operating Temperature: -20°C to +70°C
• Application: FTTX, FTTH, FTTB
• Cable Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 3 mm
• Internal Splice Type: Fusion Splice

Recommendations

This pre-assembled FTTX compact box is ideal for network installers seeking a reliable, high-performance termination solution. Its bend-insensitive fiber and robust housing ensure long-term durability and signal integrity.
