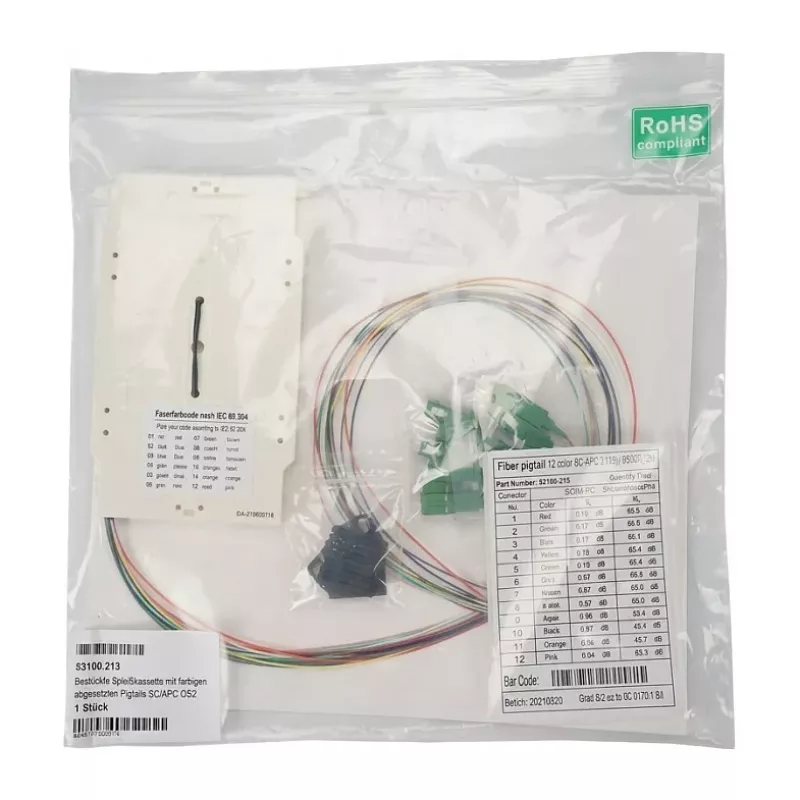

EFB Elektronik Pre-loaded Splice Cassette with Coloured Pigtails SC/APC OS2 - 0.8 m

The EFB Elektronik Pre-loaded Splice Cassette is a high-quality fiber optic management solution designed for efficient splicing and cable organization in distribution boxes, patch panels, and enclosures. This cassette comes pre-loaded with 12 coloured SC/APC pigtails, each 0.8 meters long, made from single-mode OS2 fiber (G.657.A1/A2). The pigtails are color-coded according to DIN VDE 0888 standards for easy identification and feature a 0.9 mm buffered fiber diameter with LSZH (Low Smoke Zero Halogen) jacket material, ensuring safety and durability.

Advantages

Pre-loaded with pigtails saves installation time and reduces the risk of splicing errors. The coloured pigtails simplify fiber identification and management. Compatible with both fusion and mechanical splices, offering flexibility in deployment. The cassette is made from robust ABS plastic, providing reliable protection for splices. Typical insertion loss of less than 0.3 dB and return loss greater than 60 dB ensure excellent signal performance.

Suitable for

• Fiber optic cable management in distribution boxes and patch panels
• FTTH (Fiber to the Home) and terminal box applications
• Data center and telecommunications infrastructure
• Any environment requiring organized splicing and low-loss connections

Key specifications

• Product Type: Fiber Optic Splice Cassette
• Fiber Type: Single-mode OS2 (G.657.A1/A2)
• Connector Type: SC/APC
• Number of Fibers: 12
• Pigtail Length: 0.8 m
• Pigtail Diameter: 0.9 mm (buffered fiber)
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 60 dB
• Operating Temperature: -20°C to +70°C
• Cassette Material: ABS plastic
• Pigtail Jacket Material: LSZH
• Standard Compliance: RoHS, REACH

Recommendations

This splice cassette is ideal for professionals seeking a pre-terminated solution for quick and reliable fiber splicing. Ensure compatibility with your splice cassette holder or frame before installation. For optimal performance, use with fusion splicers and follow standard splicing procedures.
