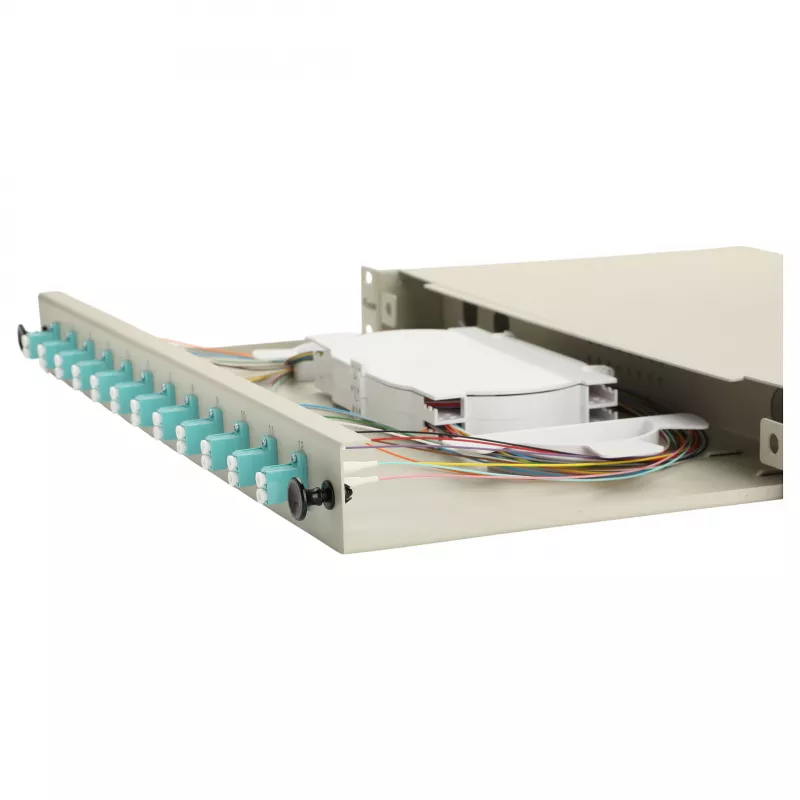

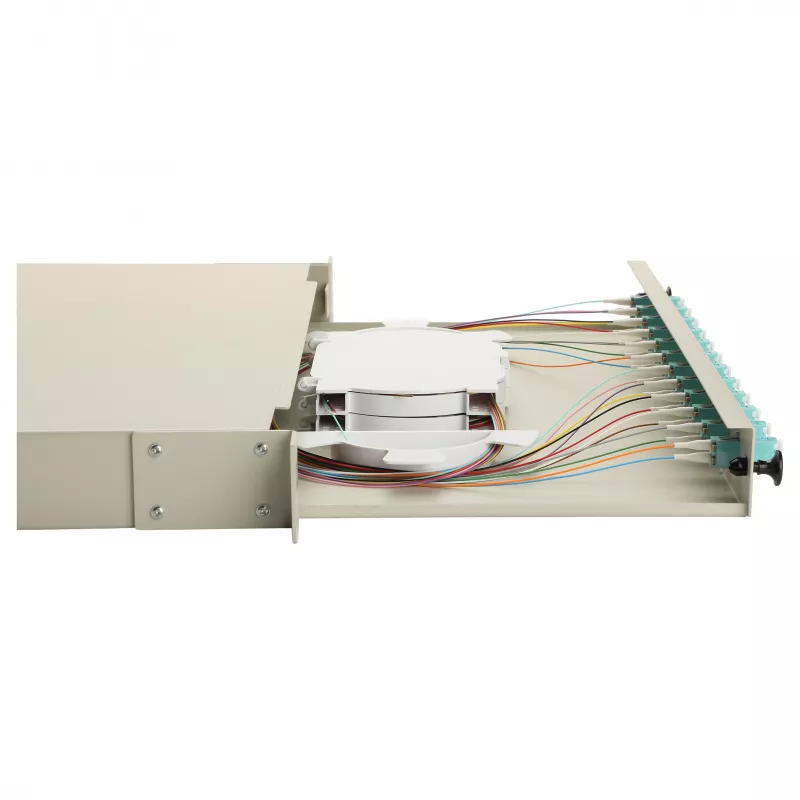

Equip 12-Port Fiber Optic Splice Box, LC Duplex, OM3, 1U, Equipped, Grey

Designed for tidy fiber management in racks, the Equip 12-Port Fiber Optic Splice Box packs 12 LC Duplex ports and full OM3 multimode capacity into just 1U of vertical space. It arrives fully equipped with adapters and pigtails, so you can start splicing immediately.

Overview

This 19-inch rackmount splice box is a complete solution for terminating and distributing up to 24 fibers in a single unit. The steel chassis in light grey (RAL 7035) provides a robust home for the included 12 LC Duplex adapters and 24 LC OM3 pigtails (0.9mm, 2m). Two 12-holder splice trays are onboard, giving you a total capacity of 24 splices – exactly what you need for a full OM3 deployment.

What stands out

• Fully equipped from the factory – all 12 LC Duplex adapters and 24 pigtails are pre-selected for OM3.
• Compact 1U design makes it perfect for high-density racks and cabinets.
• Four rear cable entries allow neat routing from below or above.
• Rugged steel construction with a durable grey finish.

Technical details

• Ports: 12 x LC Duplex, 24 fibers total
• Fiber mode: Multimode OM3
• Adapters: 12 x LC Duplex included
• Pigtails: 24 x LC OM3 (0.9mm, 2m) included
• Splice trays: 2 x 12-splice capacity
• Cable entries: 4x rear
• Housing: Steel
• Colour: Grey (RAL 7035)
• Mounting: 19-inch rack, 1U

Our verdict

If you need a dependable, pre-populated splice box for an OM3 fiber infrastructure, this Equip unit delivers. It saves time on component sourcing, fits neatly into standard 19-inch racks, and offers clean, professional cable organisation.
