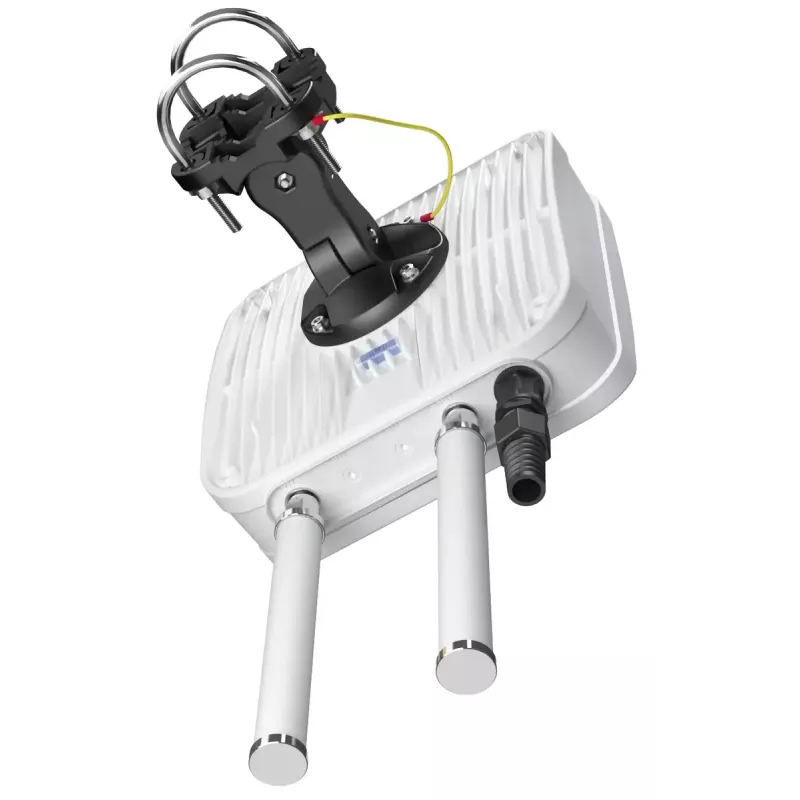

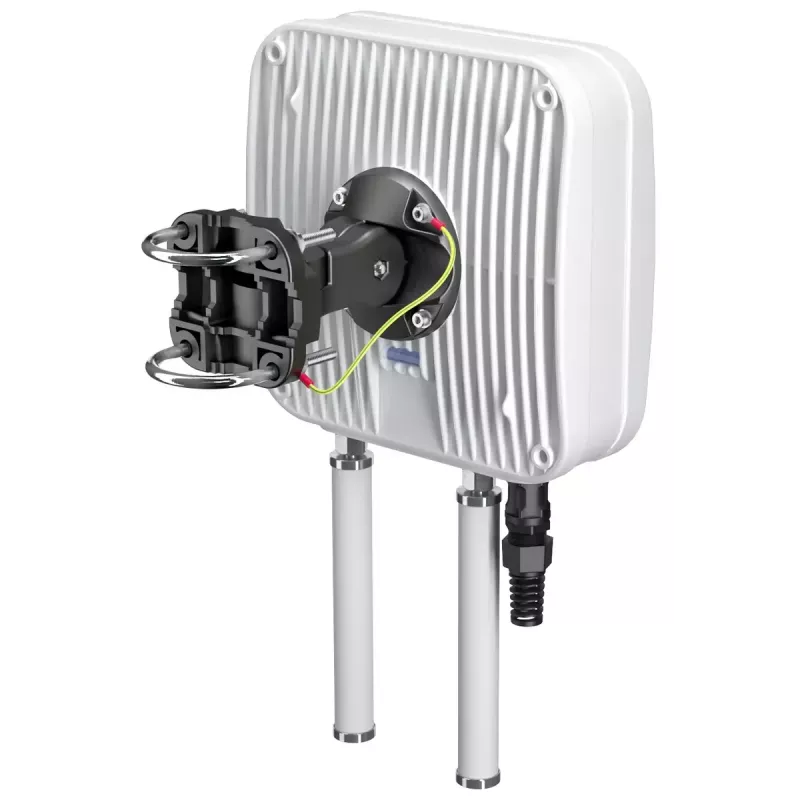

Directional network antenna QuWireless QuMax PoE/LAN, multi-band 0.694–2.7 GHz & 2.4–2.5 GHz, max gain 6 dBi, vertical polarization

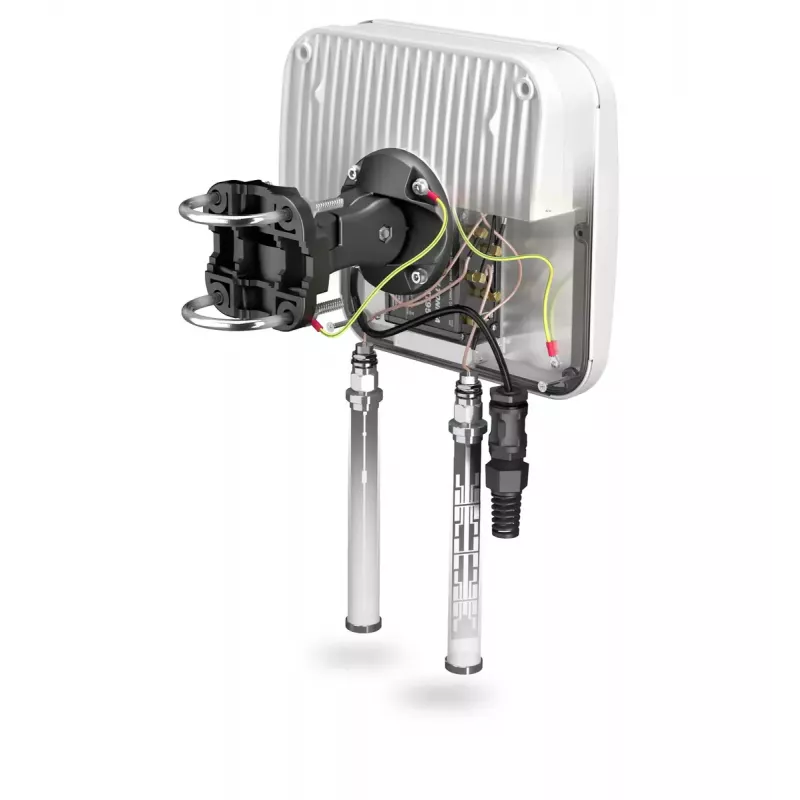

QuWireless QuMax PoE/LAN is a directional network antenna engineered for fixed installations and point-to-point or point-to-multipoint wireless links. The all-in-one unit integrates a high-power multi-band directional LTE antenna, an outdoor Wi‑Fi omni antenna and a GPS antenna, and provides a place to install compatible Teltonika routers inside an IP67 enclosure. It supports multiple frequency ranges (0.694–0.96 / 1.7–2.2 / 2.2–2.7 GHz and 2.4–2.5 GHz), offers vertical polarization and a maximum gain of 6 dBi. The enclosure and connector design allow direct PoE/LAN connectivity for network devices and simplify deployment in outdoor and indoor network environments.

Advantages

The QuMax antenna offers consolidated functionality in a single housing: directional LTE performance for extended range, integrated Wi‑Fi omni coverage and GPS support, reducing the need for multiple separate antennas. Its multi-band design covers low and mid cellular frequencies as well as the 2.4 GHz Wi‑Fi band, providing compatibility with a wide set of wireless deployments. Built to accept compatible Teltonika routers inside an IP67-rated enclosure, the unit is suitable for industrial fixed installations where weather protection and cable consolidation are required. Vertical polarization and a 6 dBi peak gain help to improve signal directionality and link stability over longer distances.

Suitable for

• Point-to-point and point-to-multipoint long-distance wireless links
• Fixed outdoor installations requiring weatherproof equipment
• Deployments combining LTE backhaul, Wi‑Fi coverage and GPS positioning
• Industrial and remote sites where a router (Teltonika RUT956/RUT955/RUT906) is installed inside the enclosure

Key specifications

• Frequency bands: 0.694–0.96 / 1.7–2.2 / 2.2–2.7 GHz and 2.4–2.5 GHz
• Maximum antenna gain: 6 dBi
• Polarization: vertical
• Connectivity: PoE/LAN interface for integrated devices
• Physical dimensions: 272 × 96 × 276 mm
• Weight: 1.8 kg
• Colour: white
• Integrated components: directional LTE antenna, outdoor Wi‑Fi omni antenna, GPS antenna
• Enclosure: designed to accept compatible routers inside IP67 housing (router sold separately)

How to use

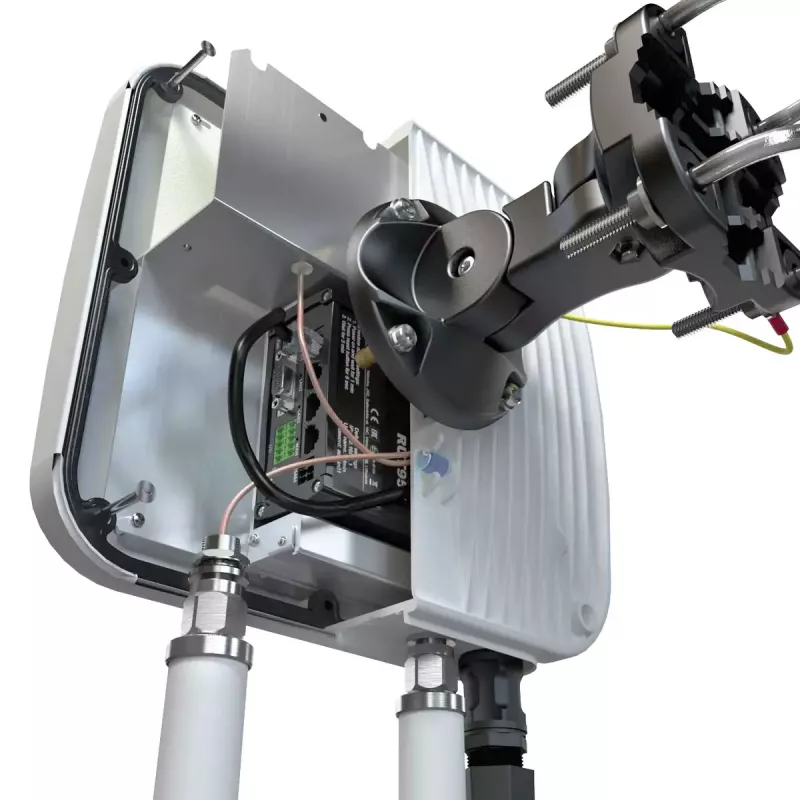

Mount the antenna on a suitably rated mast or wall bracket oriented toward the remote base station or link endpoint to maximize directional performance. Install the compatible router model inside the antenna enclosure according to the router manufacturer’s instructions and ensure IP67 seals are properly engaged. Connect the router or network device via PoE/LAN to provide both data and power where supported. Fine‑tune pointing and check link metrics during commissioning to achieve the best signal level and stability.

Recommendations

Select an elevated mounting position with a clear line of sight to the remote site to benefit from the antenna’s directional characteristics. Verify compatibility with the intended router model before installation and follow local regulations for outdoor antenna placement and grounding. For improved Wi‑Fi coverage, account for the integrated omni antenna pattern when planning indoor or near‑site coverage.
