Directional network antenna QuWireless AXRL — 7 dBi, 0.694–0.96 / 1.7–2.2 / 2.2–2.7 GHz, PoE/LAN, dual polarization

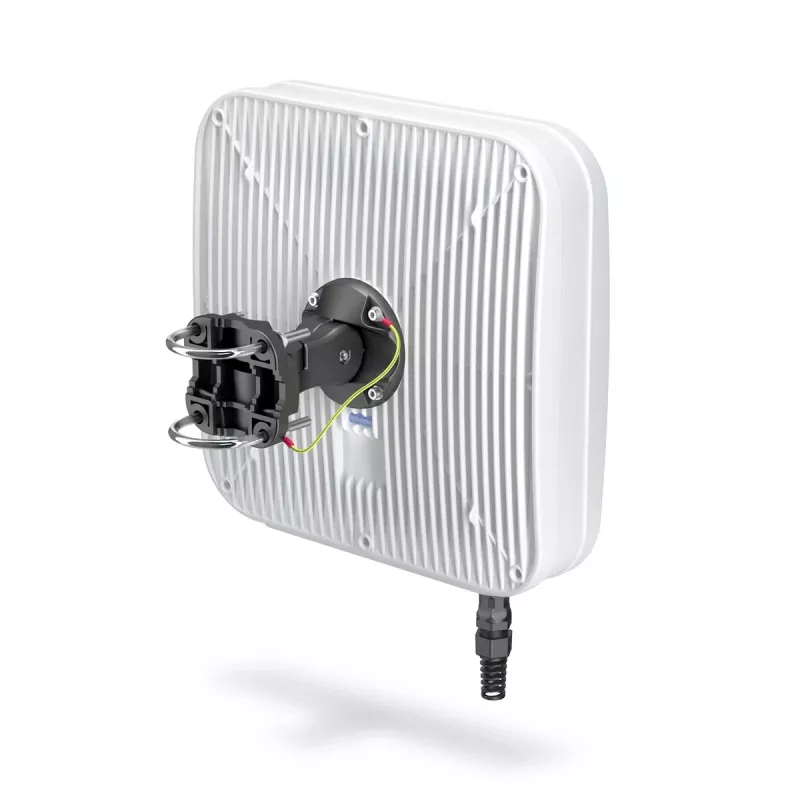

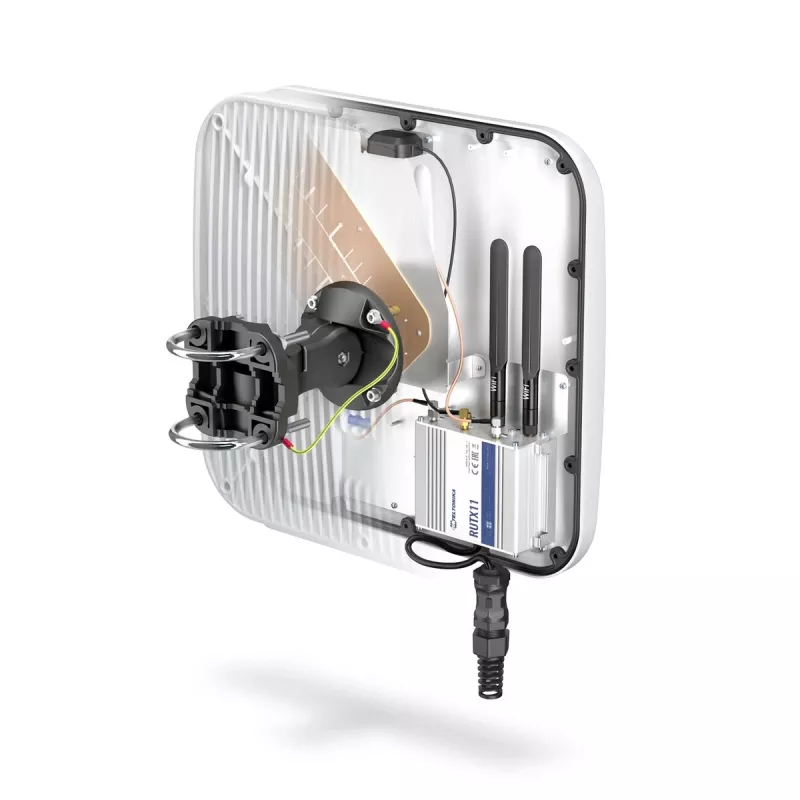

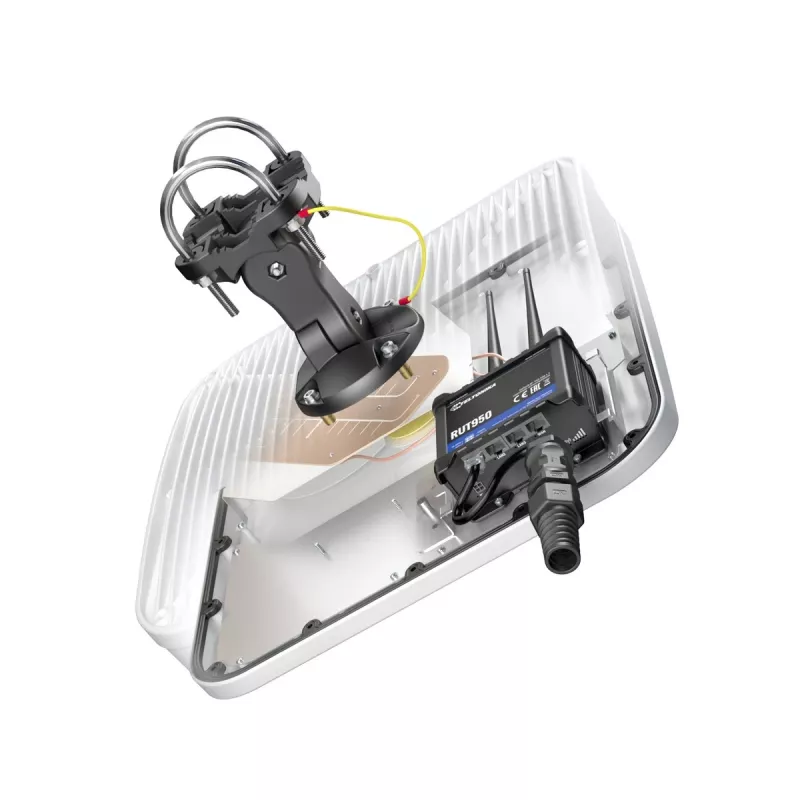

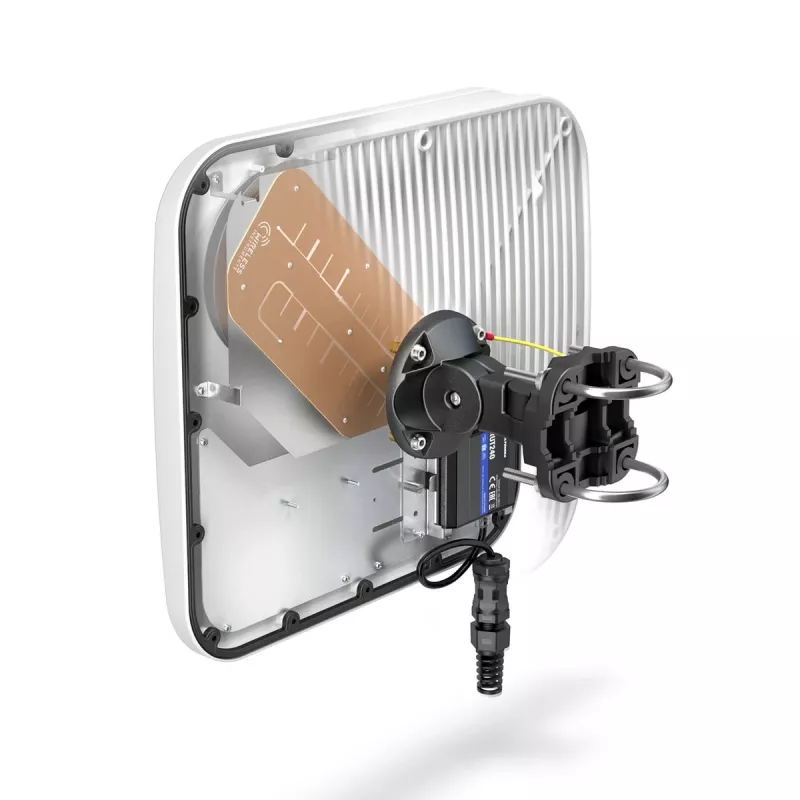

QuWireless AXRL is a directional network antenna offering up to 7 dBi gain across three cellular frequency ranges: 0.694–0.96 GHz, 1.7–2.2 GHz and 2.2–2.7 GHz. Housed in a compact white enclosure (392×392×99 mm) and weighing 3.7 kg, the unit combines dual polarization with a PoE/LAN connector option to support point-to-point links, sector deployments and fixed wireless access. The enclosure includes an internal mounting area designed to accept selected Teltonika routers for integrated outdoor installations, and provides space for genuine Teltonika GPS and Wi‑Fi antennas when required.

Advantages

The AXRL delivers multi-band coverage in a single directional package, simplifying deployment where multiple cellular bands are required. Dual polarization improves link reliability and throughput by supporting both polarities of radio signals. Its compact IP-capable enclosure allows mounting and protection of compatible Teltonika routers inside the antenna housing, reducing external cabling and protecting equipment from weather. The 7 dBi maximum gain balances directional reach with manageable antenna size for industrial and fixed-site installations.

Suitable for

• Cellular backhaul and long-distance links where directional gain is needed
• Fixed wireless access (FWA) to provide stable subscriber connections
• Private point-to-point or sector deployments in industrial or rural locations
• Integrated outdoor installations using compatible Teltonika routers

Key specifications

• Frequency coverage: 0.694–0.96 GHz, 1.7–2.2 GHz, 2.2–2.7 GHz
• Maximum antenna gain: 7 dBi
• Polarization: dual polarization
• Connector type: PoE/LAN (integrated port for network and power/pass-through)
• Enclosure colour and finish: white
• Dimensions: 392 × 392 × 99 mm
• Weight: 3.7 kg

How to use

Mount the AXRL on a suitable mast or wall bracket with clear line of sight toward the remote base station or target antenna. Install the compatible Teltonika router inside the antenna enclosure following the router manufacturer’s mounting instructions and ensure all internal antenna connections (GPS/Wi‑Fi) are correctly positioned if used. Connect the PoE/LAN port to a power injector or switch that supports the required Ethernet/PoE configuration, then configure network parameters on the router for the chosen cellular or IP link. Fine-tune antenna aim and polarization alignment while monitoring signal strength and throughput to achieve optimal performance.

Recommendations

For long-distance links and fixed installations, use a sturdy mast or pole and secure mounting hardware to minimize movement. When integrating a router inside the enclosure, verify the router model compatibility list and ensure proper sealing of cable entries to maintain weather protection. Periodically inspect mounting brackets and cable glands for corrosion or loosening, and realign the antenna if link quality degrades after severe weather.
