LevelOne 5dBi/8dBi 2.4GHz/5GHz Dual Band Omnidirectional Antenna, Indoor/Outdoor

The LevelOne OAN-4058 is a dual-band omnidirectional antenna for 2.4 GHz and 5 GHz wireless networks. It supports IEEE 802.11a/b/g/n/ac standards, features an N-type female connector and compact dimensions (22 mm x 203 mm), and is suitable for both indoor and outdoor mounting. Outdoor installations benefit from an IP65-rated weatherproof housing that resists rain, snow, dust and temperatures from -30°C to 60°C. The antenna provides 5 dBi gain on 2.4 GHz and up to 8 dBi on 5 GHz.

Advantages

The antenna’s dual-band design and omni-directional radiation pattern provide consistent coverage across 2.4 GHz and 5 GHz bands. A compact form factor and N-type female connector simplify installation on many wireless devices and masts. The IP65 weatherproof enclosure and wide operating temperature range make the unit durable for outdoor use while remaining suitable for indoor deployments.

Suitable for

• Extending Wi‑Fi coverage in homes and small offices
• Outdoor wireless access points and point-to-multipoint links
• Integrating with routers, gateways and wireless radios that use N-type female connectors

Key specifications

• Frequency bands: 2.4 GHz and 5 GHz
• Gain: 5 dBi (2.4 GHz) / 8 dBi (5 GHz)

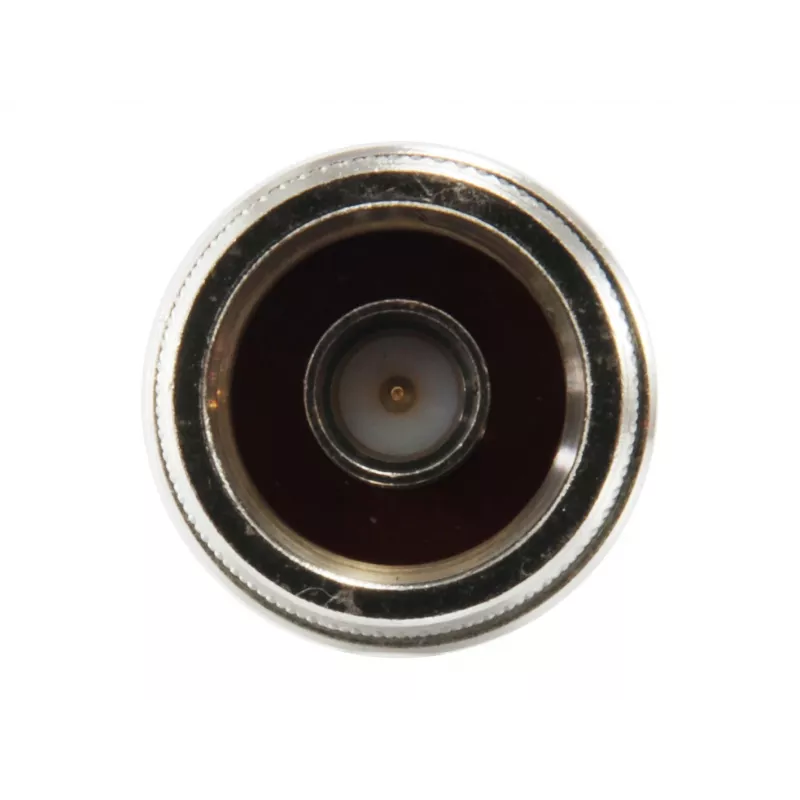

• Connector: N-type female
• Standards: IEEE 802.11a/b/g/n/ac
• Dimensions: 22 mm x 203 mm
• Weather protection: IP65
• Operating temperature: -30°C to 60°C

How to use

Mount the antenna indoors or outdoors using an appropriate bracket or mast clamp. Attach the antenna to the wireless device or cable assembly via the N-type female connector, ensuring a secure mechanical and electrical connection. For outdoor installations, position the antenna vertically and clear of obstructions to achieve uniform omni-directional coverage across the intended area.

Recommendations

For best performance, place the antenna at a height clear of nearby large metal objects and maintain proper grounding for outdoor installations. Verify compatibility with your equipment’s connector type and check local regulations for outdoor antenna placement and transmission limits.
