DeLOCK keystone module 90885 Flat Black Silver White DC 5.5 x 2.1

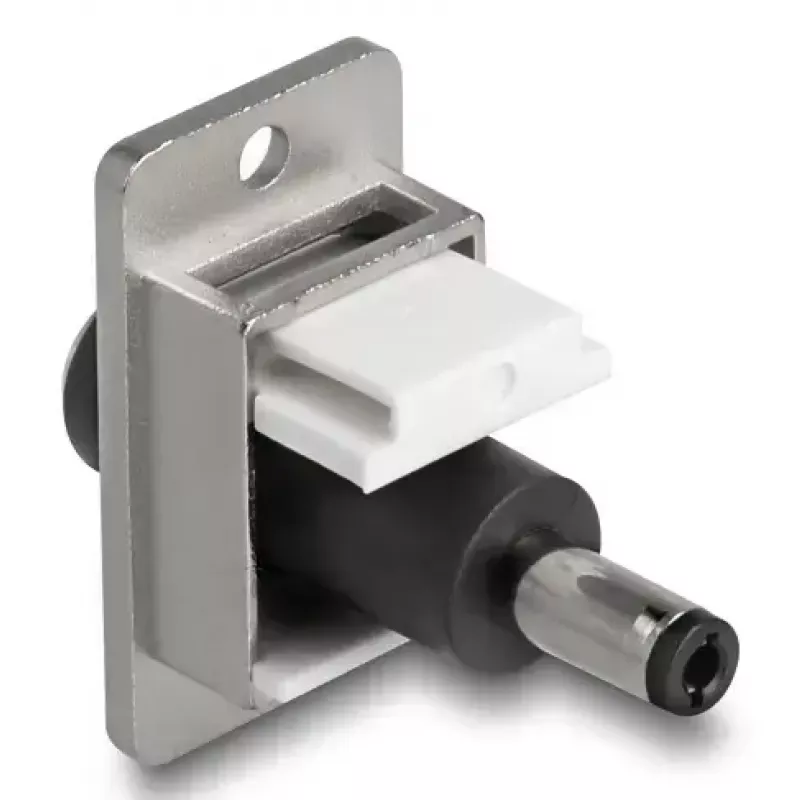

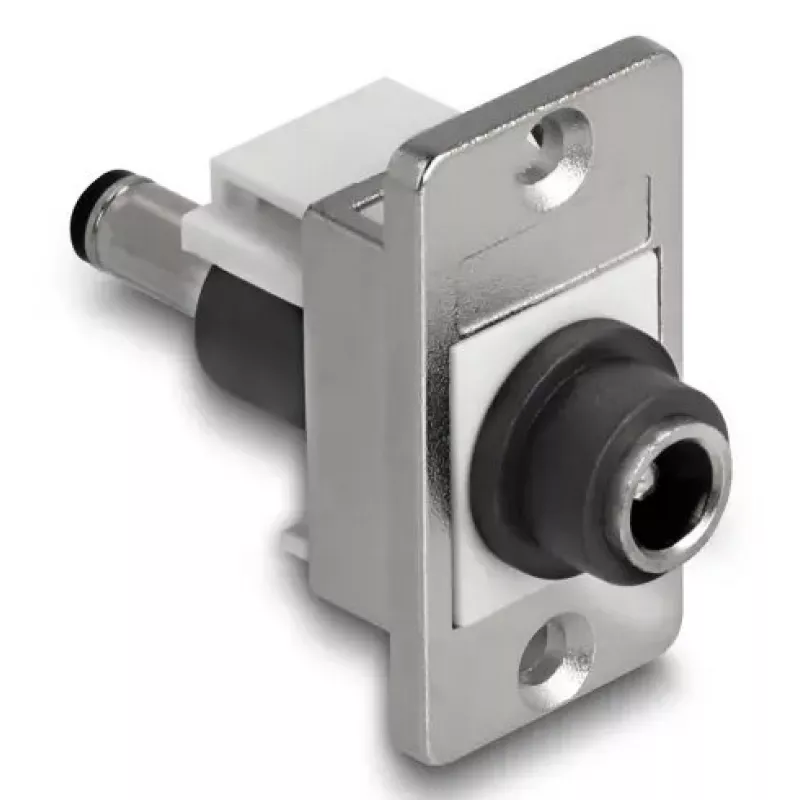

The DeLOCK keystone module 90885 is a flat DC female bulkhead connector designed for installation in housings or devices to provide a recessed DC power inlet. It is available in three colours — black, silver and white — and features a 5.5 x 2.1 mm DC jack in a compact keystone form factor. The module measures 19 mm (width) x 42.3 mm (depth) x 35.5 mm (height) and is supplied in a polybag. Manufactured by DELOCK in China, it is intended for use where a neat, panel-mounted DC power connection is required.

Advantages

The keystone module offers a flat, space-saving design suitable for panel or enclosure mounting and provides a standardized 5.5 x 2.1 mm DC female connector for common power adapters. Its keystone format allows installation into compatible keystone plates or cutouts, and the availability in black, silver and white helps it match different enclosure finishes. The compact dimensions make it suitable for confined spaces while maintaining a secure, recessed power inlet.

Suitable for

Key specifications

How to use

Install the keystone module into a compatible keystone plate or a suitably sized cutout in the device housing until it snaps into place or is secured according to the enclosure design. Route and attach the internal DC wiring to the module's rear contacts following the device's wiring conventions and ensuring correct polarity. After installation, connect an appropriate 5.5 x 2.1 mm DC plug from a compatible power adapter to supply power to the device.

Recommendations

Use the module with power supplies and adapters that match the device's voltage and current requirements; verify polarity before connecting. For secure mounting choose a compatible keystone plate or ensure the housing cutout dimensions match the module. Avoid exposing the connector to moisture or corrosive environments to maintain reliable electrical contact.
