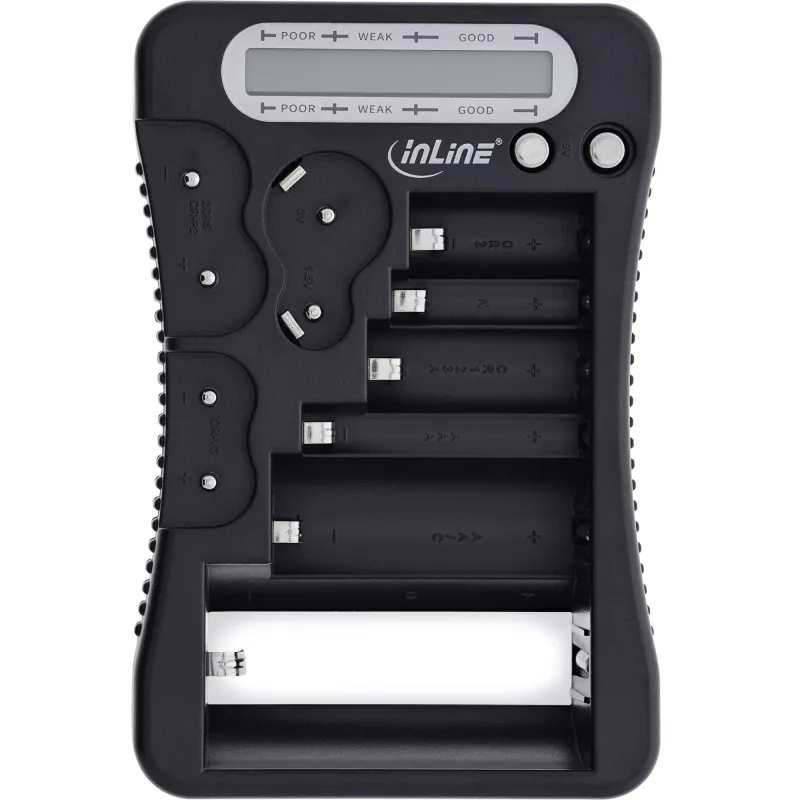

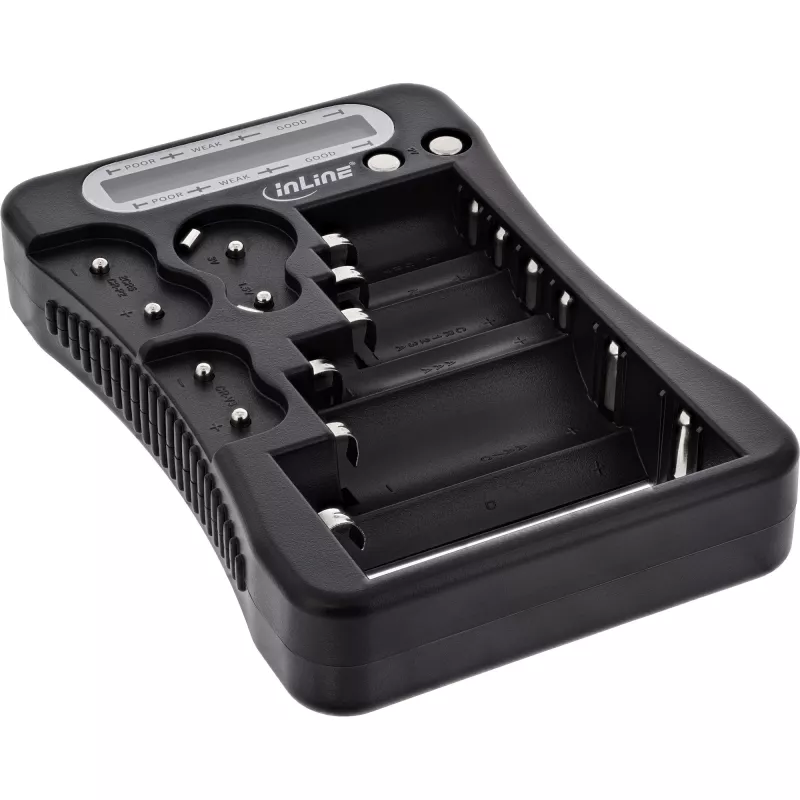

Battery Tester InLine 01285 with LCD Display for Round and Button Cell Batteries

Quick status check:Reliably determines the charge status of standard batteries and rechargeable batteries via a precise bar graph.
High compatibility:Supports numerous battery formats such as AAA, AA, C, D, 9V block, button cells, and special sizes such as CR123A, CR-V3, or 2CR5.
Easy to use:Clear LCD display and self-explanatory slots enable quick and intuitive use in everyday work.
Compact design:Can be stored in a space-saving manner and used flexibly in different areas of application.
Independent power supply:Operates with a single AAA micro battery without an external power source.

The InLine® battery tester with LCD display offers a reliable way to quickly and accurately determine the charge status of a wide variety of batteries and rechargeable batteries. The device is suitable for over twelve common battery formats, including classic sizes such as AAA, AA, C, D, and special formats such as CR123A, 2CR5, CR-P2, or button cells. The remaining capacity is displayed on a three-stage bar graph with a total of 18 segments. The display shows the levels "low," "normal," and "good."
The compact design and intuitive operation make the device the ideal choice for workshops, warehouses, or mobile use in technical field service. Thanks to its independent power supply with a AAA battery, the tester can be used flexibly at any time. The InLine® battery tester offers an efficient solution for a wide range of applications in different working environments.

Display: LCD with 18 bars (5 low, 5 normal, 8 good)
Power supply: 1x micro AAA battery (not included)
Compatible battery formats: AAA, AA, C, D, 9V, Lady N (LR1), CR123A, CR2, CR-V3, 2CR5, CR-P2, button cells

InLine battery tester with LCD display, for round and button cell batteries. Product colour: Black. Battery type: AAA. Width: 88 mm, Depth: 132 mm, Height: 25 mm. Package width: 99 mm, Package depth: 150 mm, Package height: 30 mm. Dimensions (WxDxH): 88 x 132 x 25 mm

How to use

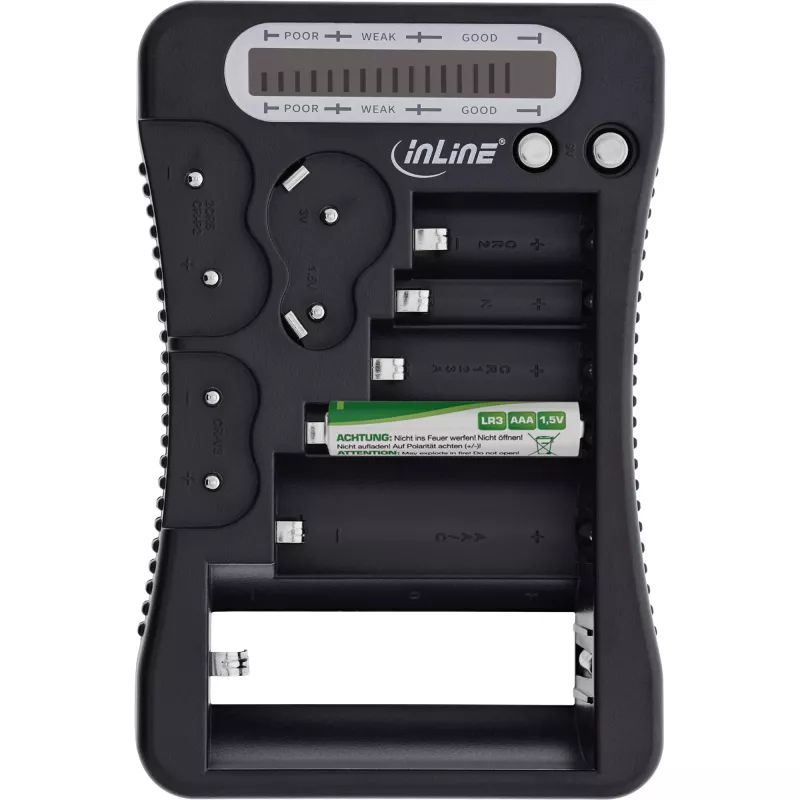

Select the appropriate slot for the battery type, insert the battery with correct polarity and observe the LCD indicator to read the remaining capacity. For button cells, place the cell in the dedicated contact area; for rectangular 9V batteries and cylindrical cells use the matching slot. Remove the battery after the reading is complete.

Recommendations

For reliable readings, ensure battery contacts are clean and the tester’s contacts are free from corrosion. Test batteries at room temperature and interpret the LCD result to decide whether to recharge or replace the battery.
