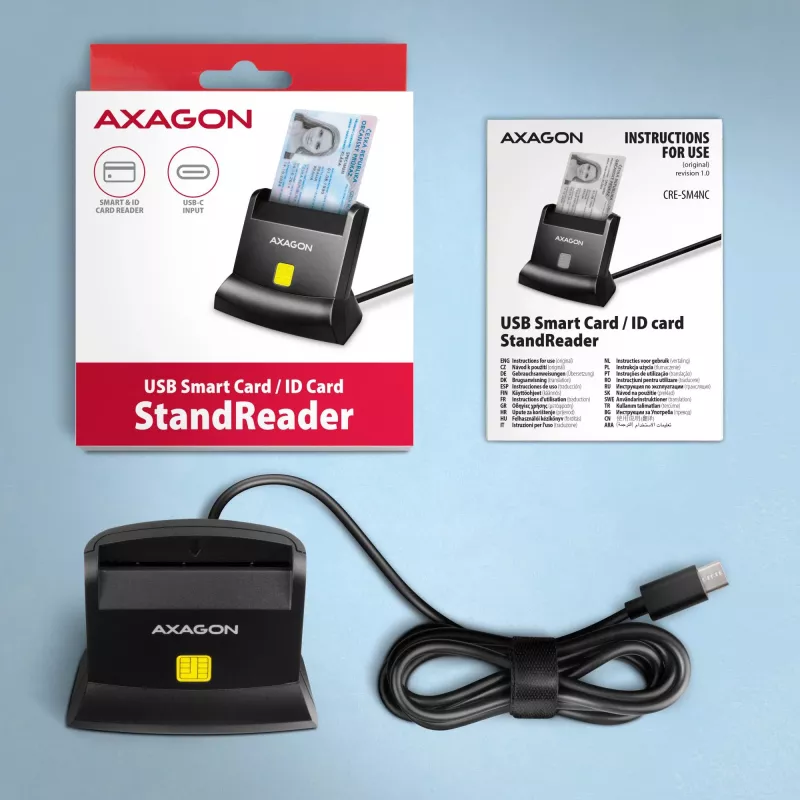

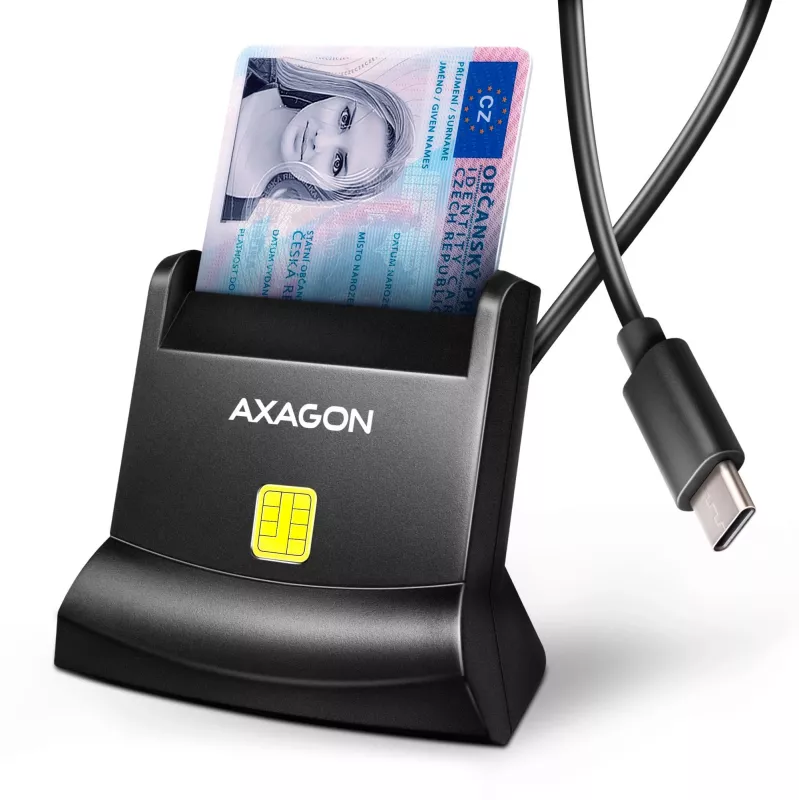

AXAGON CRE-SM4NC USB-C Smart Card Stand Reader - Black

The AXAGON CRE-SM4NC is a universal desktop USB contact Smart ID card reader designed for secure and reliable smart card authentication. Featuring a long 1.5 m USB-C cable, this stand reader supports contact smart cards compliant with ISO/IEC 7816 Class A, B, and C, making it ideal for government, enterprise, and healthcare applications.

Advantages

With PC/SC 2.0 and EMV 2000 Level 1 compliance, the CRE-SM4NC ensures broad compatibility with various operating systems including Windows, macOS, Linux, and Android. Its robust ABS plastic housing and 100,000 card insertion cycles guarantee long-lasting durability. The LED indicator provides clear power and activity status, while USB bus-powered operation eliminates the need for an external power supply.

Suitable for

• Government and military ID card reading (CAC, PIV, eID)
• Banking and financial services (EMV transactions)
• Healthcare and patient identification
• Enterprise access control and secure login

Key specifications

• Host Interface: USB-C (USB 2.0)
• Supported Card Types: Contact Smart Cards (ISO/IEC 7816 Class A, B, C)
• Smart Card Protocols: T=0, T=1
• Interface Speed: Up to 420 Kbps
• Standards: PC/SC 2.0, EMV 2000 Level 1, FIPS 201, GSA APL
• OS Compatibility: Windows XP/Vista/7/8/10/11, macOS, Linux, Android
• LED Indicator: Power/Activity
• Power Source: USB Bus-powered
• Cable Length: 1.5 m
• Housing Material: ABS Plastic
• Color: Black
• Form Factor: Desktop Stand Reader
• Card Insertion Cycles: 100,000
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use with certified smart cards and ensure your system supports USB-C. The reader is plug-and-play on most modern operating systems without additional drivers.
