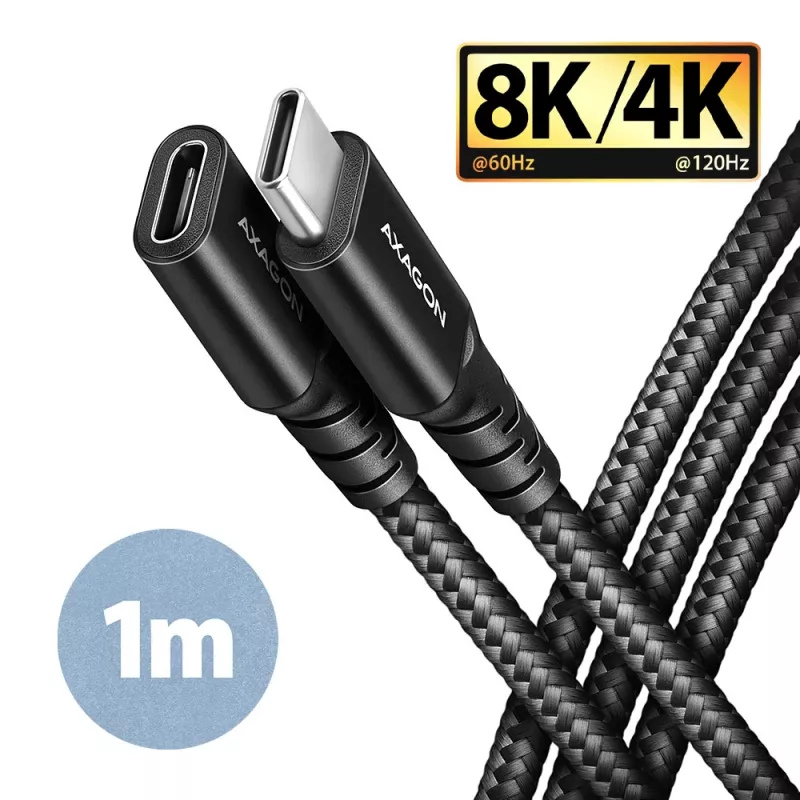

Axagon BUCM32-CF10AB SPEED+ USB-C USB 20Gbps extension cable 1 m

Premium USB-C <-> USB-C data and charging extension AXAGON BUCM32-CF10AB SPEED+ EXTENSIONS USB 3.2 Gen 2 cable with USB-C male and USB-C female connectors. The cable is designed for very fast data transfers and notebook, phone, tablet and other mobile device charging. Enables high-speed extensions for devices with short cables, such as multiport hubs and port replicators. You will not be limited by space and the location of ports on the laptop.

The cable supports up to 20 Gb/s data transfer and also allows image transfer up to 8K/60Hz Full Ultra HD resolution and audio. The cable is compatible with charging technologies Power Delivery up to 240W (depends on the extension cable), Quick Charge, Samsung AFC, Huawei FCP, SMART and others. Connected devices can be charged with up to 5A current.

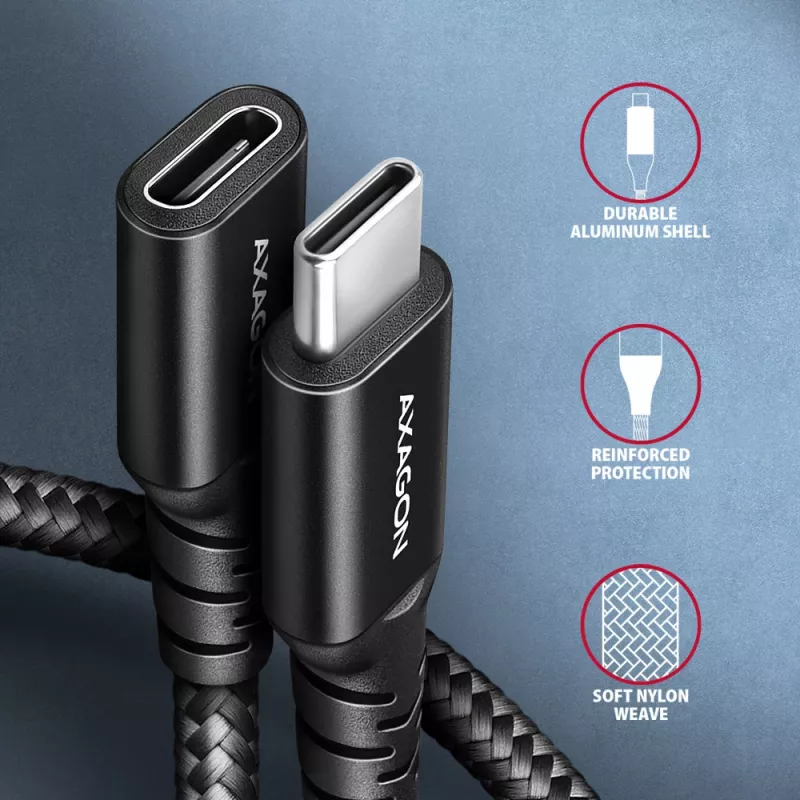

Durable data and power cable with extended service life is equipped with metal terminals, connectors with a nickel-plated surface and gold-plated contacts. Cable conductors are made of Tin-plated oxygen free copper. High-quality cable insulation, made of flexible TPE, guarantees maximum durability and also maintains sufficient flexibility. The nylon braid gives the cable ultimate strength. Power cables 22AWG (lower number = larger cross-section and lower wire resistance) guarantee fast charging of phones and other mobile devices. Data wires 32AWG together with high-quality shielding, ensure reliable data transmission. Triple shielding protects transmitted signals from adverse interference.

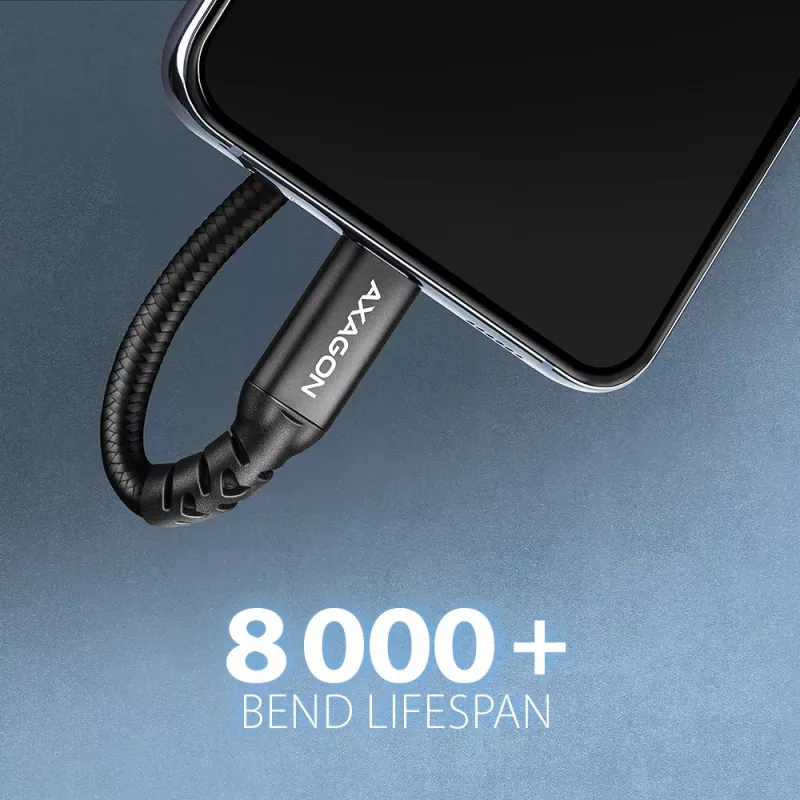

Nylon braid in combination with a cable gland significantly reduces dangerous cable bending. The cable life is extended to more than 8000 standard bends. The mechanical resistance of the cable is also increased by the aluminum terminal covers.

Connectors:
• USB-C (M) male
• USB-C (F) female

Other features:
• DATA SYNC & FAST CHARGING - simultaneous data transfer and mobile device battery charging.
• SuperSpeed USB 10 Gbps - USB 3.2 Gen 2, compatible also with SuperSpeed USB 20 Gbps - USB 3.2 Gen 2x2.
• Backward compatible with USB 3.2 Gen 1 (formerly USB 3.1 Gen 1 / USB 3.0), USB 2.0.
• Supports 20 / 10 Gb/s (SuperSpeed+) second generation transmission rates.
• Supports 20.000 / 10.000 / 5.000 / 480 / 12 / 1.5 Mb/s (SuperSpeed+ dual-lane / SuperSpeed+ / SuperSpeed / High / Full / Low speed) transmission rates.
• Video up to 8K@60Hz Full Ultra HD resolution and audio transfer support - USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support or Thunderbolt 3/4 port is required.
• Supported charging technologies: Power Delivery 2.0 / 3.0 / 3.1 240W (48V/5A), Qualcomm Quick Charge 2.0 / 3.0 / 4+, Samsung Adaptive Fast Charging, Huawei Fast Charge Protocol, SMART Charging and others.
• Support for fast charging with a current of up to 5A.
• Cable includes power wires 22AWG, data wires 32AWG.
• Tin-plated oxygen free copper conductors to reduce oxidation, increase conductivity, and clear signal without distortion.
• Double shielding via galvanized foil and tinned copper braiding minimizes interference and prevents signal loss.
• Nickel-plated connectors and gold-plated contacts prevent oxidation and provide a reliable connection.

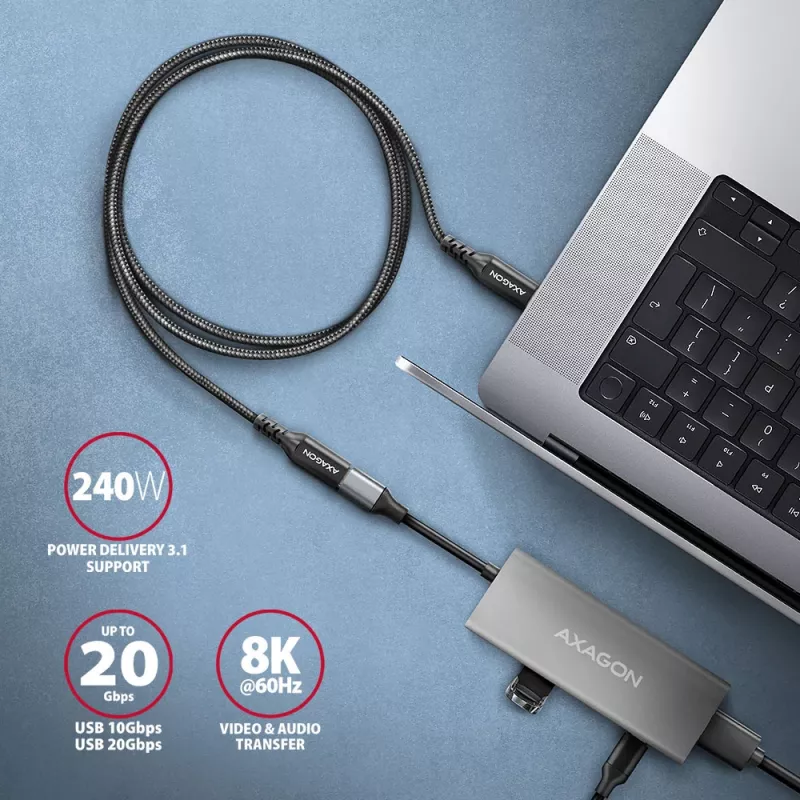

• Suitable as a cable extension for laptops, tablets, mobile phones and other devices with USB-C connector especially for multiport hubs, port replicators and docking stations.
• The maximum extension length (cable + extension cable) is 2 m.

Other data:
• cable length 1 m,
• outer diameter of the cable 5.0 mm.

Package contains:

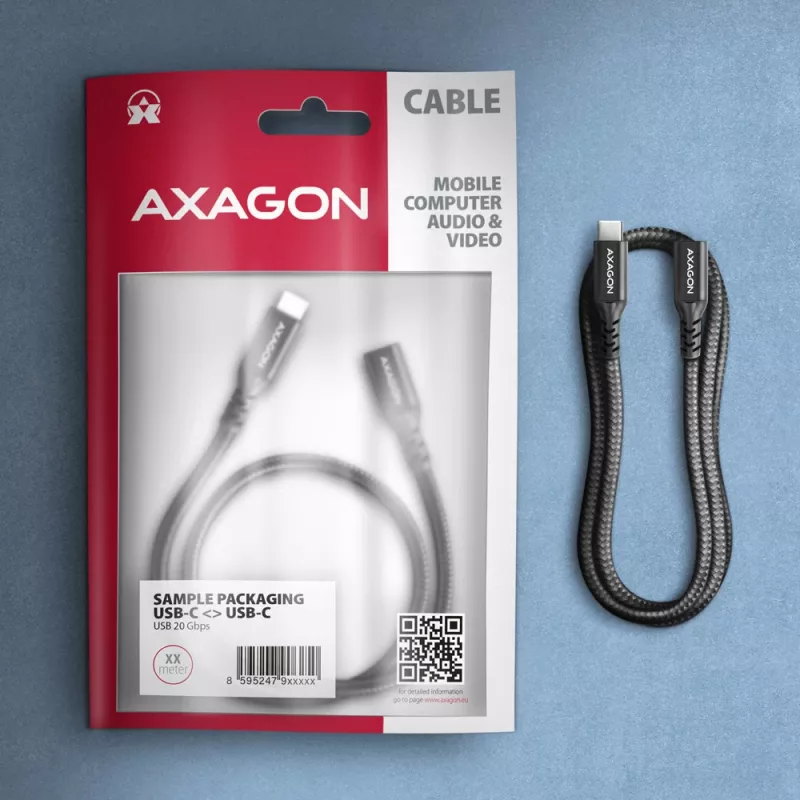

• USB-C M <-> USB-C F black cable,
• packed in a printed and sealed foil package with hanging hole.

How to use

Plug the USB-C male connector into the host device (for example a laptop or power adapter) and connect the USB-C female end to the device or cable you want to extend, such as a multiport hub, dock or phone cable. Ensure the connected host and peripheral support the required USB and video modes (for example USB 3.2 Gen 2x2 for 20 Gbit/s or DisplayPort Alternate Mode for video). When charging, use a compatible power adapter and cables rated for the required Power Delivery wattage and current.

Recommendations

Use the cable as an extension only up to the combined maximum extension length of 2 m (cable + extension). Avoid excessive bending near the connector gland and keep connectors clean. For 8K video or maximum data rates, verify that both connected ports and devices support the necessary USB/DP/Thunderbolt modes and that the power source matches the required PD profile.
