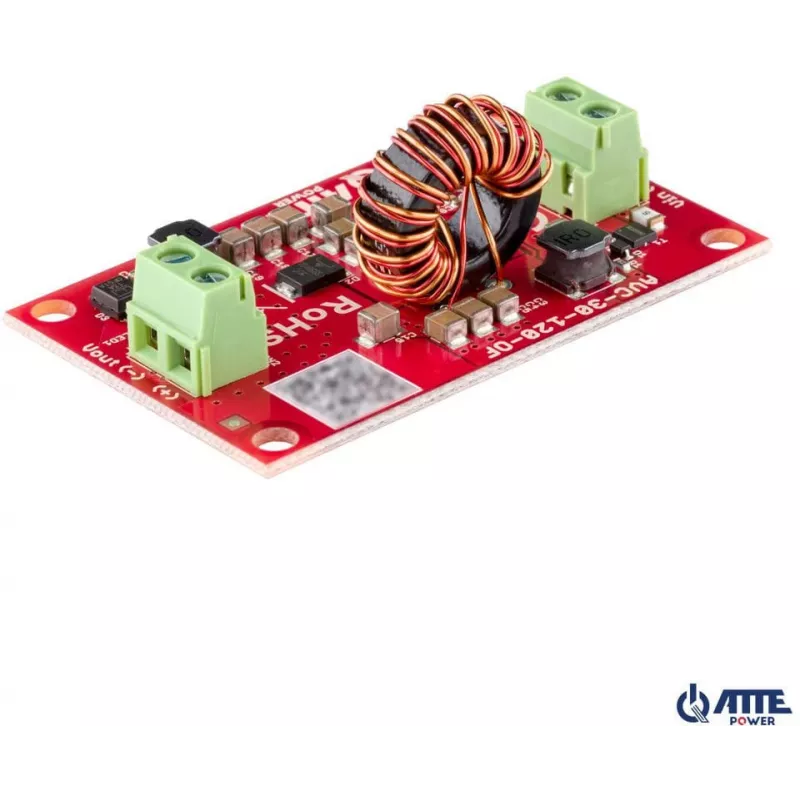

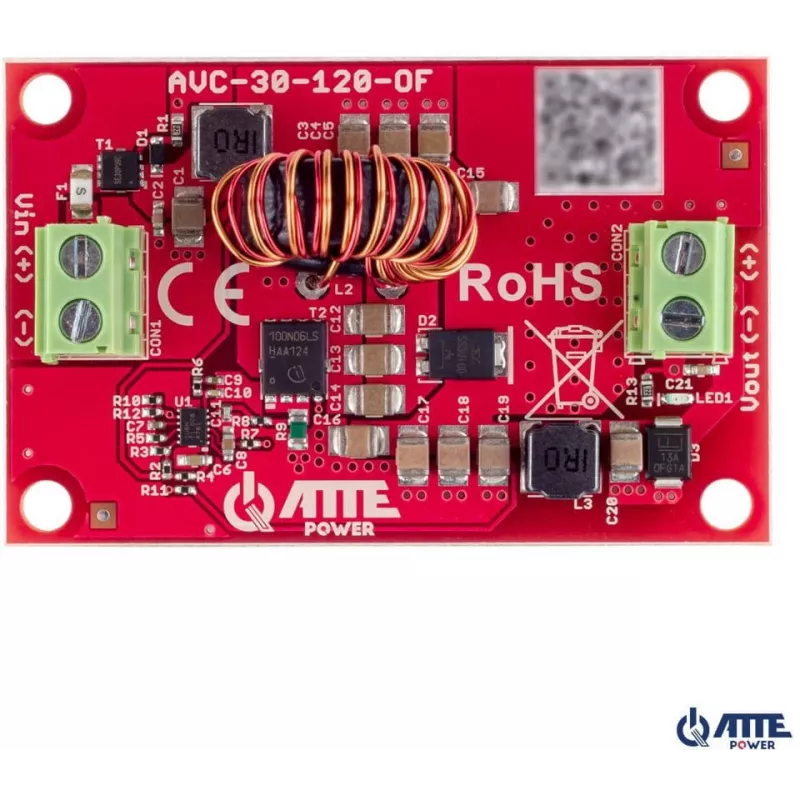

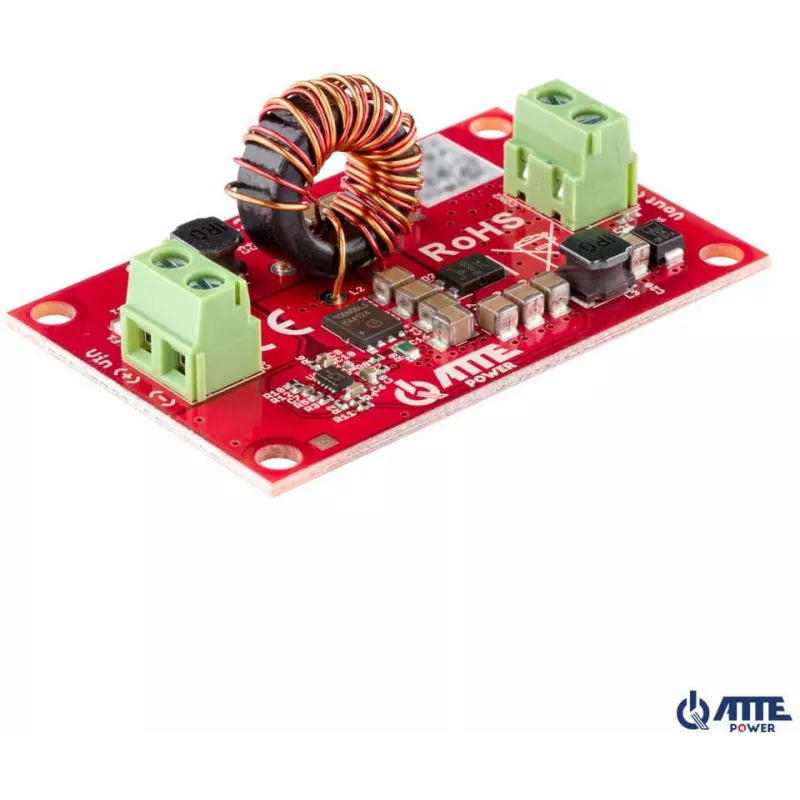

ATTE DC/DC Inverter AVC-30-120-OF 24V to 12V 30A 360W Step-Down Converter

The ATTE DC/DC Inverter AVC-30-120-OF is a high-efficiency step-down (buck) converter designed to convert a nominal 24V DC input to a stable 12V DC output. With a continuous output current of 30A and maximum power of 360W, this chassis-mountable unit is ideal for industrial, automotive, and telecom applications where reliable voltage conversion is required.

Advantages

This converter offers over 90% efficiency, reducing energy loss and heat generation. Its convection-cooled design ensures silent operation and long-term reliability. Comprehensive protection features including overload, short-circuit, over-temperature, and input reverse polarity safeguard both the converter and connected equipment.

Suitable for

• Industrial control systems
• Automotive electronics
• Telecommunications equipment
• LED lighting installations
• Battery-powered systems requiring 12V from a 24V supply

Key specifications

• Input Voltage: 18-32V DC (nominal 24V)
• Output Voltage: 12V DC
• Output Current: 30A continuous
• Maximum Output Power: 360W
• Efficiency: >90%
• Ripple & Noise: <100 mVp-p
• Operating Temperature: -25°C to +55°C
• Cooling: Convection
• Mounting: Chassis mount
• Connectors: Screw terminals (input and output)
• Housing: Aluminum
• Compliance: CE

Recommendations

For optimal performance, ensure adequate ventilation around the converter. Use appropriately rated wiring and fusing. This unit is non-isolated; verify system grounding requirements before installation.
