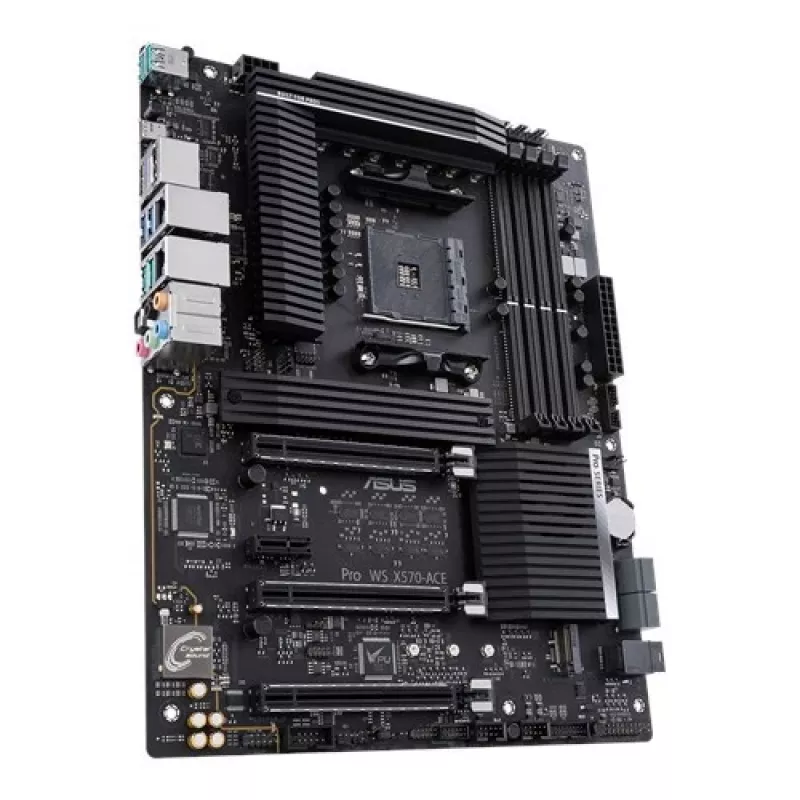

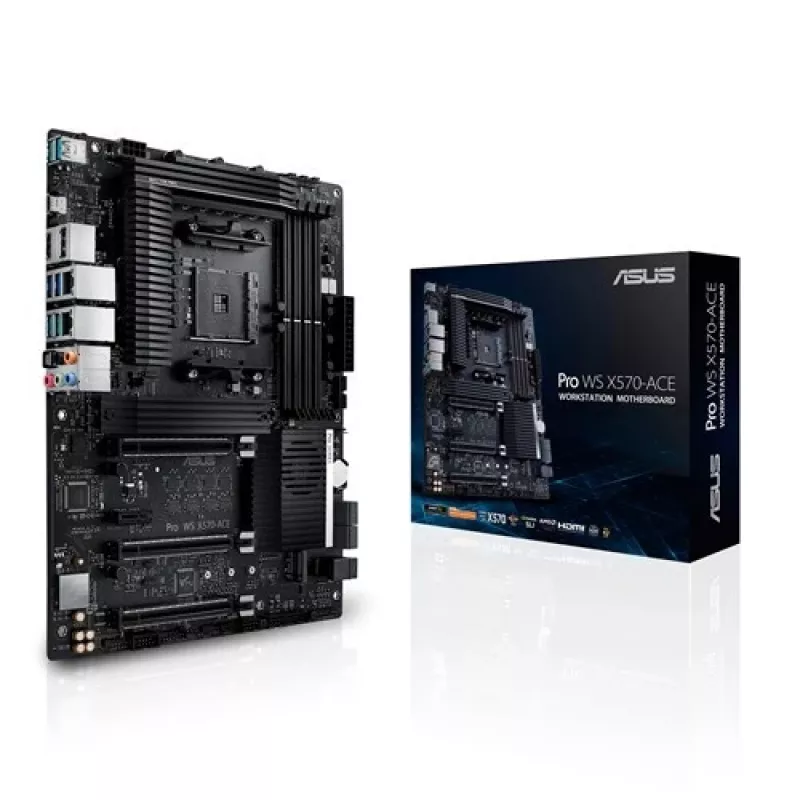

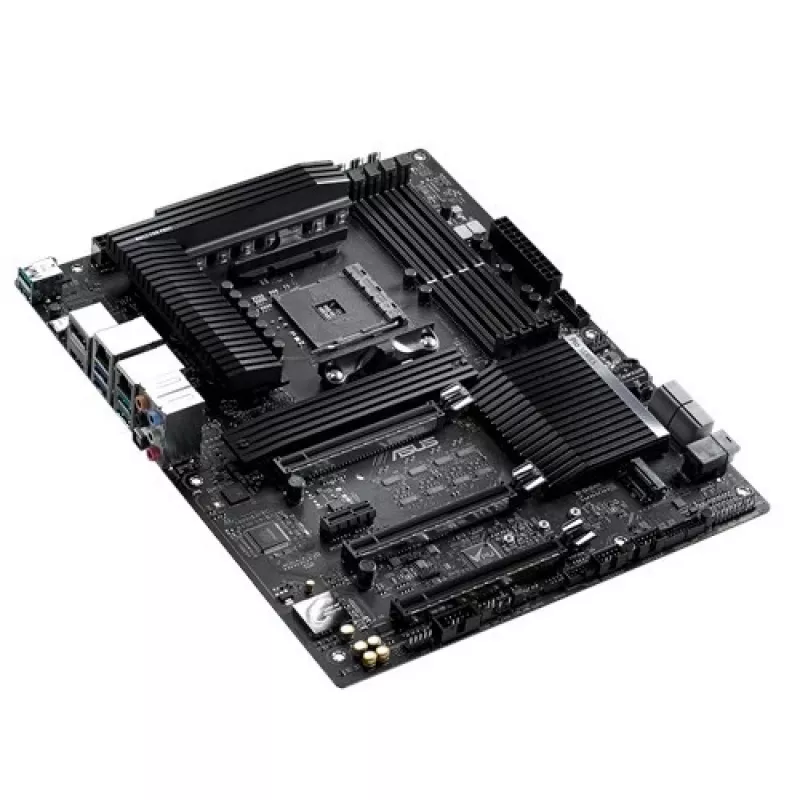

ASUS Pro WS X570-ACE Workstation Motherboard - AMD AM4 - DDR4 - ATX - Dual Gigabit LAN

The ASUS Pro WS X570-ACE is a professional workstation motherboard designed for AMD AM4 socket processors, built on the AMD X570 chipset. It delivers exceptional stability and performance for content creation, scientific computing, and enterprise applications. With support for ECC memory, dual Intel Gigabit LAN, and extensive PCIe 4.0 connectivity, this ATX motherboard is engineered for demanding workloads.

Advantages

Optimized for 24/7 operation with ASUS Control Center Express and ProCool II power connectors. Supports NVIDIA 2-Way SLI and AMD 3-Way CrossFireX multi-GPU configurations. Dual M.2 slots with PCIe 4.0 x4 and SATA modes provide fast storage options.

Suitable for

• Workstation and server builds
• Content creation and 3D rendering
• Scientific and engineering simulations
• Multi-GPU computing environments

Key specifications

• CPU Socket: AMD AM4
• Chipset: AMD X570
• Form Factor: ATX
• Memory: 4 x DIMM, DDR4, up to 128 GB, max speed 4400 MHz (OC)
• PCIe x16 Slots: 3 (PCIe 4.0)
• M.2 Slots: 2 (PCIe 4.0 x4 & SATA)
• SATA 6Gb/s Ports: 8
• U.2 Ports: 2
• LAN: Dual Intel I210-AT Gigabit Ethernet
• Audio: Realtek S1220A 8-Channel HD Audio
• USB 3.2 Gen 2 Rear: 8 (1x Type-C, 7x Type-A)
• Multi-GPU: NVIDIA 2-Way SLI, AMD 3-Way CrossFireX
• ECC Memory Support: Yes (with compatible CPU)
• Power Connectors: 1 x 24-pin ATX, 2 x 8-pin EPS 12V

Recommendations

Ideal for professionals requiring a reliable and expandable platform. Pair with AMD Ryzen or Ryzen Threadripper processors for optimal performance.
