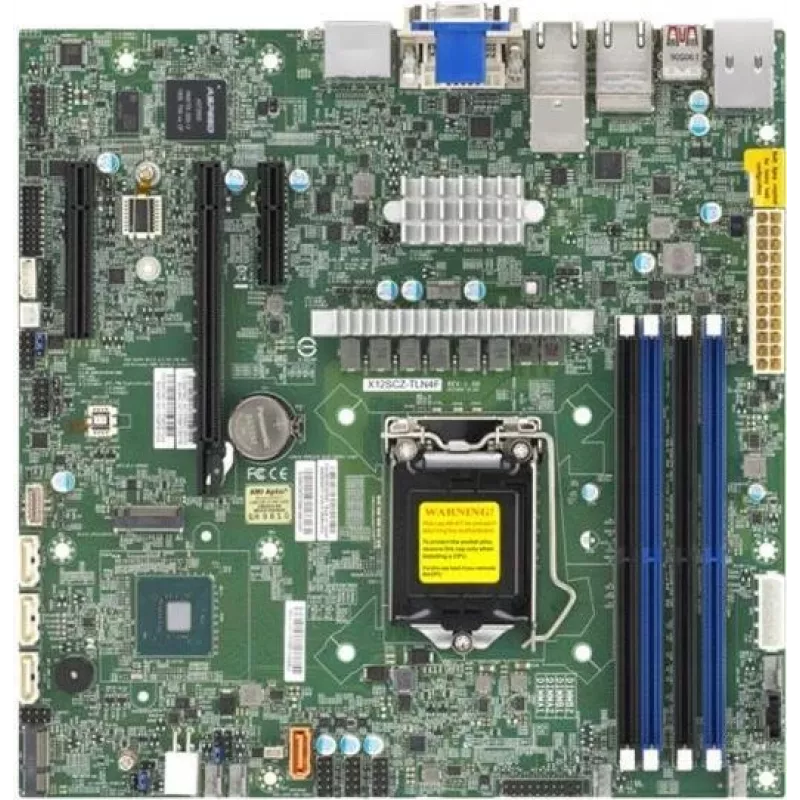

Supermicro X12SCZ-TLN4F Micro ATX Motherboard, LGA1200, Intel W480E, 2x10GbE, 2xGbE, IPMI

The Supermicro X12SCZ-TLN4F is a high-performance Micro ATX motherboard designed for Intel Xeon E-2300 and 11th/10th Gen Core processors. Featuring the Intel W480E chipset, it delivers exceptional reliability and scalability for demanding server and workstation environments. With dual 10 Gigabit Ethernet and dual Gigabit LAN ports, this board ensures blazing-fast network connectivity. Integrated IPMI 2.0 with KVM over IP enables remote management, making it ideal for data centers and enterprise deployments.

Advantages

Dual 10GbE LAN (Intel X710-AT2) provides ultra-fast data transfer, while dual Gigabit LAN (Intel i210-AT) offers additional connectivity. Support for up to 128 GB DDR4-3200 ECC/non-ECC memory ensures robust performance. The board includes two M.2 PCIe 4.0 x4 slots for high-speed storage and four SATA 6Gb/s ports with RAID 0/1/5/10 support. Integrated IPMI 2.0 with dedicated LAN simplifies remote monitoring and control.

Suitable for

• Enterprise servers and workstations
• Virtualization and cloud computing
• High-performance computing (HPC) clusters
• Network-attached storage (NAS) systems
• Edge computing and IoT gateways

Key specifications

• Form Factor: Micro ATX
• CPU Socket: LGA1200
• Chipset: Intel W480E
• Supported CPUs: Intel Xeon E-2300, 11th/10th Gen Core i9/i7/i5/i3/Pentium/Celeron
• Memory: 4x DDR4 DIMM, up to 128 GB DDR4-3200 ECC/non-ECC
• Expansion: 1x PCIe 4.0 x16, 2x PCIe 3.0 x4
• Storage: 2x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s
• LAN: 2x 10GbE (Intel X710-AT2), 2x GbE (Intel i210-AT)
• USB Rear: 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, 2x USB 2.0 Type-A
• Video: 1x DisplayPort, 1x HDMI
• Audio: Realtek ALC888S HD Audio
• Management: IPMI 2.0 with KVM over IP (dedicated LAN)
• RAID: 0/1/5/10 (SATA)
• Power: 24-pin ATX, 8-pin EPS

Recommendations

For optimal performance, pair with Intel Xeon E-2300 series processors and ECC DDR4 memory. Use high-quality thermal solution for the LGA1200 socket. Ideal for building a compact yet powerful server or workstation.
