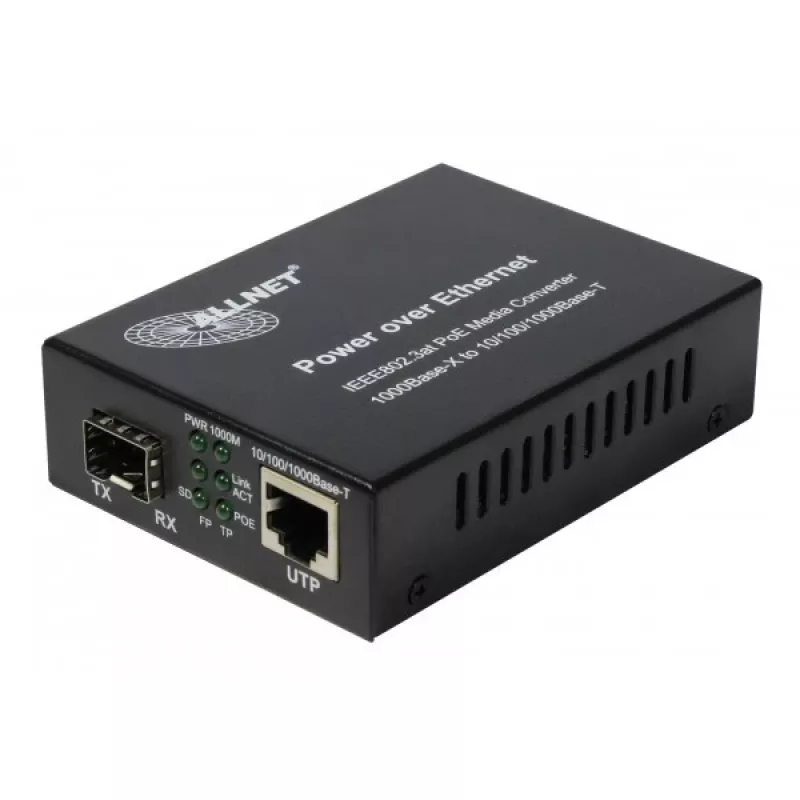

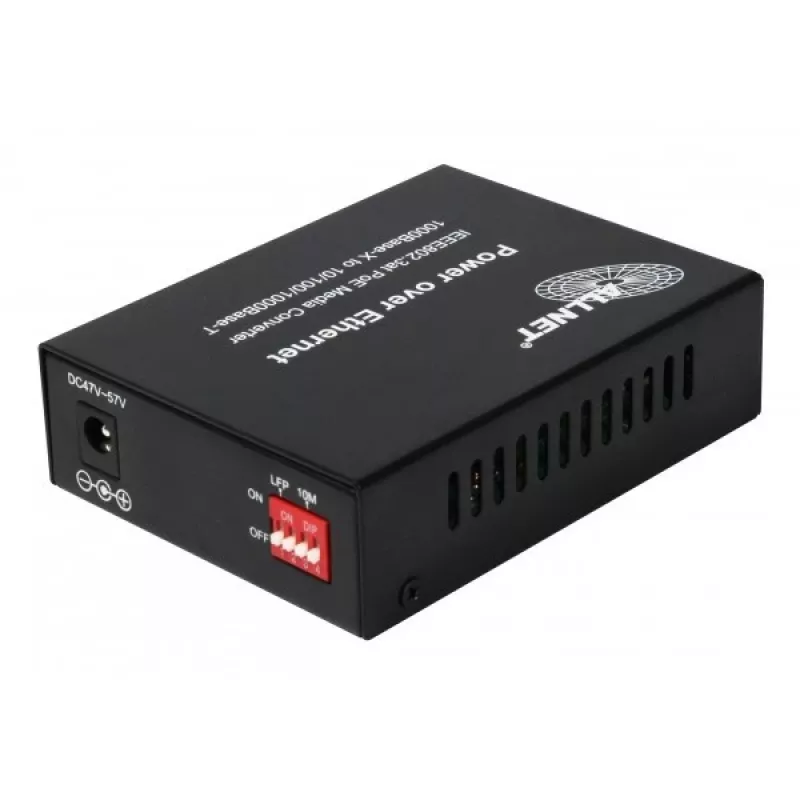

ALLNET PoE Media Converter 10/100/1000Base-T to 1000Base-SX/LX SFP Mini-GBIC, Single/Multi-Mode, 15.4W/30W PoE, ALL-MC202P-SFP1-PoE

The ALLNET ALL-MC202P-SFP1-PoE is a versatile media converter that bridges 10/100/1000Base-T copper networks with 1000Base-SX/LX fiber optic networks via a SFP mini-GBIC slot. It supports both single-mode and multi-mode fiber, with PoE output of 15.4W or 30W to power connected devices. Ideal for extending network distances up to 550m (multi-mode) or 10km+ (single-mode) while delivering power over Ethernet.

Advantages

Combines media conversion and PoE injection in one device, eliminating the need for separate power injectors. Supports both multi-mode and single-mode fiber for flexible deployment. Plug-and-play installation with no configuration required.

Suitable for

• Extending network reach to remote IP cameras, access points, or sensors
• Connecting copper switches to fiber backbone
• Industrial and enterprise environments requiring reliable fiber connectivity with PoE

Key specifications

• Converter input interface: 10Base-T, 100Base-TX, 1000Base-T (RJ45)
• Converter output interface: 1000Base-SX/LX (SFP slot)
• Fiber modes: Multi-mode (50/125, 62.5/125 µm) and Single-mode (9/125 µm)
• Optical connector: Mini-GBIC (SFP)
• PoE output: 15.4W (802.3af) or 30W (802.3at)
• Max data transfer rate: 1000 Mbit/s
• Product colour: Black
• Output voltage: 52 V
• Output current: 1.25 A

Recommendations

Use with SFP modules that match your fiber type (multi-mode or single-mode) and distance requirements. Ensure the PoE budget of the switch or power source meets the total power demand of connected devices.
