ACT 4K HDMI 1.4 splitter 2 ports 3840 x 2160 pixels Black

The ACT AC7835 4K HDMI splitter duplicates a single HDMI source to two separate displays. It supports a maximum resolution of 3840 x 2160 @ 30Hz (HDMI 1.4) and 1080p @ 60Hz for 3D/Full HD content. The unit is supplied with a USB power cable and is finished in black.

Advantages

This compact HDMI splitter provides one HDMI input and two HDMI outputs, allowing the same video source to be shown on up to two TVs or monitors simultaneously. It maintains video quality up to 5 meters between the splitter and each display when used with High Speed HDMI cables. The front LEDs indicate power and output status for straightforward operation.

Suitable for

• Retail displays and information screens
• Home setups where the same video is needed on two TVs
• Meeting rooms and classrooms for mirroring a single source
• Digital signage with short cable runs (up to 5 m)

Key specifications

• Model: ACT AC7835
• Inputs/Outputs: 1 x HDMI input, 2 x HDMI outputs
• Maximum resolution: 3840 x 2160 @ 30Hz (4K); 1080p @ 60Hz (3D/Full HD)
• Power: USB powered (USB cable included)
• Colour: Black
• Recommended cable: High Speed HDMI cable

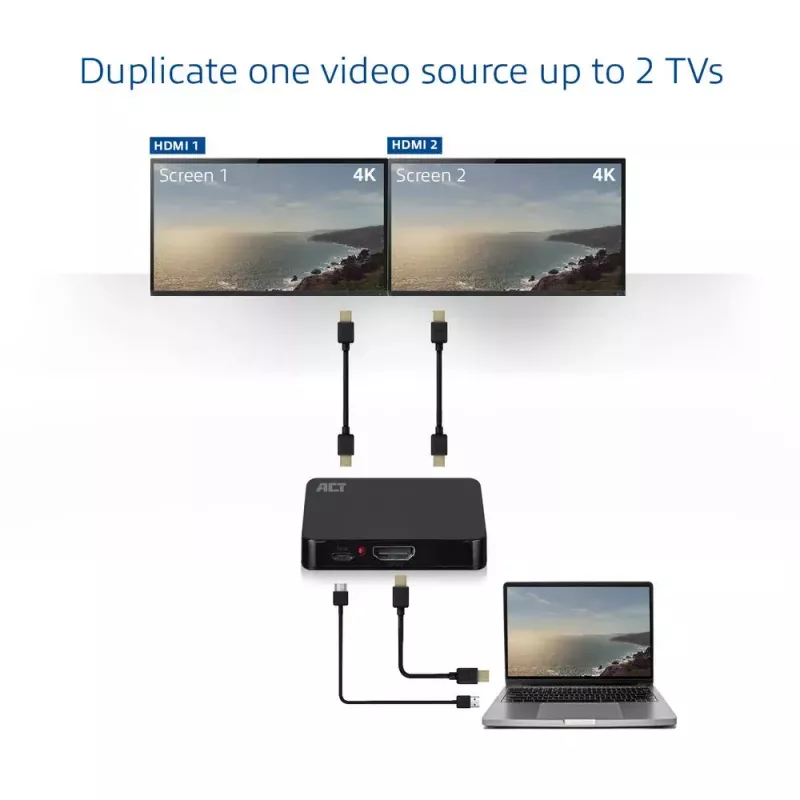

How to use

Connect a High Speed HDMI cable from your source device to the HDMI input on the AC7835. Use High Speed HDMI cables to connect each display to the two HDMI outputs. Power the splitter using the supplied USB power cable connected to a USB power adapter or USB port. Turn on the displays and the source; the splitter will mirror the source signal to both outputs. Check the LEDs to confirm power and output status.

Recommendations

Use High Speed HDMI cables for all connections and keep cable runs to 5 meters or less to ensure reliable 4K signal transmission. If using older sources or displays, verify compatibility with HDMI 1.4 resolutions and refresh rates.
