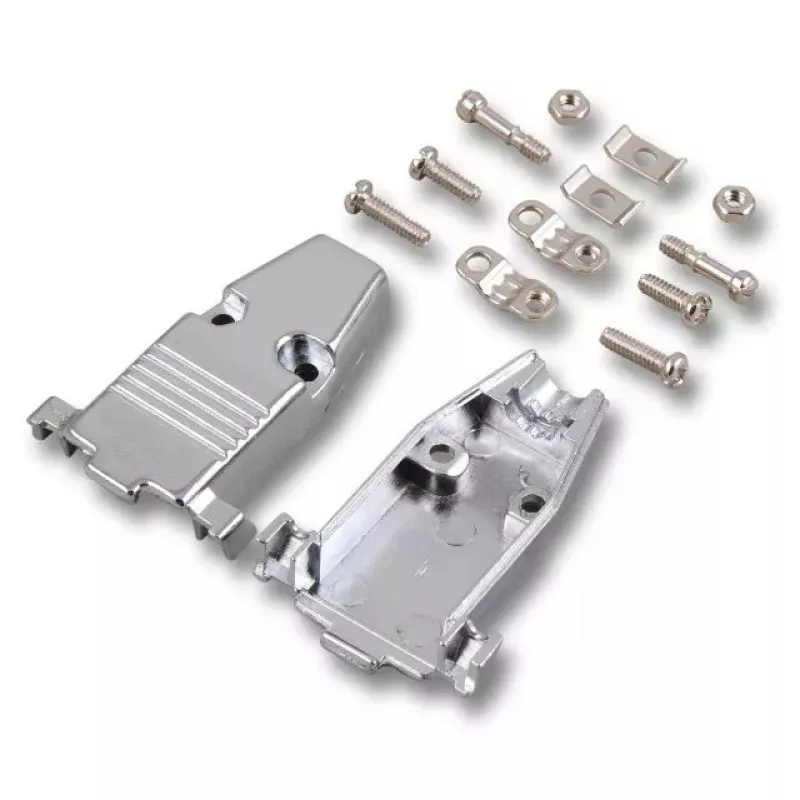

Wire Connector EFB Elektronik 29432.1 Dsub 25-pin Silver

The Wire Connector EFB Elektronik 29432.1 Dsub 25-pin Silver is a compact zinc D-sub connector designed for reliable signal and data connections in electronic systems. It features a 25-pin D-sub configuration in a silver finish and is sized to fit space-conscious setups. Constructed from zinc, the connector provides mechanical durability and consistent electrical contact for a variety of installation scenarios.

Advantages

The zinc construction ensures mechanical strength and corrosion resistance suitable for standard indoor electronic environments. The 25-pin D-sub layout supports multi-pin signal transmission in a small footprint, while the silver finish offers a neutral appearance that integrates easily with existing equipment. Its compact outer dimensions make it suitable for tight panel or cable assemblies.

Suitable for

• Connecting 25-pin D-sub equipment, such as legacy serial or parallel interfaces
• Panel-mount or cable-termination applications where a compact connector is required
• Electronics repair, custom cable assemblies and prototype wiring

Key specifications

• Connector type: D-sub 25-pin
• Material: zinc housing
• Finish / colour: silver
• Outer diameter: 1 cm
• Width: 31 mm
• Depth: 47 mm
• Pack quantity: 1 piece

How to use

Install the D-sub connector according to the wiring schematic for the device or cable being assembled. Ensure correct pin mapping and solder or crimp the contacts following accepted workmanship standards. When mounting in a panel or housing, align the connector to the cutout and secure it with the appropriate screws or fasteners. Verify continuity and correct pin assignments with a multimeter before applying power or signals.

Recommendations

For reliable long-term performance, use the connector in environments free of excessive moisture and corrosive agents. Inspect contacts for damage or debris before each installation and avoid over-tightening mounting hardware to prevent housing deformation.
