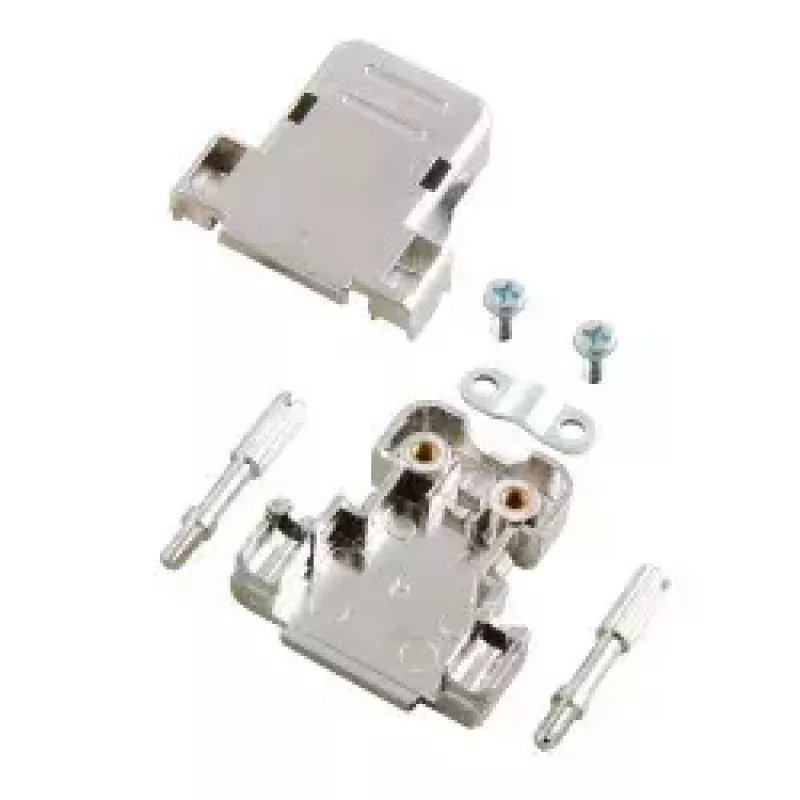

Wire connector D-sub EFB Elektronik 29414.1

The EFB Elektronik wire connector 29414.1 is a D-sub style connector with a straight, through-panel form factor made from a durable silver-plated material. Designed for general-purpose signal and data connections, this connector delivers a reliable mating interface for cable assemblies and equipment where a compact D-sub connection is required. The construction focuses on consistent contact performance and mechanical stability for repeated insertion cycles and standard electronic applications.

Advantages

The straight D-sub design offers a compact footprint and straightforward cable routing. Silver-plated contacts provide low contact resistance and good conductivity for signal integrity. Mechanical construction ensures stable retention and alignment of mating parts, reducing intermittent connections. Materials and finish are selected to resist corrosion and maintain performance in typical indoor electronic environments.

Suitable for

• Signal and data cabling in electronic devices and instrumentation
• Replacement or custom cable assemblies requiring a D-sub straight connector
• Prototyping and small-scale production of control panels and test equipment
• Connecting peripheral modules where a compact, reliable D-sub interface is needed

Key specifications

• Connector type: D-sub straight wire connector
• Contact finish: silver-plated contacts for improved conductivity
• Form factor: through-panel / straight orientation for inline cable routing
• Usage: designed for signal/data lines in electronic assemblies
• Durability: construction suitable for repeated mating cycles in typical applications

How to use

Prepare the cable conductors to the recommended length for the connector terminals, observing proper insulation stripping and any soldering or crimping method appropriate for the specific D-sub contact style. Insert each conductor into its corresponding terminal or contact and secure according to the connector's assembly method. Mount the connector in the panel opening if required and mate with the matching D-sub counterpart to establish the connection. Verify continuity and signal integrity after assembly.

Recommendations

Use appropriate cable sizes and follow standard ESD precautions during assembly. Avoid exposure to harsh chemicals and outdoor environments unless additional sealing or protective measures are applied. Regular inspection and cleaning of contact surfaces can help maintain reliable electrical performance.
