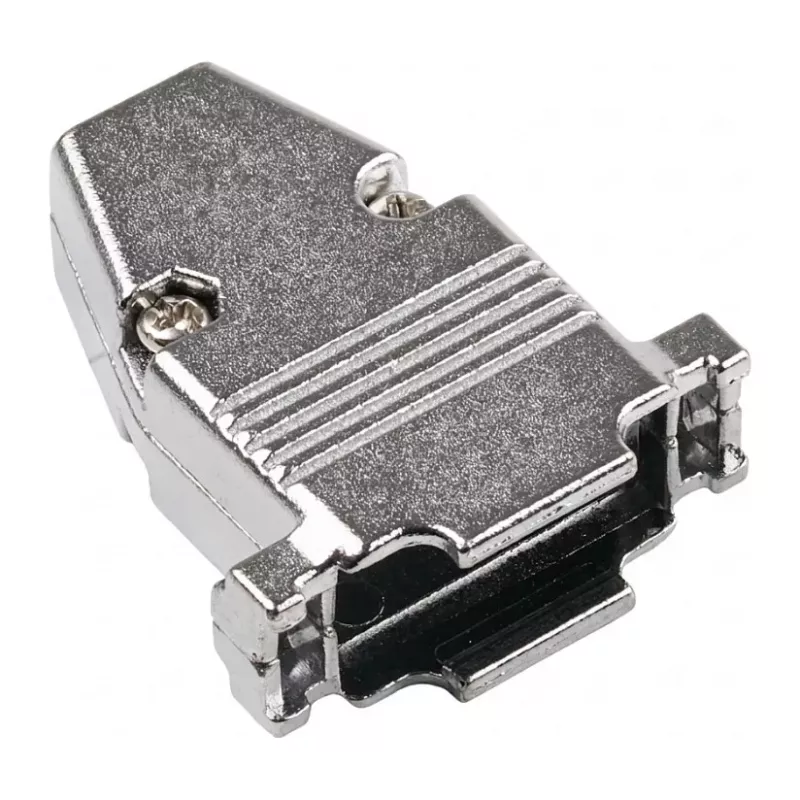

EFB Full Metal Hood E-GP15G with Strain Relief

The EFB Full Metal Hood E-GP15G is a robust, fully shielded D-Sub connector hood designed for reliable data transmission in demanding environments. Featuring a zinc die-cast housing with nickel plating, it provides excellent EMI/RFI protection. The integrated strain relief ensures secure cable clamping for cable diameters from 4 to 13 mm, making it ideal for VGA, serial, and other HD15 applications.

Advantages

This hood offers superior durability and shielding compared to plastic alternatives. The two-part shell design allows for easy assembly, while the included M3 screws provide a secure connection. Its nickel-plated finish resists corrosion, ensuring long-lasting performance.

Suitable for

• VGA monitor cables
• RS-232 serial connections
• Industrial data transmission
• Custom D-Sub cable assemblies

Key specifications

• Product Type: D-Sub Connector Hood
• Connector Pin Count: 15-pin
• Housing Material: Zinc Die-cast
• Surface Finish: Nickel-plated
• Shielding: EMC Shielded (EMI/RFI Protection)
• Strain Relief: Integrated
• Cable Entry Angle: Straight
• Cable Diameter Compatibility: 4 - 13 mm
• Mounting Type: Screw-on
• Fastening Screws: M3 (included)
• Compatibility: Standard D-Sub 15-pin connectors (HD15)
• Color: Silver / Metallic
• RoHS Compliant: Yes

Recommendations

For optimal performance, pair this hood with high-quality D-Sub connectors and cables. Ensure cable diameter is within the specified range for proper strain relief.
