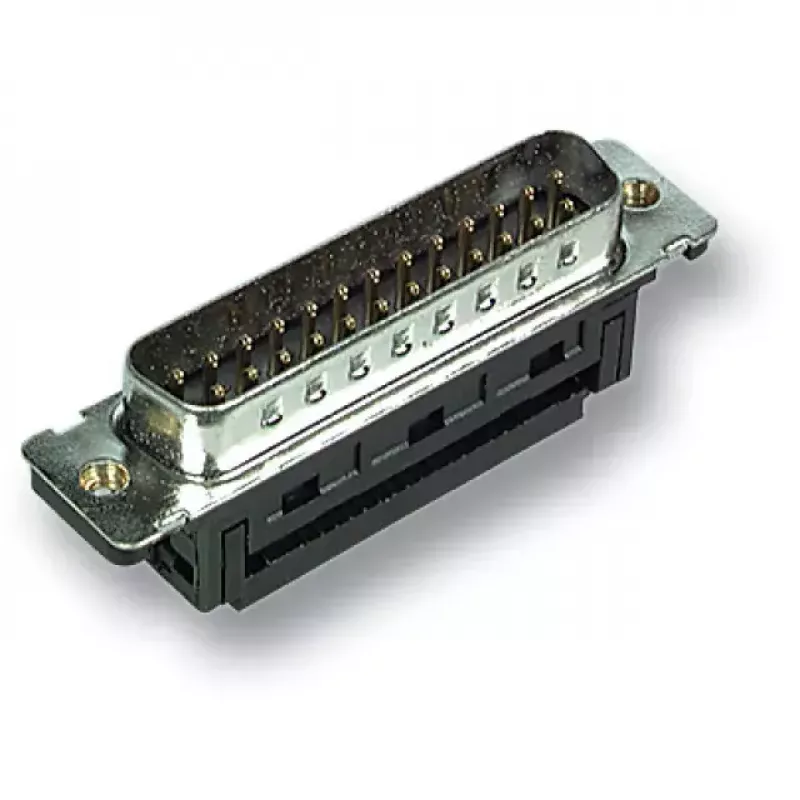

D-Sub wire connector EFB Elektronik 29067.1, metallic finish

EFB Elektronik 29067.1 is a D-Sub wire connector with a metallic finish intended to join or extend D-Sub cabling. It provides a standardized interface for serial and peripheral connections and is compatible with common D-Sub wiring. The connector is designed for electronics repair, prototyping and industrial cabling where a compact D-Sub connection is required.

Advantages

The metallic finish offers mechanical durability and reliable electrical contact. The connector meets quality level III and uses a UNC thread for secure fastening. It is rated for up to 50 mating cycles, supporting repeated assembly and maintenance operations.

Suitable for

• Electronics repair and replacement of damaged D-Sub connectors
• Prototyping and development of serial or peripheral interfaces
• Industrial cabling where a compact D-Sub connection is needed

Key specifications

• Manufacturer: EFB Elektronik
• MPN: 29067.1
• EAN: 4049759038489
• Connector type: D-Sub wire connector
• Finish: Metallic
• Quality level: III
• Thread: UNC
• Mating cycles: 50

How to use

Prepare and strip the wires according to the D-Sub wiring scheme you are using. Insert conductors into the connector contacts and secure the connector halves together using the UNC threaded fasteners. Ensure contacts align properly before final tightening and verify continuity after assembly.

Recommendations

Use the connector within its rated 50 mating cycles and avoid over-tightening the UNC screws to prevent thread damage. For reliable long-term connections, inspect contacts periodically and replace the connector if wear or corrosion is observed.
