D-Sub 25 pin crimp female to 2 x RJ45 female DeLOCK 66834

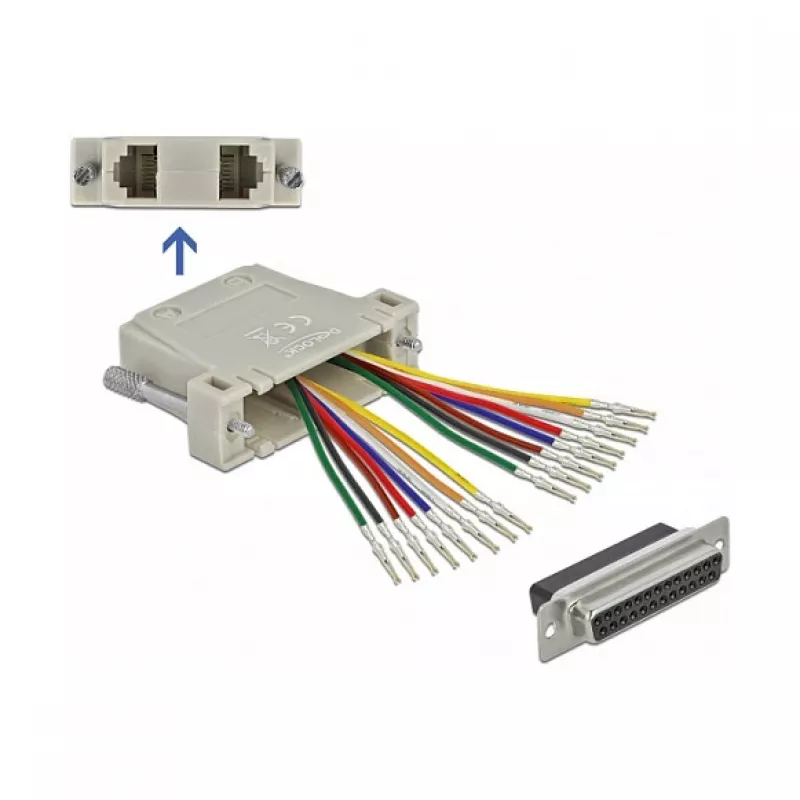

The DeLOCK D-Sub 25 pin crimp female to 2 x RJ45 female adapter (model 66834) enables connection between devices using a 25-pin D-Sub interface and two RJ45 network cables. The adapter is supplied with an assembly kit and features a beige housing. It allows flexible pin assignment by inserting and locking the ends of the network cables into the desired connector holes.

Advantages

The adapter supports individualized pin assignments through two RJ45 female ports, simplifying custom serial wiring. Its crimp-style D-Sub 25 female connector and included assembly kit make installation straightforward. The compact beige housing provides a standard, neutral appearance suitable for various equipment racks and installations.

Suitable for

• Connecting D-Sub 25-pin equipment to RJ45-wired serial cabling
• Custom serial interface wiring and pin reassignment
• Laboratory, workshop, or field installations requiring flexible connector assignment

Key specifications

• Manufacturer: DELOCK
• Model number (MPN): 66834
• EAN: 4043619668342

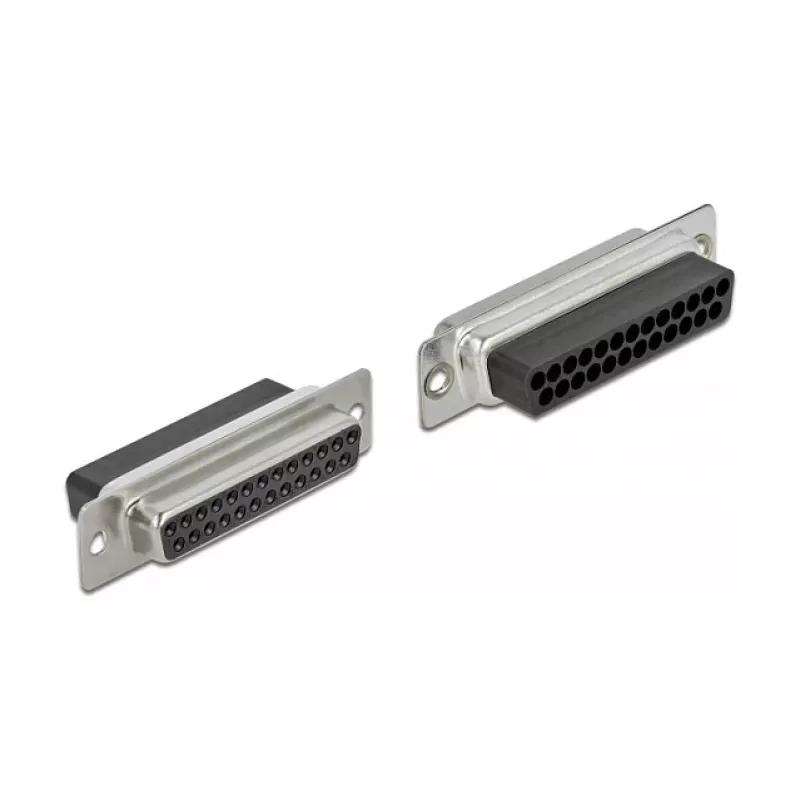

• Connector 1: D-Sub 25 pin (female, crimp)
• Connector 2: 2 x RJ45 (female)
• Product colour: Beige
• Category: Cable interface and gender adapters

How to use

Fit the crimped D-Sub 25 female connector to the device’s 25-pin port if required, then insert the ends of the RJ45 network cables into the chosen holes on the adapter. Ensure each cable end locks into the housing to secure the connection. Configure the pin assignments according to your wiring plan before finalizing the assembly.

Recommendations

Use suitable crimped RJ45 cable ends and verify pinout assignments with a multimeter or continuity tester before applying power or data signals. Store the adapter in a dry environment and avoid mechanical strain on the cables to maintain reliable connections.
