DeLOCK D-Sub 25 pin male to Terminal Block for DIN rail 51mm x 86mm x 30mm

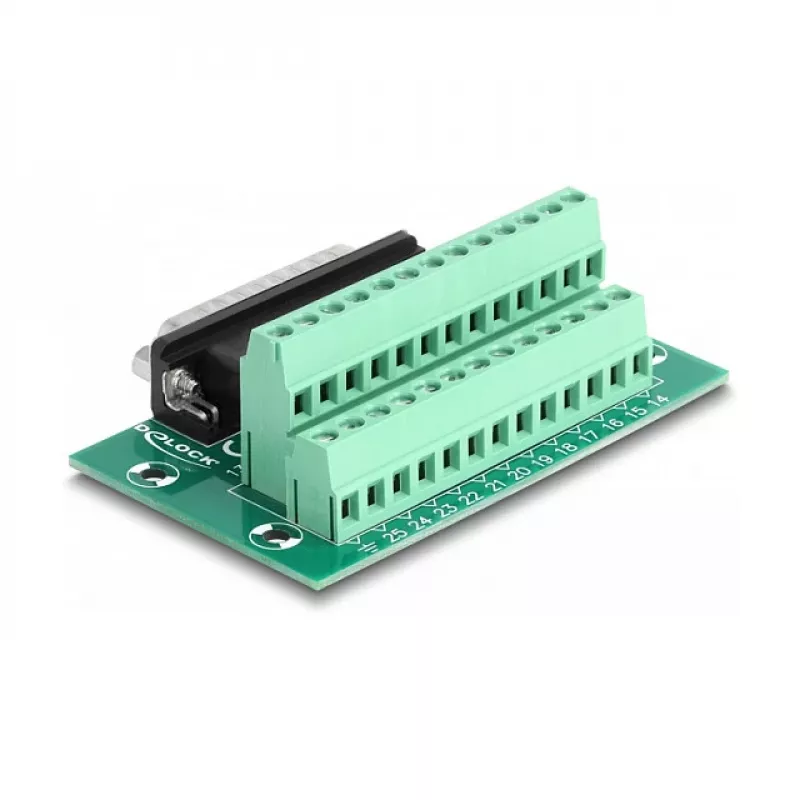

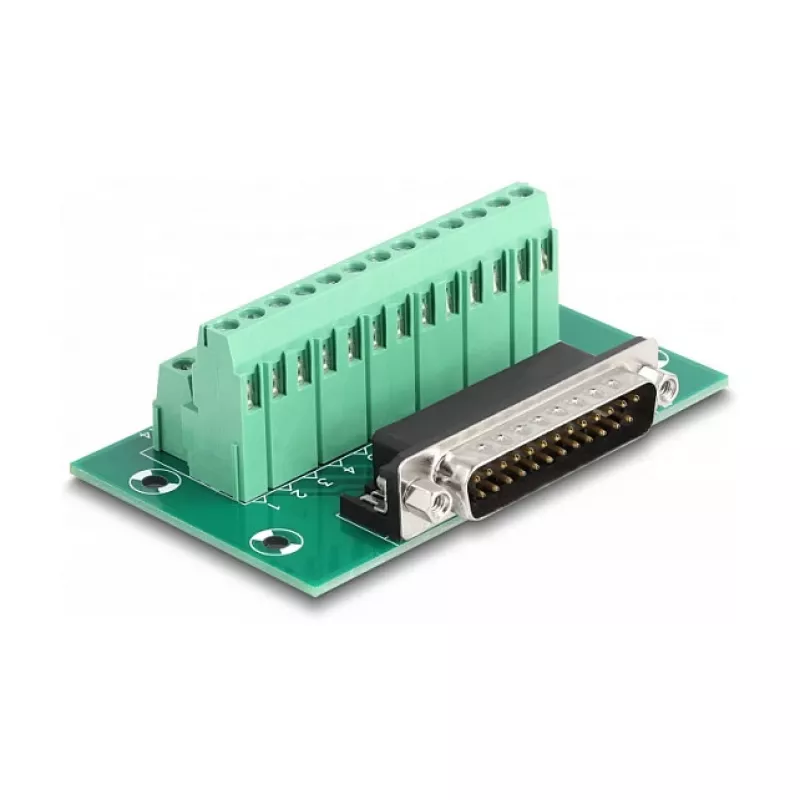

The DeLOCK D-Sub 25 pin male to Terminal Block is an adapter for connecting a 25-pin D-Sub male connector to a terminal block with wires that have stripped ends. It is designed for DIN rail mounting and has a compact footprint of 51 mm (W) × 86 mm (D) × 30 mm (H). The adapter is green in colour and intended for industrial and control-panel applications where a reliable, serviceable connection between D-Sub signals and individual wires is required.

Advantages

This adapter allows straightforward termination of individual conductors to a D-Sub 25 male interface without soldering. It supports secure mechanical mounting on standard 15 mm or 35 mm DIN rails using the supplied clips. The compact dimensions save panel space while providing clear access to each terminal for maintenance and wiring changes.

Suitable for

• Connecting D-Sub 25 signals to individual wires in control cabinets
• Industrial automation and PLC wiring where DIN rail mounting is used
• Prototyping or service tasks requiring easy wire replacement or inspection

Key specifications

• Type: D-Sub 25 pin male to terminal block adapter

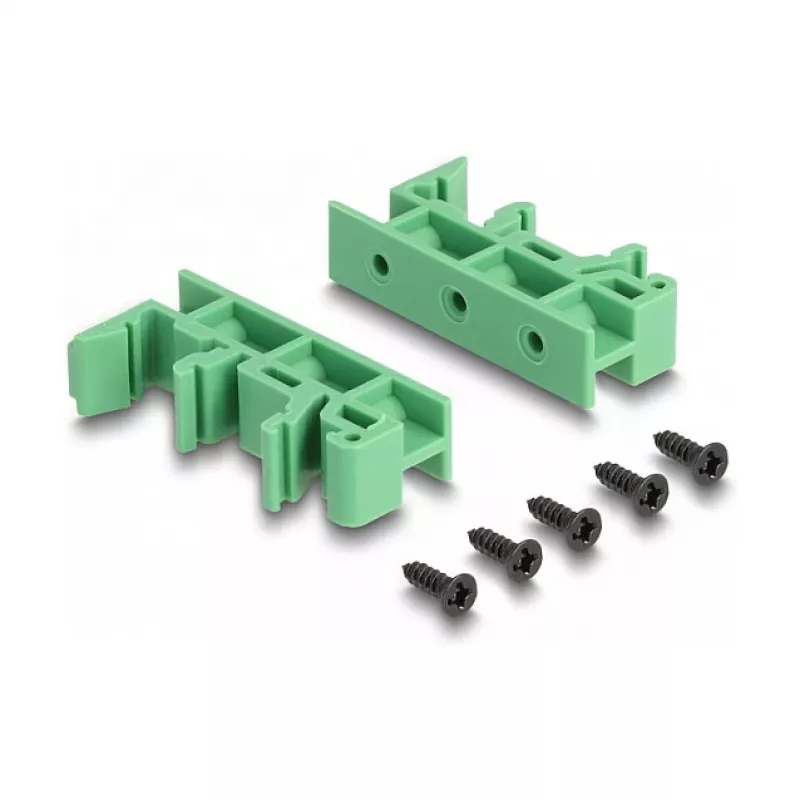

• Mounting: DIN rail (clips for 15 mm and 35 mm rails included)
• Dimensions: 51 mm × 86 mm × 30 mm (W × D × H)
• Colour: Green
• Brand: DELOCK, MPN: 66911, EAN: 4043619669110

How to use

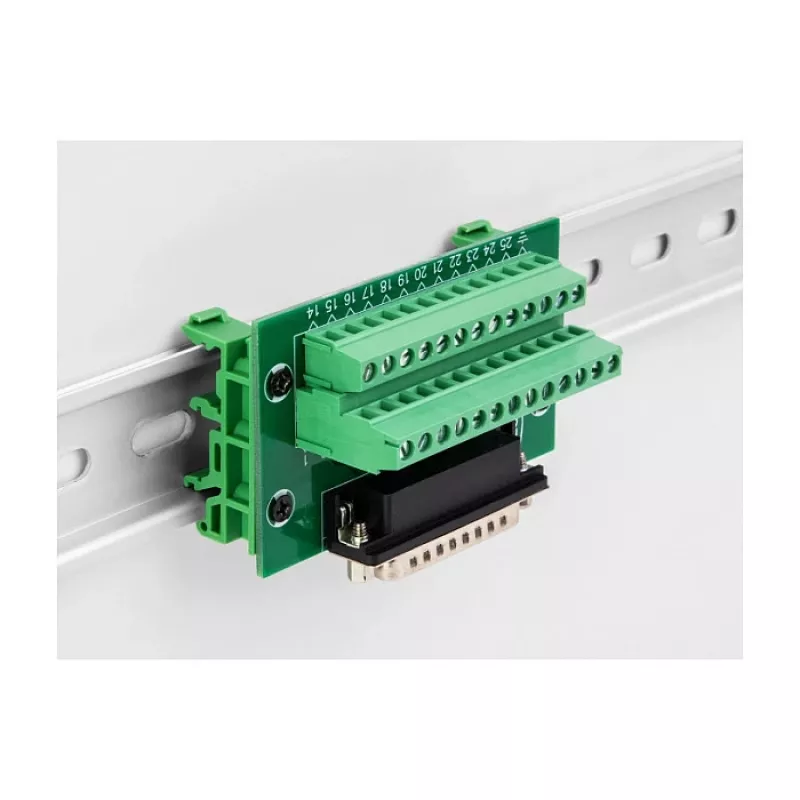

Attach the supplied clips to the adapter and snap it onto a compatible 15 mm or 35 mm DIN rail. Strip the ends of the wires to the recommended length, insert each conductor into the corresponding terminal on the adapter, and tighten the terminal screws to secure the connection. Plug the D-Sub 25 male connector into the matching female connector in your equipment.

Recommendations

Verify wire stripping length and screw torque according to your wiring standards. Ensure the DIN rail and surrounding enclosure provide adequate clearance and protection for signal and power wiring. Disconnect power before making or changing connections.
