Video Splitter HDMI ATEN VS1824KIT-AT-G 2x HDMI 4096x2160

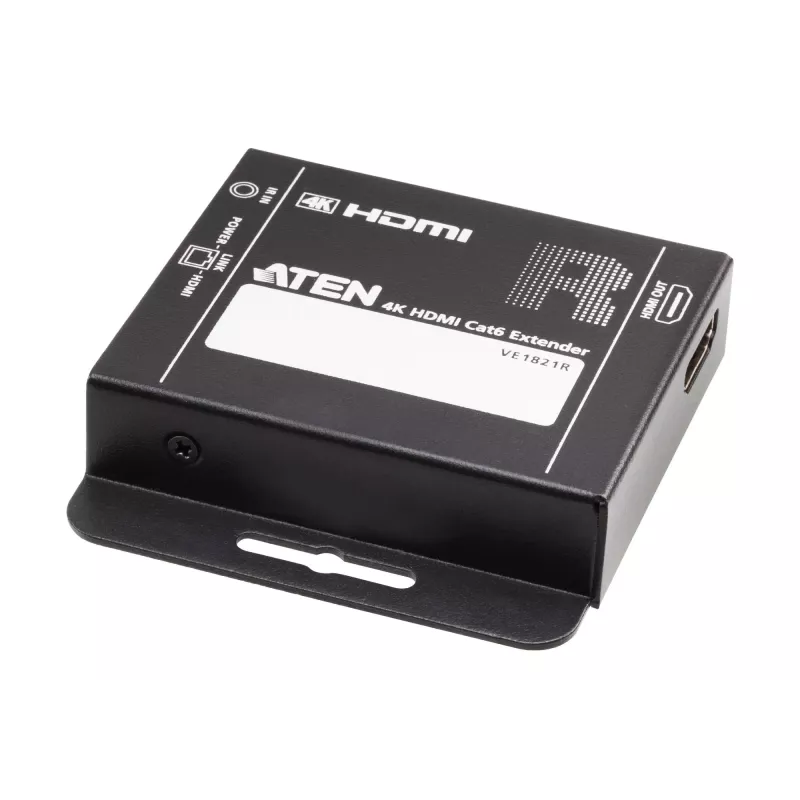

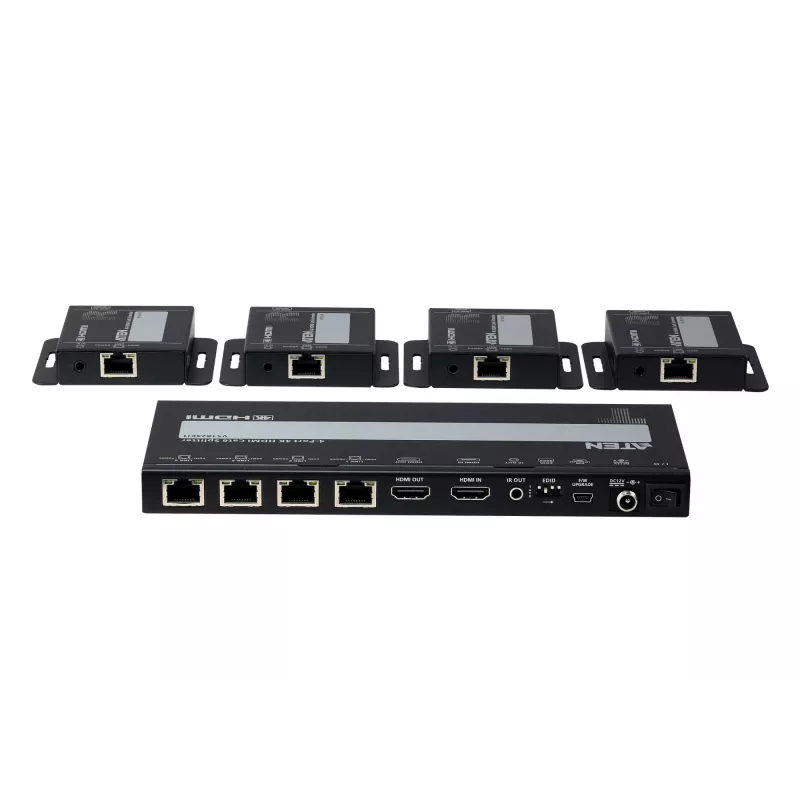

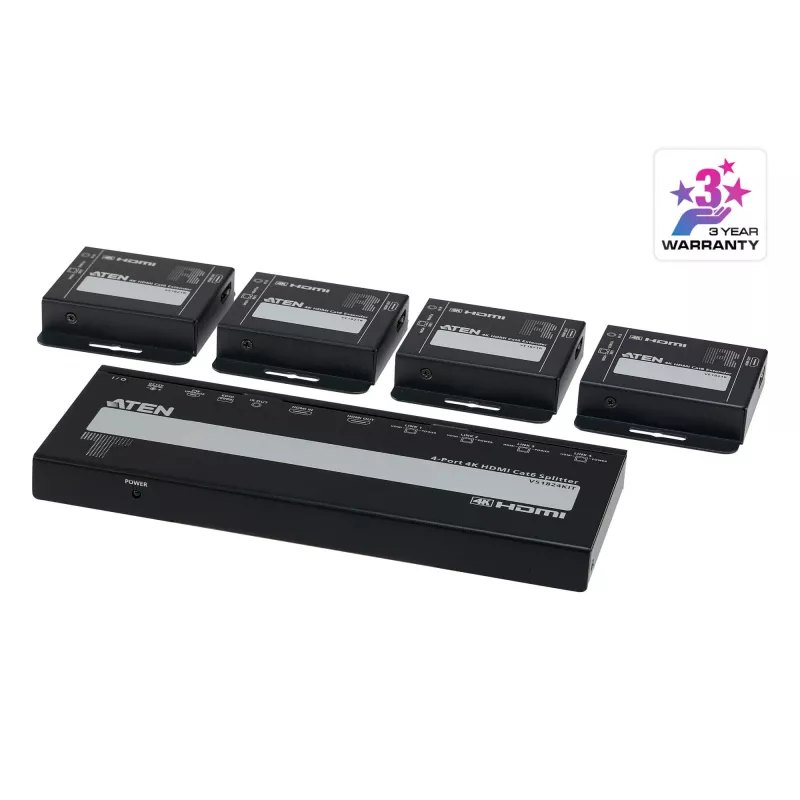

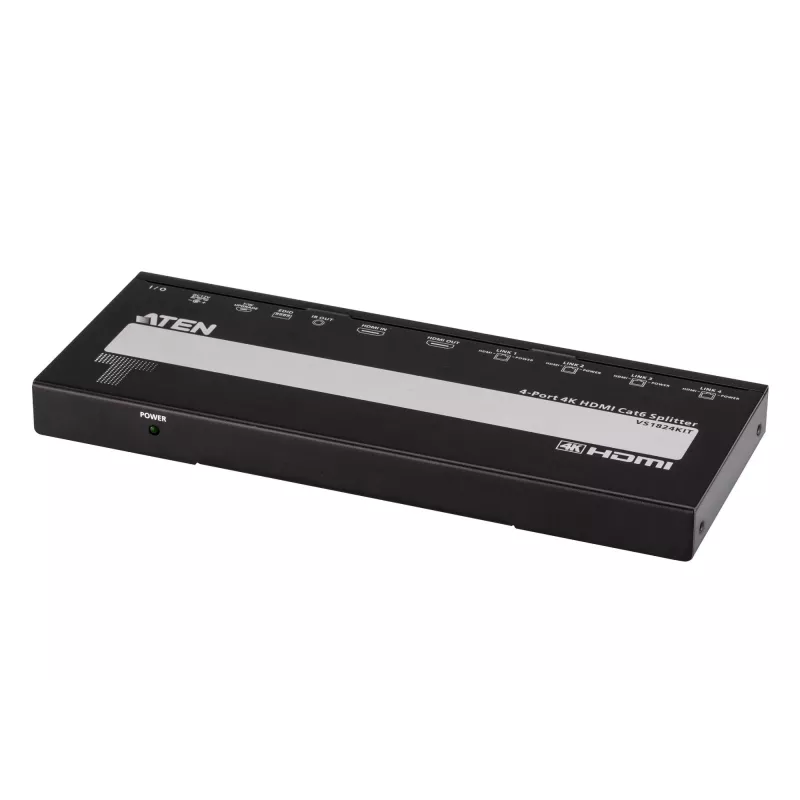

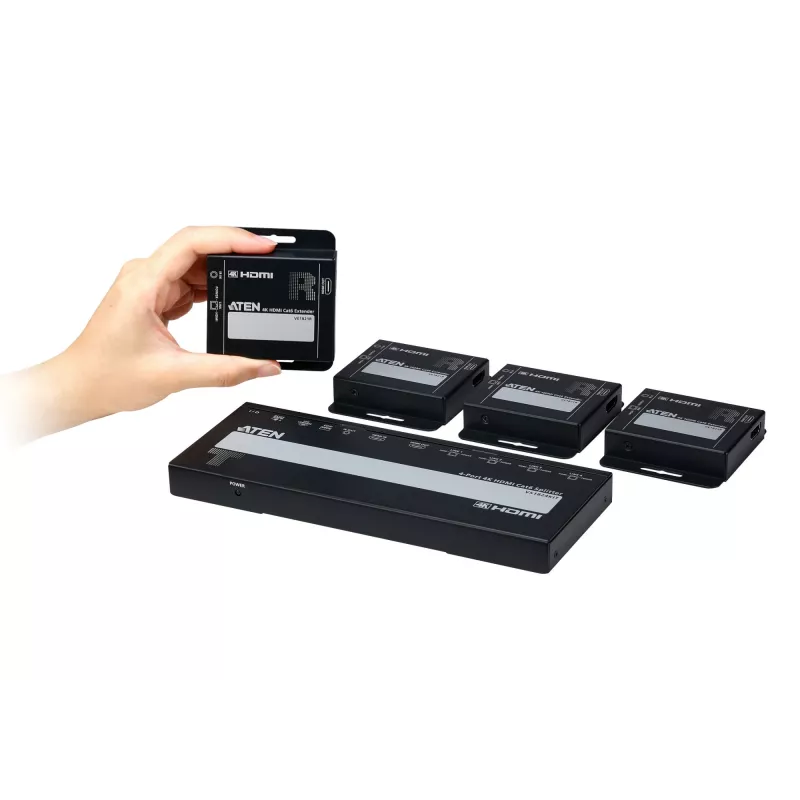

The ATEN VS1824KIT-AT-G is a video splitter kit that distributes a single HDMI source to four displays over a single Cat 6 cable, supporting up to 4K (4096 x 2160) at 30 Hz (4:4:4). The kit includes one splitter and four palm-sized receivers; the splitter provides Power over Cable (PoC) to power the receivers, so only the splitter requires an external power adapter. The splitter features a local HDMI output for content monitoring or cascading, an adjustable EDID switch to set output video resolutions and audio capabilities, and support for lossless digital audio formats including LPCM 7.1, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. Receivers have lightweight enclosures for flexible mounting and placement.

Advantages

The kit enables reliable long-distance HDMI distribution up to 40 m over a single Cat 6 cable while preserving high-resolution video and multichannel audio. PoC reduces cable clutter and eliminates the need for separate power supplies at each receiver. Built-in EDID control and a local HDMI output simplify system integration and monitoring. Included IR blaster and IR receiver cables allow remote control of the source from each display location. Plug-and-play operation requires no software for fast installation.

Suitable for

• Conference rooms and meeting facilities
• Retail displays and digital signage
• Showrooms and product demonstrations
• Home and commercial entertainment systems

Key specifications

• Model: VS1824KIT-AT-G (ATEN)
• Inputs/outputs: 1 HDMI input, 2x HDMI outputs on splitter plus 4 receiver outputs via Cat 6
• Maximum resolution: 4096 x 2160 @ 30 Hz (4:4:4)
• Transmission distance: up to 40 m over single Cat 6 cable
• Audio support: LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
• Power: splitter supplies receivers via Power over Cable (PoC); only splitter needs external adapter
• Housing colour: Black; durable metal housing for splitter

How to use

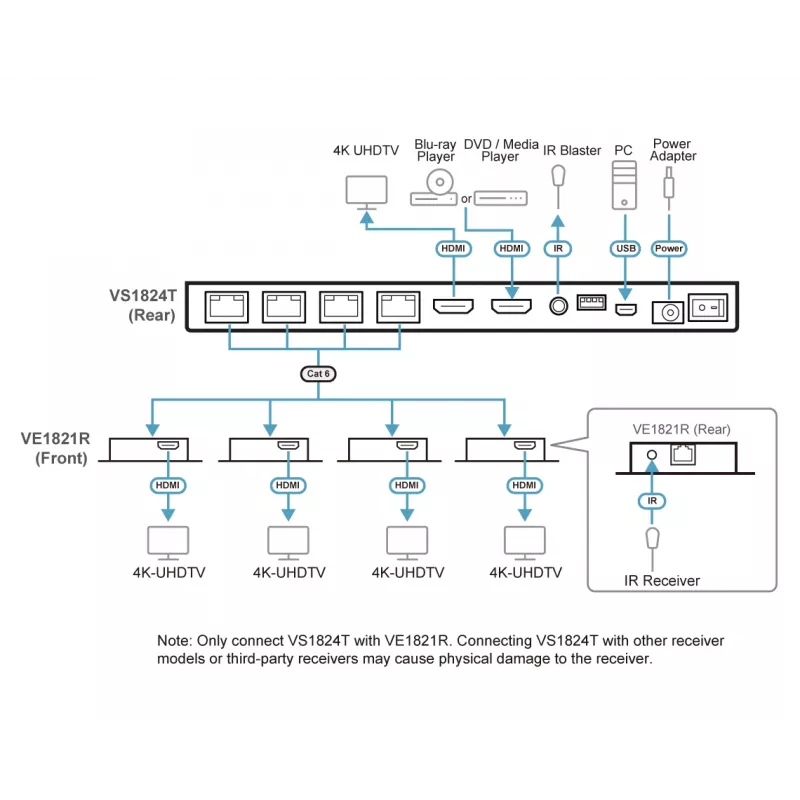

Connect the HDMI source to the splitter’s HDMI input and run a Cat 6 cable from the splitter to each receiver location. Connect each receiver to its display with an HDMI cable. If needed, use the splitter’s local HDMI output for monitoring or to cascade to another device. Configure EDID settings on the splitter to match the desired output resolution and audio format. Plug in the splitter’s power adapter to power the system; receivers will be powered over the Cat 6 cable. Use the included IR blaster and IR receiver cables to enable remote control of the source from receiver locations.

Recommendations

For best results, use high-quality Cat 6 cables of appropriate length and ensure displays and source device support the target resolution and audio formats. Keep cable runs within the specified 40 m distance and verify EDID settings when connecting displays with different capabilities.
