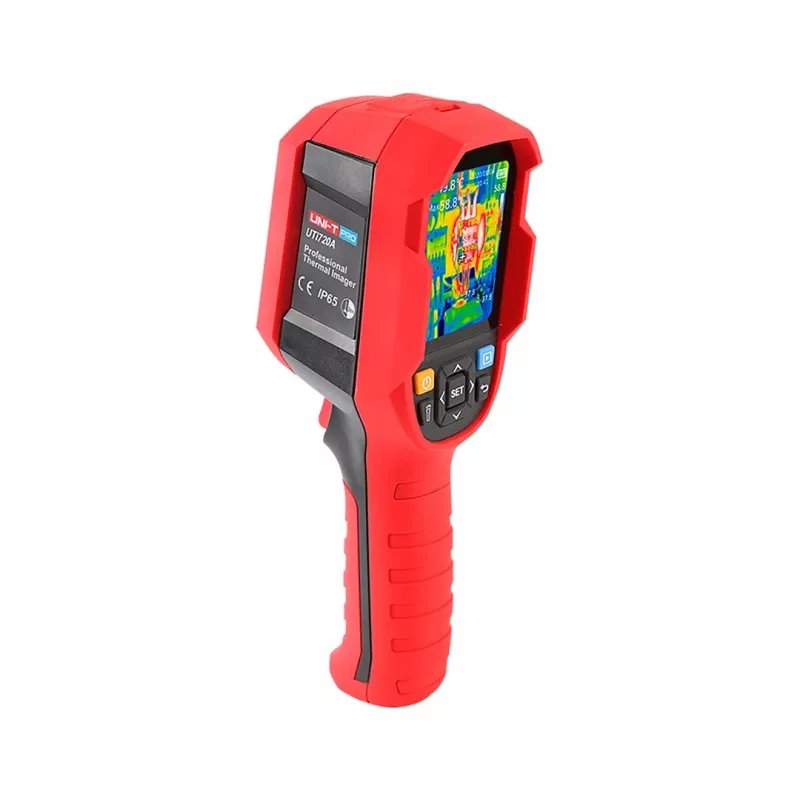

Uni-T UTi720A Thermal Imaging Camera

The Uni-T UTi720A is a professional handheld thermal imaging camera designed for electrical, mechanical, and building diagnostics. With a high-resolution 256x192 IR sensor and a wide temperature range from -20°C to 550°C, it delivers precise thermal measurements for preventive maintenance, fault detection, and energy auditing. The 3.5-inch IPS display provides clear image viewing, while multiple image modes (thermal, fusion, visible light) enhance analysis capabilities.

Advantages

High IR resolution (256x192) for detailed thermal patterns. Fast 25Hz frame rate captures moving targets without blur. IP54 rating and 2m drop test ensure durability in harsh environments. Long battery life (>6 hours) supports extended fieldwork. Built-in 5MP visible light camera and laser pointer aid in precise targeting.

Suitable for

• Electrical panel inspection and overheating detection
• Mechanical equipment monitoring (motors, bearings)
• Building envelope analysis (insulation, moisture)
• HVAC system diagnostics
• Industrial maintenance and quality control

Key specifications

• IR Resolution: 256 x 192 pixels
• Temperature Range: -20°C to 550°C (-4°F to 1022°F)
• Thermal Sensitivity (NETD): <50mK
• Accuracy: ±2°C or ±2%
• Field of View: 56° x 42°
• Display: 3.5-inch IPS, 640x480 pixels
• Visible Light Camera: 5 Megapixels
• Storage: 16GB eMMC internal
• Battery Life: >6 hours
• Connectivity: USB Type-C
• IP Rating: IP54
• Drop Test: 2 meters
• Color Palettes: 7 (Iron, Rainbow, White Hot, Black Hot, etc.)
• Laser Pointer: Yes
• LED Flashlight: Yes

Recommendations

For best results, use the UTi720A in well-lit indoor environments or outdoors with appropriate sun shielding. Regularly calibrate emissivity settings for accurate surface temperature readings. The device is ideal for professionals seeking a reliable, feature-rich thermal imager at a competitive price point.
