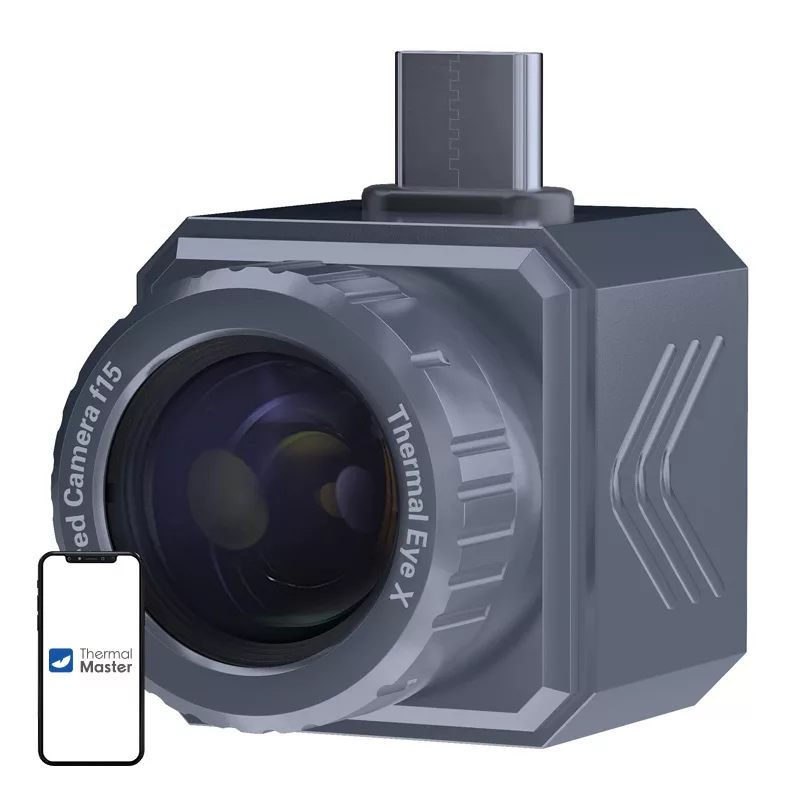

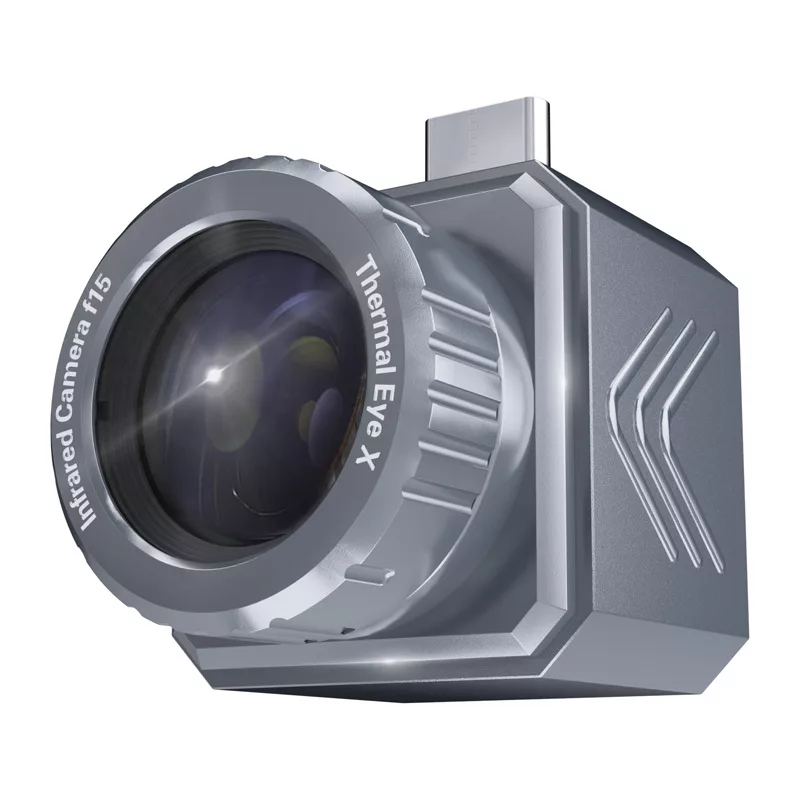

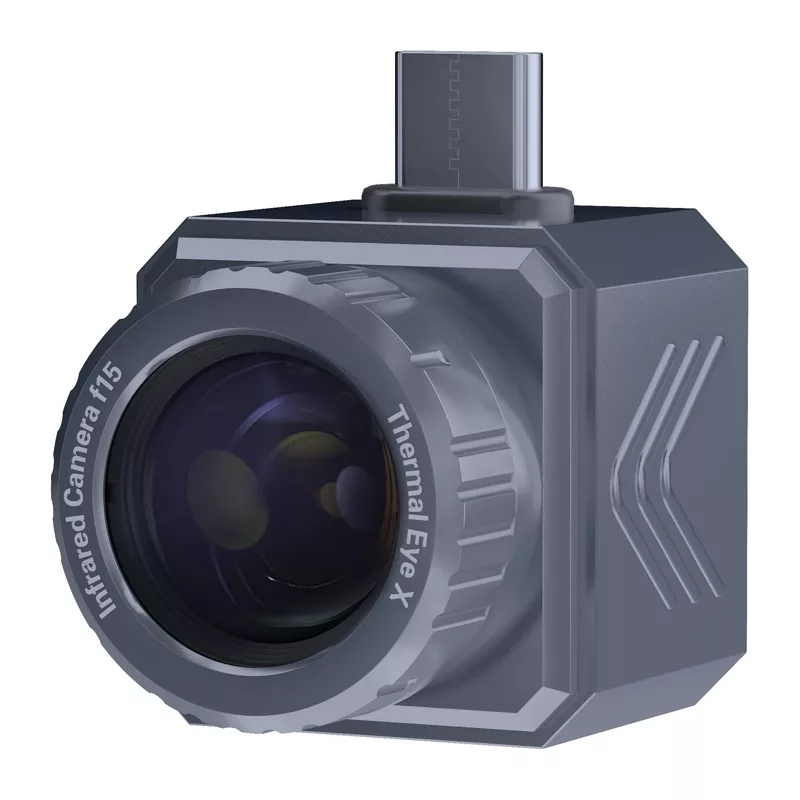

THERMAL MASTER X3 Thermal Imaging Camera

The THERMAL MASTER X3 is a high-performance handheld thermal imaging camera designed for professional diagnostics, electrical inspections, building maintenance, and HVAC applications. Featuring a 256x192 thermal resolution and a 5MP visible light camera, it delivers clear thermal and visual imagery with multiple display modes including Thermal, Visual, Fusion, and Picture-in-Picture (PIP). The device offers a wide temperature measurement range from -20°C to 550°C with an accuracy of ±2°C or ±2%, making it suitable for both low- and high-temperature targets. Its 3.5-inch LCD display with 640x480 resolution provides crisp image viewing, while the built-in 16GB internal memory and Wi-Fi connectivity enable easy data transfer and sharing. The rechargeable Li-ion battery supports up to 8 hours of continuous operation, and the IP54 rating ensures dust and splash resistance. With a 2-meter drop test rating, the X3 is built for rugged field use.

Advantages

The THERMAL MASTER X3 combines high thermal resolution with a visible light camera for accurate temperature measurement and image fusion. Its adjustable emissivity (0.01 to 1.00) allows precise readings on various surfaces. The device is lightweight and ergonomic, with a wrist strap included for secure handling. Wi-Fi and USB Type-C connectivity simplify data export and remote monitoring.

Suitable for

• Electrical panel and circuit inspection
• Building envelope and insulation analysis
• HVAC system diagnostics
• Mechanical equipment monitoring
• Fire prevention and safety checks

Key specifications

• Thermal Resolution: 256x192 pixels
• Temperature Range: -20°C to 550°C (-4°F to 1022°F)
• Accuracy: ±2°C or ±2%
• Field of View: 56° x 42°
• Display: 3.5-inch LCD, 640x480
• Storage: 16 GB internal memory
• Battery Life: Up to 8 hours
• IP Rating: IP54
• Drop Test: 2 meters
• Connectivity: USB Type-C, Wi-Fi

Recommendations

For best results, calibrate the camera before first use and adjust emissivity according to the target surface. Use the included manual for detailed operation instructions. The device is not intended for medical or forensic applications.
