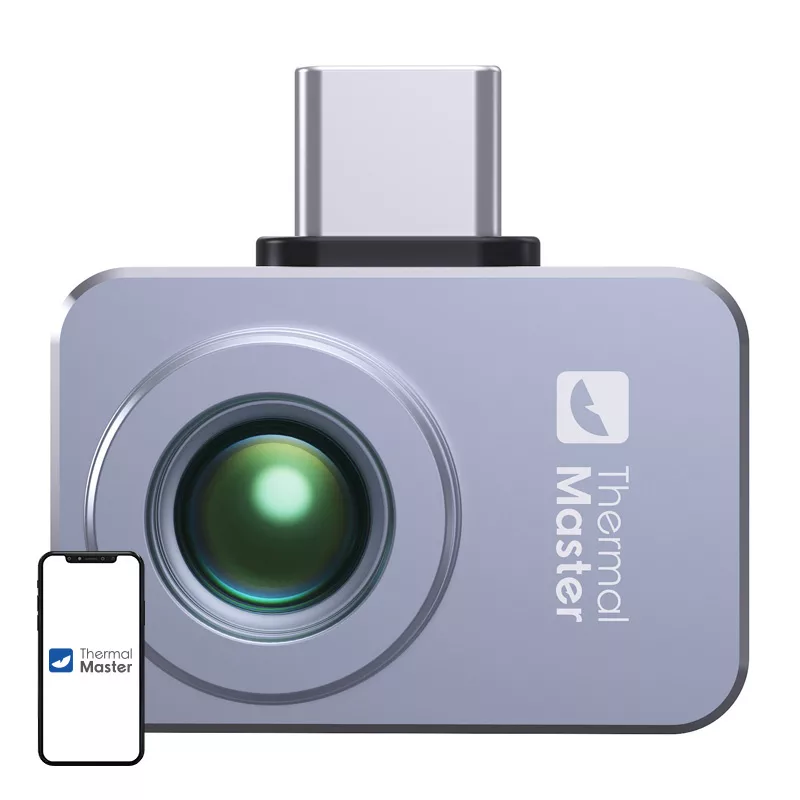

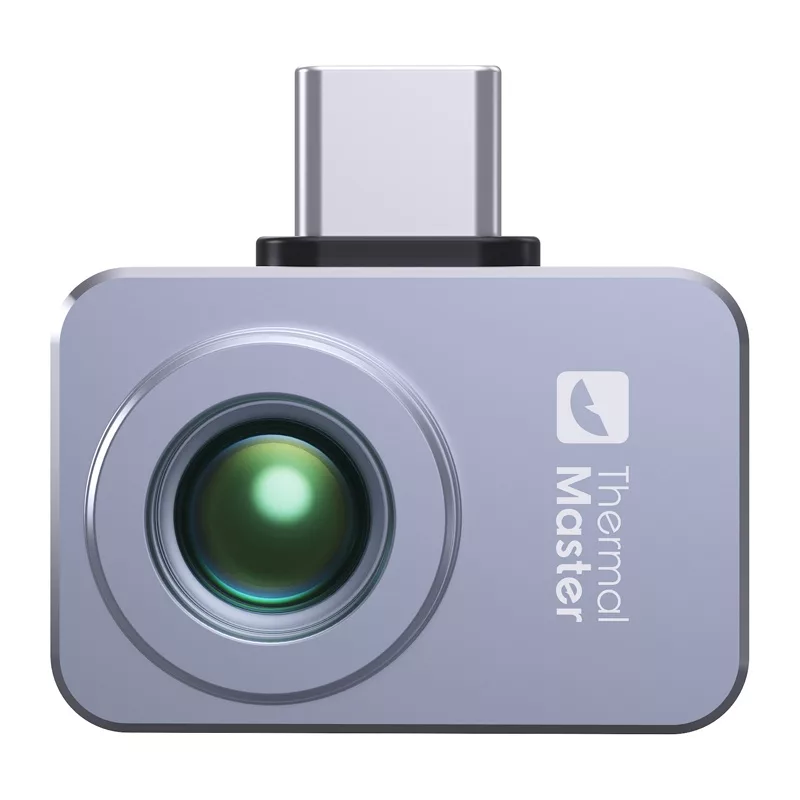

THERMAL MASTER P2 Pro USB-C Mini Thermal Camera

The THERMAL MASTER P2 Pro is a compact USB-C thermal camera module designed for Android smartphones with OTG support. It delivers high-resolution thermal imaging with a 256x192 sensor, 12μm pixel pitch, and a wide temperature measurement range from -20°C to 550°C. Ideal for building inspection, electrical maintenance, HVAC, and DIY troubleshooting, this pocket-sized tool turns your smartphone into a professional thermal imager.

Advantages

Ultra-portable aluminum alloy housing (27x18x9mm) plugs directly into USB-C port. Features 6 color palettes, adjustable emissivity, and multiple measurement modes (spot, line, area). Low power consumption (<350mW) ensures extended use without draining your phone battery.

Suitable for

• Building diagnostics and insulation inspection
• Electrical panel and circuit board analysis
• HVAC system troubleshooting
• Automotive maintenance and leak detection
• Outdoor and wildlife observation

Key specifications

• Thermal Resolution: 256 x 192 pixels
• Temperature Range: -20°C to 150°C (Low Gain), 100°C to 550°C (High Gain)
• Accuracy: ±2°C or ±2%
• Field of View: 56° x 42°
• Frame Rate: 25 Hz
• Interface: USB Type-C
• Digital Zoom: 1x, 2x, 4x
• Color Palettes: White Hot, Black Hot, Iron, Rainbow, Red Hot, Cold Blue
• Emissivity Adjustment: 0.01 to 1.00
• Material: Aluminum Alloy
• Dimensions: 27mm x 18mm x 9mm

Recommendations

For best results, use with the official THERMAL MASTER app available on Google Play. Ensure your Android device supports USB OTG. The P2 Pro is not compatible with iOS devices.
