Thermal paste Noctua NT-H1 3.5g AM5 Edition Density 2.49 g/cm³

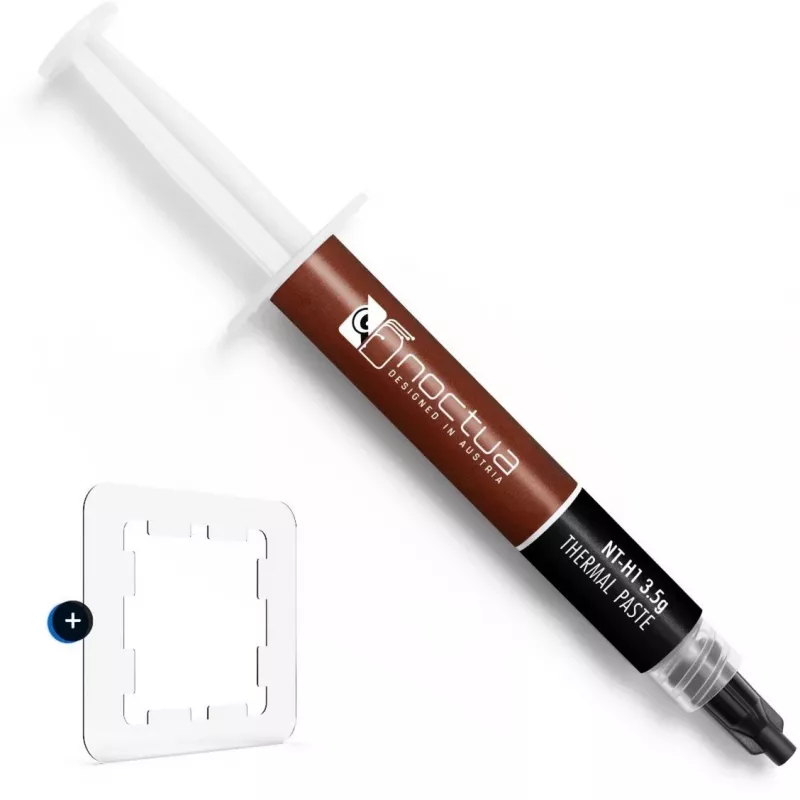

Noctua NT-H1 3.5g AM5 Edition is a hybrid thermal compound for efficient heat transfer between CPU/GPU heatspreaders and coolers. This AM5 edition includes the NA-TPG1 thermal paste guard to prevent paste build-up in the cut-outs of AMD AM5 CPU heatspreaders. The paste is grey, supplied as 3.5 g (1.4 ml) with a density of 2.49 g/cm³ and is suitable for both air- and water-based cooling solutions.

Advantages

NT-H1 has an established track record, having earned numerous awards and recommendations from international hardware publications. It offers reliable thermal conductivity, easy application, long-term stability and compatibility with a wide range of cooling setups. The AM5-specific paste guard helps keep the processor contact surface clean by reducing residue in heatspreader cut-outs.

Suitable for

• Thermal interface for desktop CPUs (including AMD AM5)
• Thermal interface for GPUs and other chips requiring paste
• Air-cooled systems and liquid cooling loops
• Overclocking and silent/low-noise PC builds

Key specifications

• Manufacturer: Noctua
• Model: NT-H1 3.5g AM5 Edition (MPN: NT-H1-3.5-AM5)
• Net weight / volume: 3.5 g (1.4 ml)
• Density: 2.49 g/cm³
• Colour: Grey
• Operating temperature range: -50 to 110 °C
• EAN: 9010018201505

How to use

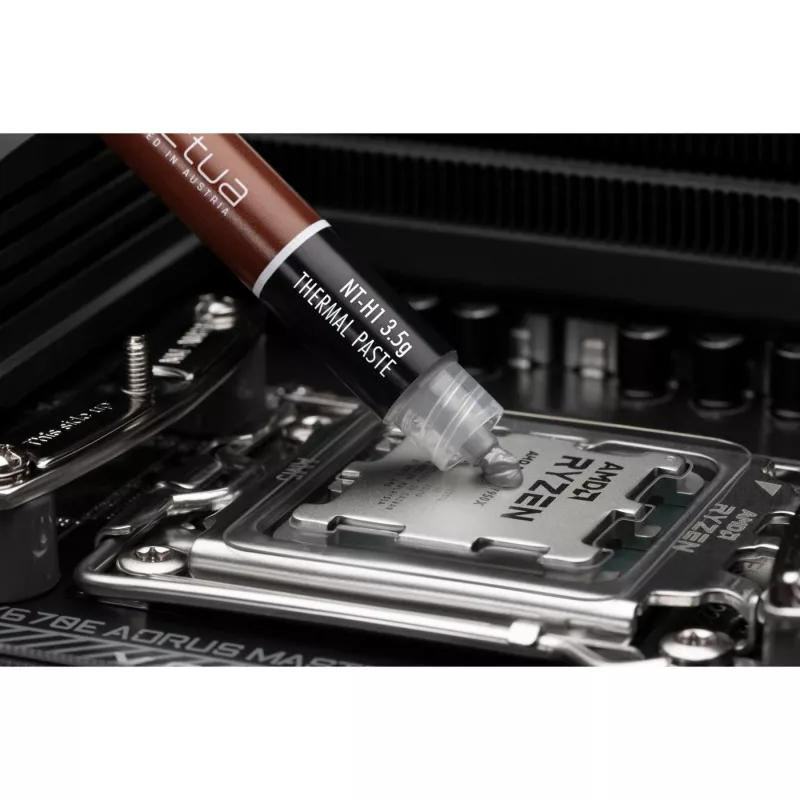

Clean the CPU/GPU heatspreader and cooler contact surface with isopropyl alcohol and a lint-free cloth. Apply a small, pea-sized amount of NT-H1 to the centre of the heatspreader, or follow your cooler manufacturer's spreading recommendation. Mount the cooler evenly and secure it according to the cooler instructions to spread the compound and achieve full contact. Remove and reapply paste when replacing the cooler or if thermal performance degrades.

Recommendations

Use the included NA-TPG1 paste guard when installing on AMD AM5 processors to minimise paste ingress into heatspreader cut-outs. Store the thermal paste at room temperature away from direct sunlight and tightly cap the syringe after use to preserve long-term stability.
