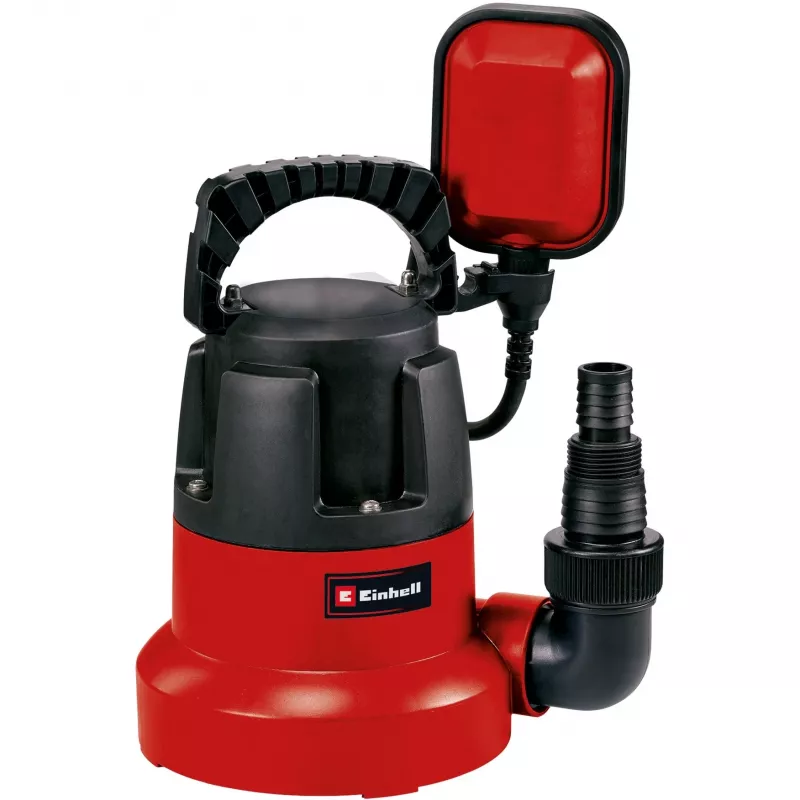

Submersible Pump Einhell GC-SP 3580 LL

The Einhell GC-SP 3580 LL submersible pump is a compact, high-performance clean water pump for domestic and garden use. Rated at 350 W, it delivers up to 8,000 L/h and is designed for tasks such as emptying swimming pools, rain barrels and flooded cellars. The pump starts from a water level of just 8 mm and can reduce the residual water on a flat surface to approximately 1 mm. Built with a high-quality mechanical seal and robust components, it is suitable for intensive, prolonged applications and for operation at depths up to 7 m with a maximum delivery head of 7.5 m.

Advantages

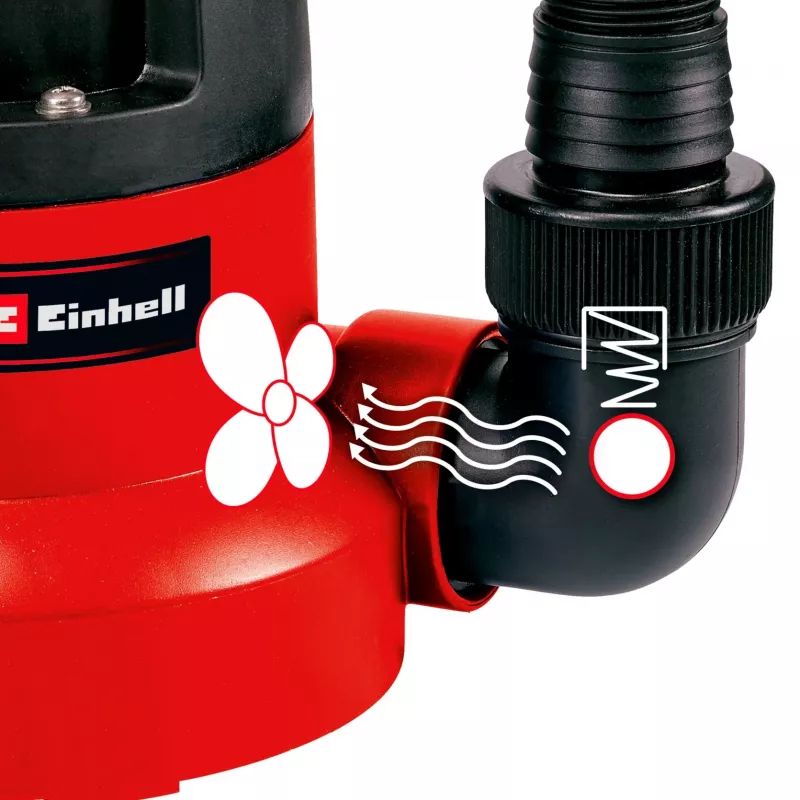

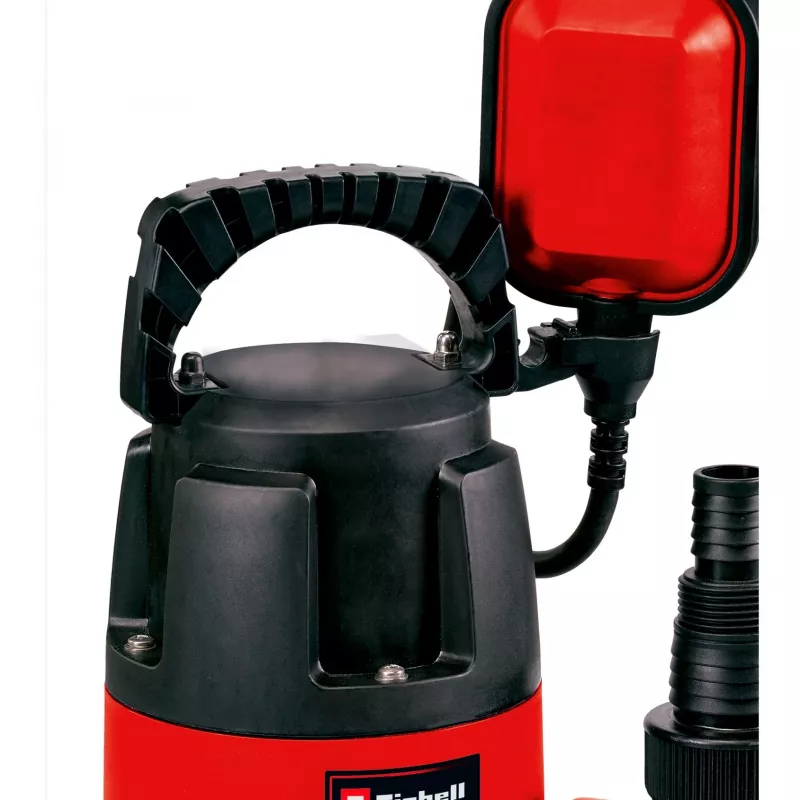

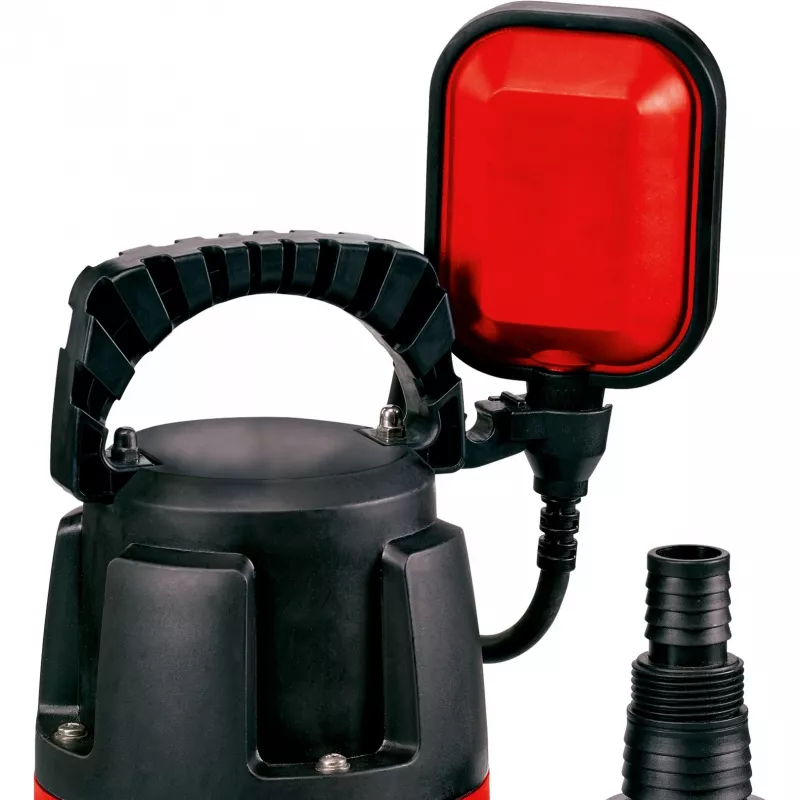

The GC-SP 3580 LL combines a high flow rate with the ability to operate in very shallow water, allowing fast drainage and near-dry results on flat surfaces. It includes an infinitely variable float switch for automatic on/off control, an integrated non-return valve to prevent backflow, a sturdy carry handle and a cable rewind for convenient transport and storage. A range of hose and thread connectors (25/32/33.3 mm and G1½" angled connector) increases installation flexibility.

Suitable for

• Emptying swimming pools and paddling pools
• Draining rain barrels and tanks
• Removing water from flooded cellars and garages
• Temporary garden irrigation or water transfer tasks

Key specifications

• Power: 350 W
• Maximum delivery rate: 8,000 L/h
• Minimum starting water level: 8 mm
• Residual water level on flat bottom: approx. 1 mm
• Maximum immersion depth: up to 7 m
• Maximum delivery head: 7.5 m

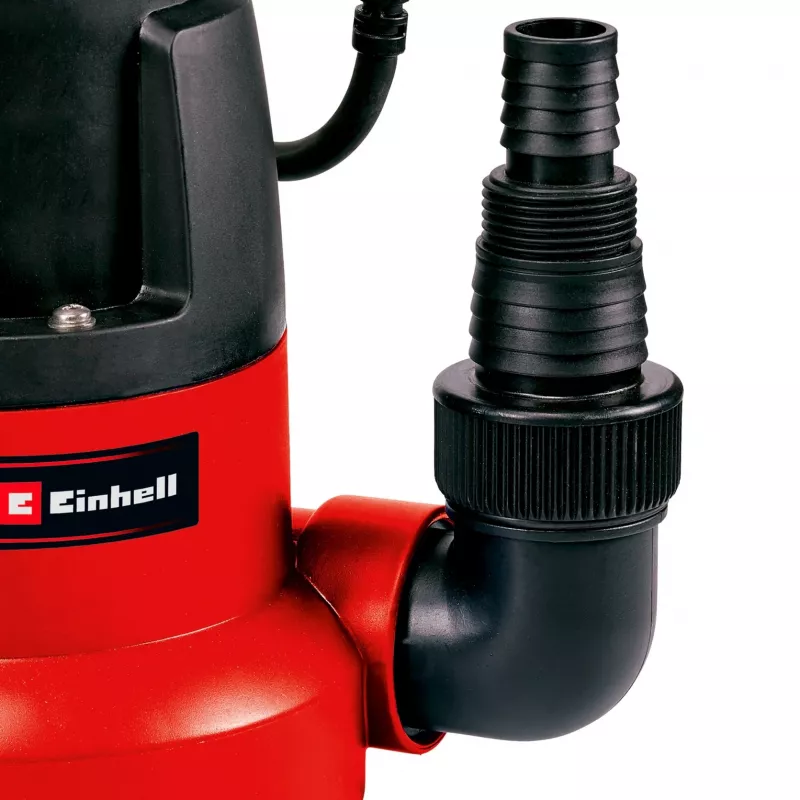

• Connectors: for 25/32 mm hoses and G1 (33.3 mm) male thread; 90° G1½" (47.8 mm) male thread
• Float switch: infinitely variable
• Weight: 3.13 kg

How to use

Place the pump on a flat, stable surface in the area to be drained and connect a suitable discharge hose or threaded connection. Adjust the float switch to the desired switching level to enable automatic operation as the water rises or falls. Connect the pump to a 230 V AC power supply and switch on. For very shallow water, position the pump so the impeller can start from the minimum 8 mm water depth; the pump will then drain down to about 1 mm on flat bottoms. After use, disconnect power, drain and wipe the pump dry before storage.

Recommendations

Use clean water only; avoid pumping aggressive, abrasive or heavily contaminated liquids. Regularly check the mechanical seal and connectors for wear. Store the pump in a dry place and use the integrated handle and cable rewind for safe transport and tidy storage.
